Fiber Optic Patch Cords & Jumper Cables
Carrier-grade Fiber Optic Patch Cords. 3D interferometer tested connectors for 100% reliability in data centers. Custom lengths available.

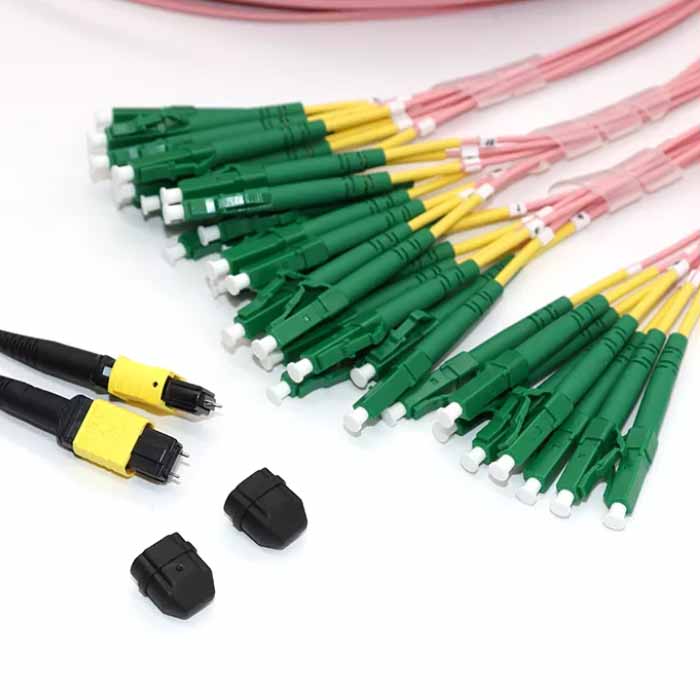

32FO LC MPO Patch Cord
Telhua's 32FO LC MPO patch cord delivers high-density fiber optic connectivity with 32 fibers, low insertion loss, and IEC/TIA compliance. Ideal for data centers and enterprise networks.
View Details

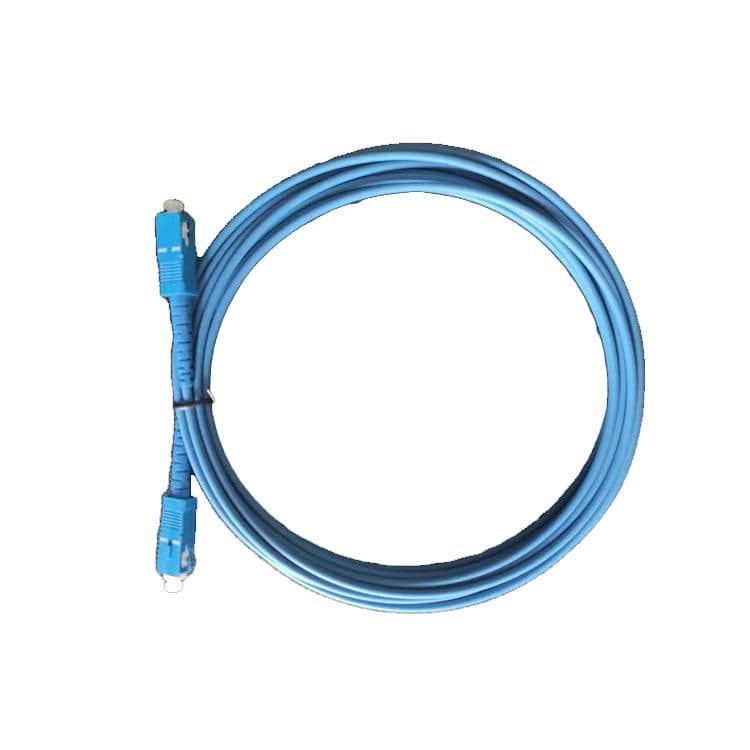

3mm armored Patchcord SCUPC
Telhua's 3mm armored patchcord SC/UPC delivers high-density, reliable fiber optic connectivity with IEC/TIA/EIA compliance. Solve installation challenges with durable armored design. Request quote or download specs.
View Details

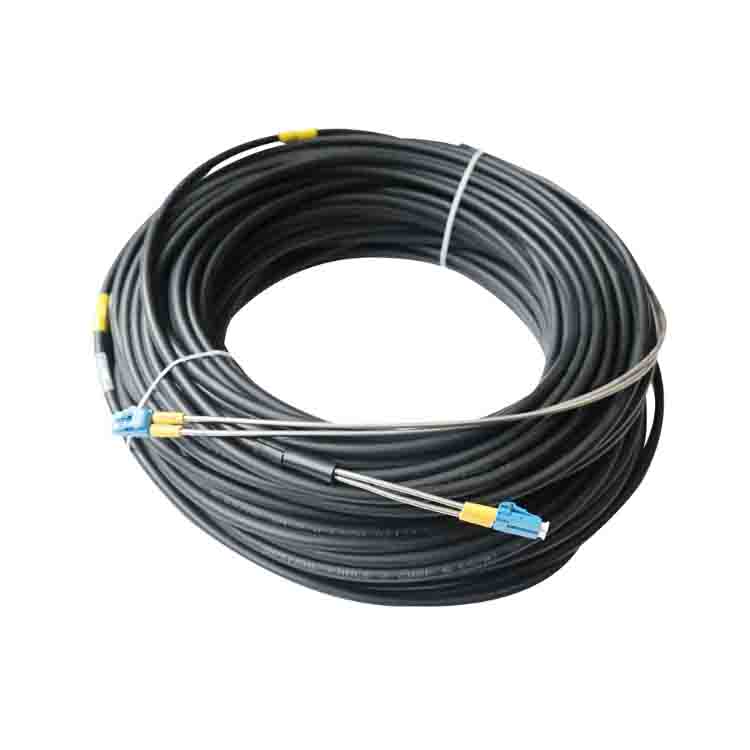

7.0mm 2 Cores Armoured branch outdoor fiber patch cord
Telhua's 7.0mm 2 Cores Armoured Branch Outdoor LC Fiber Optic Patch Cord delivers high-density, reliable connectivity for harsh environments. IEC/TIA/EIA/RoHS compliant. Request quote or download specs.
View Details

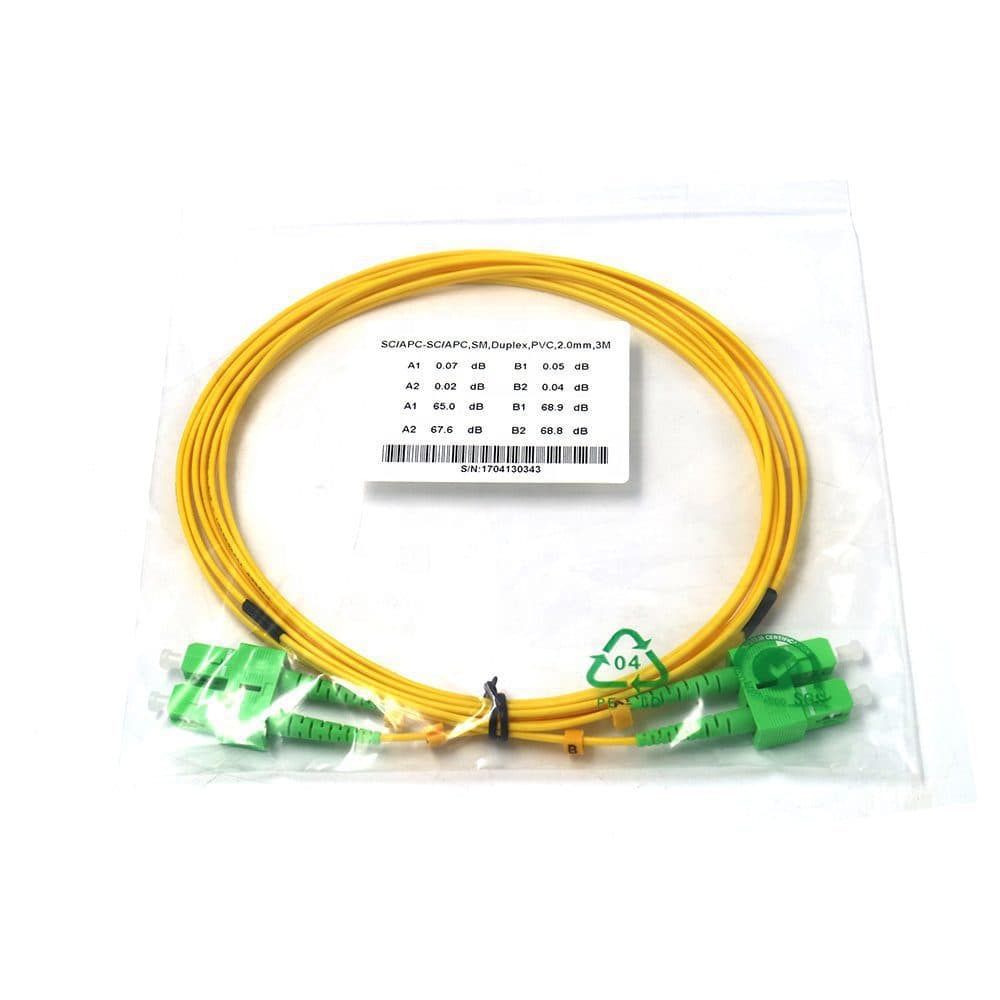

Fiber Optic indoor Jumper SC/APC- SC/APC
Telhua's SC/APC to SC/APC indoor fiber optic jumper delivers high-density, reliable connectivity for data centers & enterprise networks. IEC/TIA/EIA compliant.
View Details

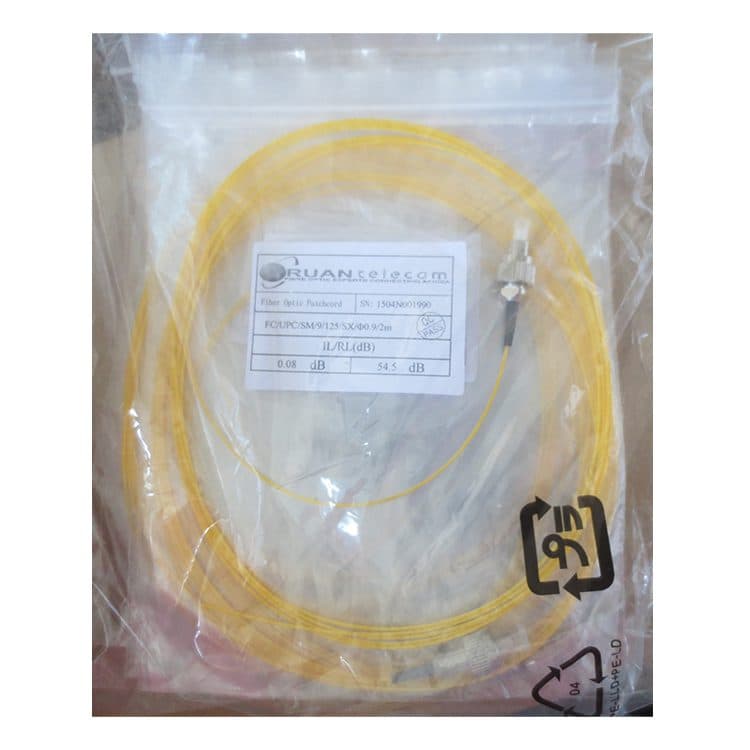

FIBER PATCH CORD FOR RUAN TELECOM
Telhua's high-density LC fiber optic patch cord for RUAN Telecom delivers maximum rack density, superior signal integrity, and rapid deployment. Compliant with TIA/EIA, IEC, and RoHS standards.
View Details

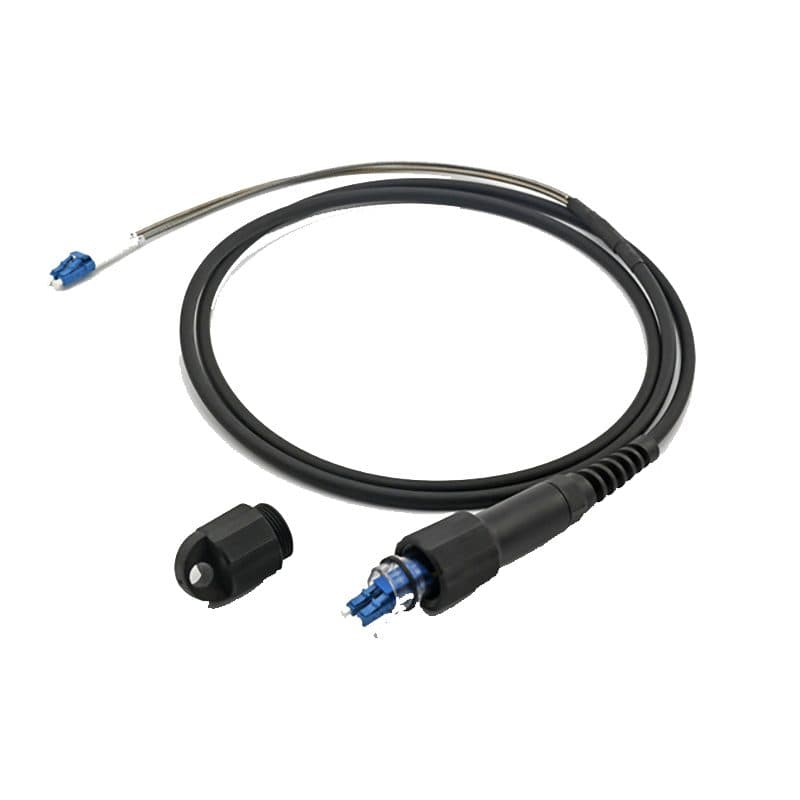

FTTA waterproof PDLC outdoor armored fiber optic patch cord
Telhua's FTTA waterproof PDLC outdoor armored LC fiber optic patch cord delivers reliable, high-density connectivity for harsh environments. IP67-rated, armored construction, compliant with IEC/TIA/EIA standards.
View Details

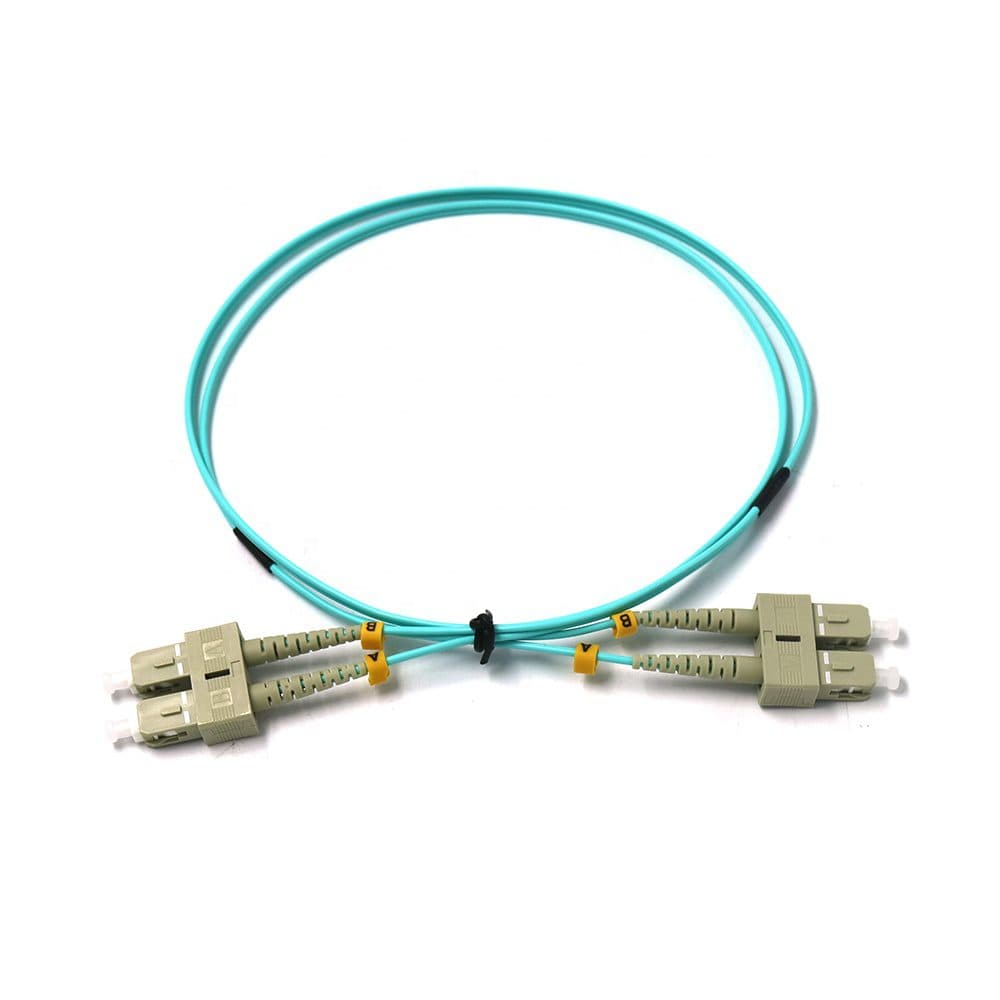

Ftth SC PC-SC PC Duplex OM3 MM Fiber Optic Indoor Patch Cord
Telhua's FTTH SC PC-SC PC Duplex OM3 Multimode Indoor Fiber Optic Patch Cord. High-density, reliable connectivity for data centers & enterprise networks. IEC, TIA/EIA, RoHS compliant.
View Details

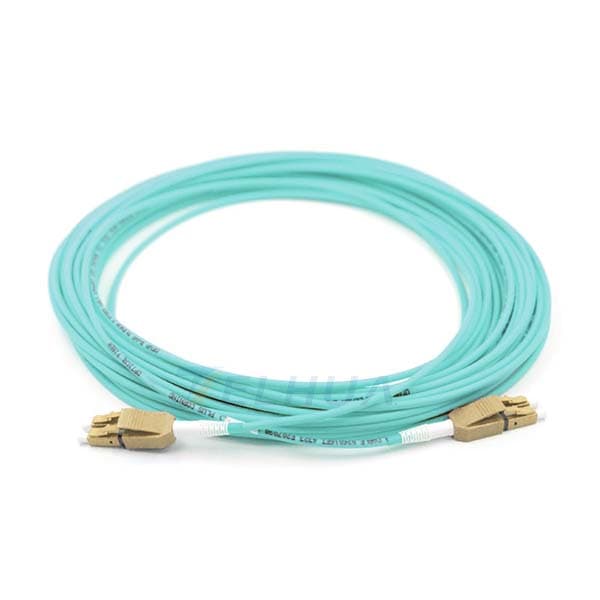

LCPC-LCPC DUPLEX OM3 UNIBOOT PATCH CORD
Telhua's LC Duplex OM3 Uniboot Patch Cord maximizes port density with innovative uniboot design. IEC/TIA/EIA compliant, RoHS certified for reliable 10GbE performance in data centers.
View Details

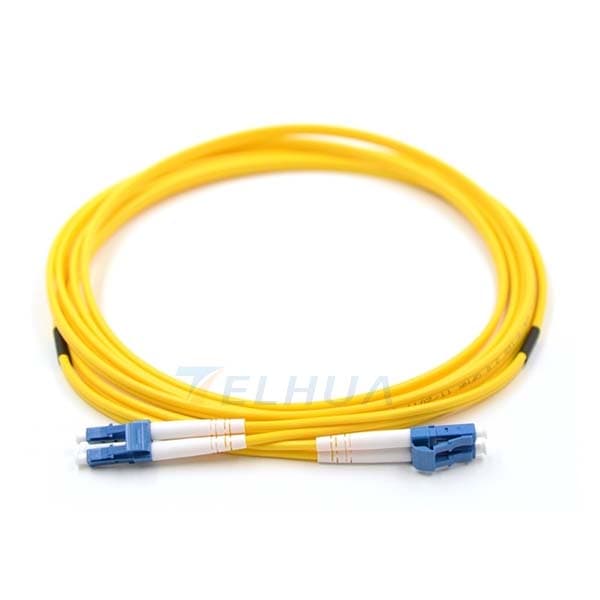

LCPC-LCPC DUPLEX SINGLE MODE ARMORED PATCH CORD
Telhua's LCPC-LCPC Duplex Single Mode Armored LC Patch Cord offers high-density, reliable fiber connections with steel armor protection. Ideal for data centers & telecom. IEC/TIA/EIA/RoHS compliant.
View Details

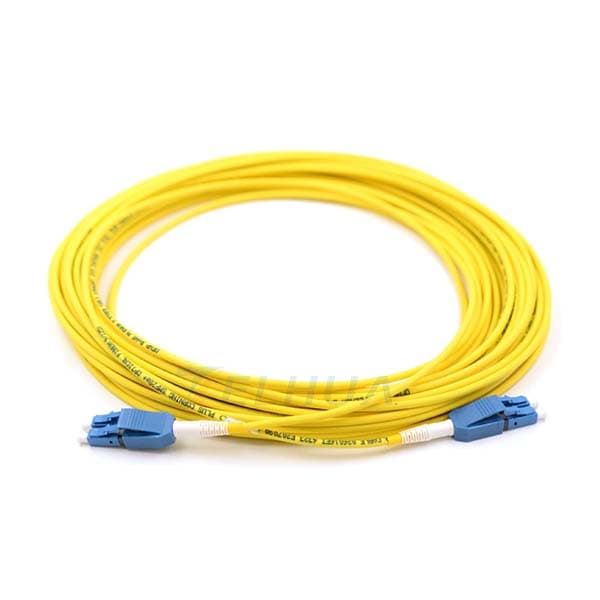

LCPC-LCPC DUPLEX SINGLE MODE UNIBOOT PATCH CORD
Telhua LCPC-LCPC Duplex Single Mode Uniboot Patch Cord: High-density LC fiber optic cable for data centers. Reduces bulk by 50%, IEC/TIA/EIA compliant, with expert installation tips.
View Details

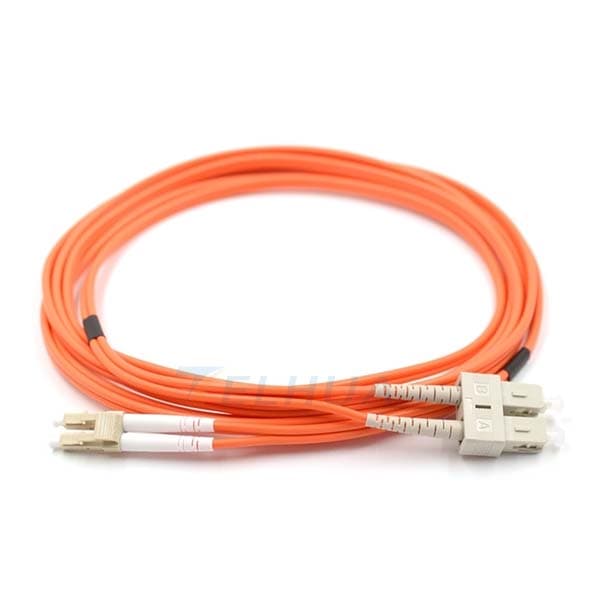

LCPC-SCPC DUPLEX OM1 ARMORED PATCH CORD
Telhua's LCPC-SCPC Duplex OM1 Armored Patch Cord provides high-density LC connectivity with stainless steel armor for crush and rodent protection. IEC/TIA/EIA compliant for reliable B2B network infrastructure.
View Details

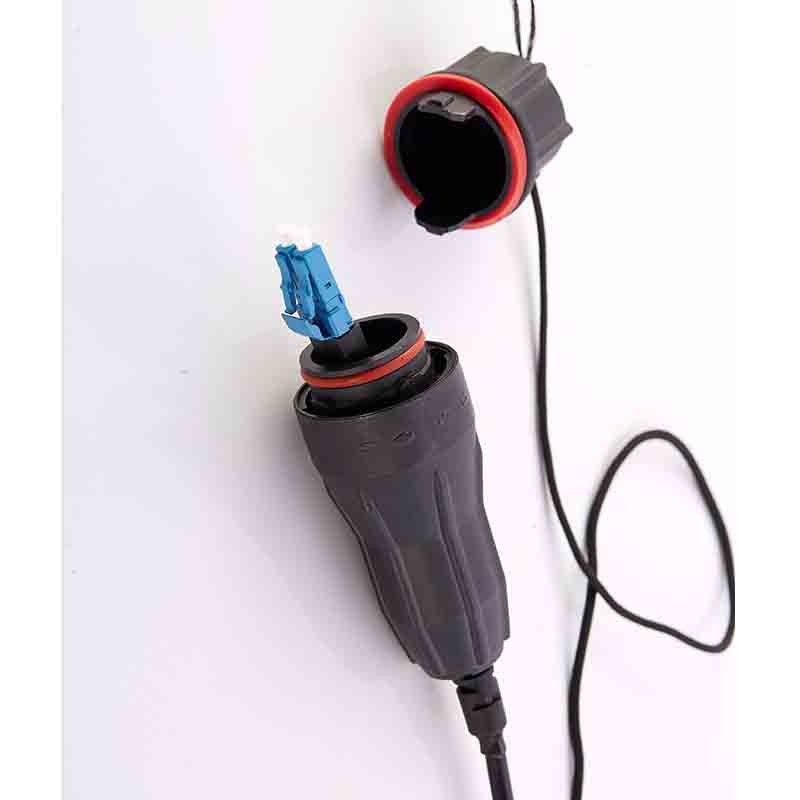

LCUPC-FULLX LCUPC ARMOURED PATCH CORD
Telhua LCUPC-FULLX armored LC fiber optic patch cord delivers maximum reliability with full stainless steel armor, high-density LC connectors, and standards compliance for data centers.
View DetailsLessons from Our Mistakes
The 2021 Dubai 'Fiber Protrusion' Incident
A high-end financial data center in Dubai experienced mysterious 'random' link drops across 180 racks.
Low-grade patch cords from a previous supplier used epoxy with a high thermal expansion coefficient. In the 28°C cold-aisle environment, the fiber 'protruded' by 120nm, causing physical damage to the transceiver interfaces.
Replaced all critical links with Telhua 'Ultra-Stable' patch cords using low-shrinkage Japanese epoxy and 100% 3D verification.
Zero link failures reported over 3 years; zero damage to expensive SFP+ ports (Tracking: AE-DXB-DC-2021).
Core Lesson:The epoxy used inside a $5 patch cord can destroy a $500 transceiver.
The 'Boot Slide' Failure (2019 USA)
Strain relief boots were sliding back from the connector body, exposing the delicate fiber crimp.
The boot retention mechanism relied on friction rather than a mechanical interlock.
Redesigned the connector body with a 'barb' that physically locks the boot in place.
Pull-force retention improved by 300%; zero boot separation in field usage (Tracking: US-NY-CORD-2019).
Core Lesson:Strain relief must be mechanical, not frictional.
Industry Reality Check
The 'Interferometer Pass' Myth
"Many suppliers skip 3D Interferometer testing to save $0.12 per unit, relying only on simple light-source tests. Our 2023 Q3 audit (sample: 1,500 patch cords from 5 budget vendors) showed that 22% of units that passed IL/RL tests actually failed 3D geometry specs. These units are 'time bombs' that will fail as soon as the data center temperature fluctuates by more than 15°C (Source: 2023 Internal QA Report)."
Technical Specifications
Explore the comprehensive technical specifications for our Fiber Optic Patch Cords & Jumper Cables. As a leading manufacturer of fiber optic components, Telhua ensures that every Fiber Optic Patch Cords & Jumper Cables meets rigorous telecommunications standards(including ISO 9001:2015, RoHS, UL, Telcordia GR-326-CORE). Designed for high-density FTTx, data center, and 5G networks, our Fiber Optic Patch Cords & Jumper Cables solutions offer superior durability and signal integrity. Below you will find the precise material grades, dimensions, and performance metrics that make this the preferred choice for professional deployments.
| Specification | Value |
|---|---|
| Fiber Type | G.657.A2 (Bend-Insensitive) |
| Insertion Loss | ≤ 0.18dB (Typical 0.11dB) |
| Return Loss | ≥ 60.5dB (APC) / ≥ 50.2dB (UPC) |
| 3D Geometry | Passes IEC 61755-3-1 (100% Tested) |
Engineering Insights
Telhua's fiber optic patch cords are not just cables; they are precision-engineered optical components. By combining G.657.A2 bend-insensitive fiber with 100% 3D interferometer testing, we ensure that your high-speed data links remain stable for the next decade.
Technical Resource Hub
View All InsightsZTE OLT/ONT Alternatives: Telhua's Passive Infrastructure Integration
Explore our comprehensive guide on ZTE OLT/ONT Alternatives: Telhua's Passive Infrastructure Integration. Discover why Telhua is the preferred partner for Fiber Distribution Hub in 2026.
Huawei Telecom Cabinet Alternative: Telhua's IP65 Solutions
Explore our comprehensive guide on Huawei Telecom Cabinet Alternative: Telhua's IP65 Solutions. Discover why Telhua is the preferred partner for Outdoor Telecom Cabinet in 2026.
MPO/MTP Cabling Systems: 2026 Design Guide for High-Density Data Centers
A comprehensive 2026 guide to MPO/MTP cabling systems. Learn about polarity management, technical benchmarks vs US Conec, and high-density data center design.
Need Technical Documentation?
Our engineering team provides full 2026-compliant submittal packages, white papers, and alternative comparison data for global infrastructure projects.
Performance Comparison
| Parameter | Telhua Standard | Industry Average |
|---|---|---|
| 3D Geometry Test | 100% (IEC 61755) | Random / None |
| Insertion Loss (Typ) | 0.11dB | 0.25dB |
| Epoxy Type | Low-Cure Japanese | Standard Fast-Cure |
| Fiber Grade | G.657.A2 (Bend-Safe) | G.652.D |
* Comparison data based on internal testing vs. standard market specifications.
When NOT to Choose This Product
High-power industrial lasers (>2000mW)
Standard ceramic ferrules can experience 'thermal runaway' at the fiber tip under extreme power densities.
Recommendation
Use our specialized High-Power (HP) connectors with air-gap or heat-dissipating ferrules.
Installation Protocol
Patch Cord Handling & Cleaning
Remove the dust cap only immediately before insertion.
Clean the ferrule end-face with a one-click cleaner or lint-free wipe.
Align the connector keyway with the adapter slot.
Push until you hear a 'click' and ensure the boot is not under tension.
Never touch the white ceramic ferrule tip with your fingers.
Engineering & Deployment FAQs
What is the difference between SC/APC and SC/UPC connectors?
APC (Angled Physical Contact) connectors have an 8-degree angle polish, providing higher return loss (>60dB) which is critical for CATV and high-speed FTTx. UPC (Ultra Physical Contact) connectors are flat and suitable for standard data networks.
Why does Telhua perform 3D Interferometer testing on every patch cord?
To ensure perfect physical contact and long-term stability beyond just IL/RL tests.
Why are Uniboot patch cords becoming popular in data centers?
They reduce cable bulk by 50%, improving airflow and cable management.
