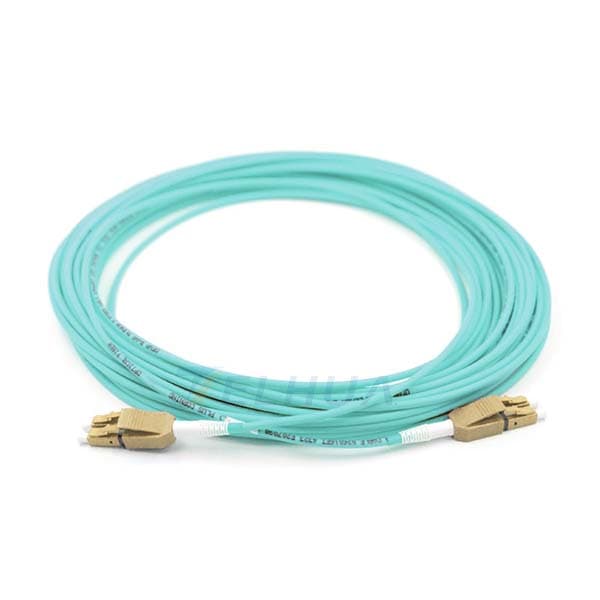

LCPC-LCPC DUPLEX OM3 UNIBOOT PATCH CORD
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
High-Density LC Duplex OM3 Uniboot Patch Cord
Telhua's LCPC-LCPC DUPLEX OM3 UNIBOOT PATCH CORD delivers superior performance for demanding data center and enterprise network applications. Engineered for maximum port density and reliability, this LC fiber optic patch cord features our innovative uniboot design that reduces cable bulk by up to 50% compared to traditional duplex connectors, enabling cleaner cable management and improved airflow in high-density environments.
Key Benefits for Network Professionals
- Space Optimization: Uniboot design consolidates two LC connectors into a single housing, dramatically increasing port density in patch panels and switches.
- Enhanced Reliability: Precision-mated ceramic ferrules and robust strain relief ensure consistent optical performance and mechanical durability.
- Rapid Deployment: Color-coded polarity reversal tabs and intuitive push-pull mechanism reduce installation time by up to 40%.
- Future-Proof Performance: OM3 50/125μm multimode fiber supports 10GbE up to 300 meters and is backward compatible with OM1/OM2 systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Type | LC Duplex Uniboot |
| Fiber Type | OM3 50/125μm Multimode |
| Insertion Loss | ≤0.3 dB typical, ≤0.5 dB maximum |
| Return Loss | ≥20 dB (multimode) |
| Operating Temperature | -20°C to +70°C |
| Cable Diameter | 2.0mm or 3.0mm options |
| Jacket Color | Aqua (standard), custom colors available |
| Standards Compliance | IEC 61754-20, TIA/EIA-604-10, RoHS compliant |
Telhua Engineer's Tip
For optimal performance in high-density applications, maintain a minimum bend radius of 15mm during installation. Our uniboot design incorporates a reinforced boot that protects against excessive bending at the connector interface—a common failure point in traditional LC duplex cables. When deploying in modular patch panels, utilize the built-in polarity reversal feature by simply rotating the connector 180 degrees, eliminating the need for separate A/B polarity cables and reducing inventory complexity.
Applications
- High-density data center interconnects
- Storage area networks (SAN)
- Enterprise backbone cabling
- Telecommunications infrastructure
- 10 Gigabit Ethernet networks
