Fiber Optic Patch Panels - Rack Mount & Sliding
High-density 1U/2U Fiber Optic Patch Panels (up to 96 fibers). Integrated splice trays & cable management. Optimize your rack space now.
19 inch 1U 48 Ports SC Duplex Adapter Sliding Patch Panel
Maximize rack density with Telhua's 1U 48-port SC duplex sliding fiber patch panel. Engineered for reliability, easy installation & full IEC/TIA compliance. Request a quote or download specs.
View Details

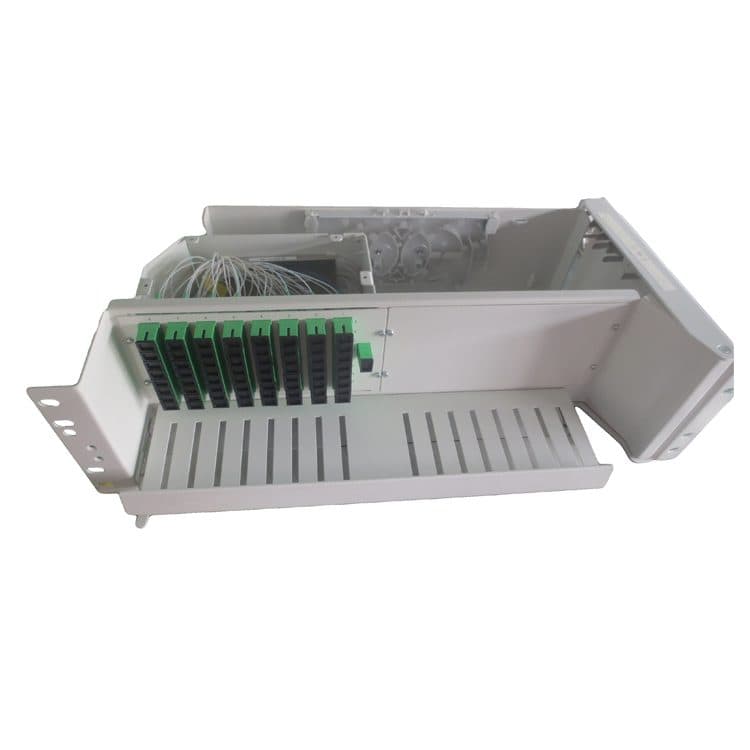

19inch 128 ports 3u swivel modular splitter patch panel
Discover Telhua's 19-inch 128-port 3U swivel modular splitter patch panel, designed for high-density fiber networks. Features easy access, modular flexibility, and compliance with IEC, TIA/EIA, and RoHS standards. Ideal for data centers and telecom applications.
View Details

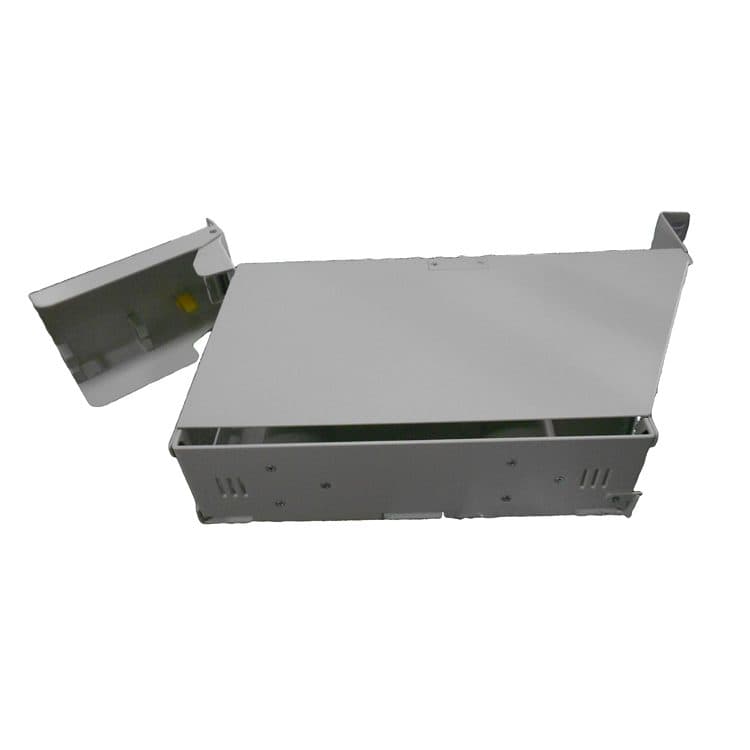

19inch 192 ports 3u swivel fiber optic lc patch panel
Maximize fiber density with Telhua's 19" 192-port 3U swivel LC fiber optic patch panel. Designed for high-capacity networks, it ensures reliability, easy installation, and compliance with IEC, TIA/EIA, and RoHS standards.
View Details

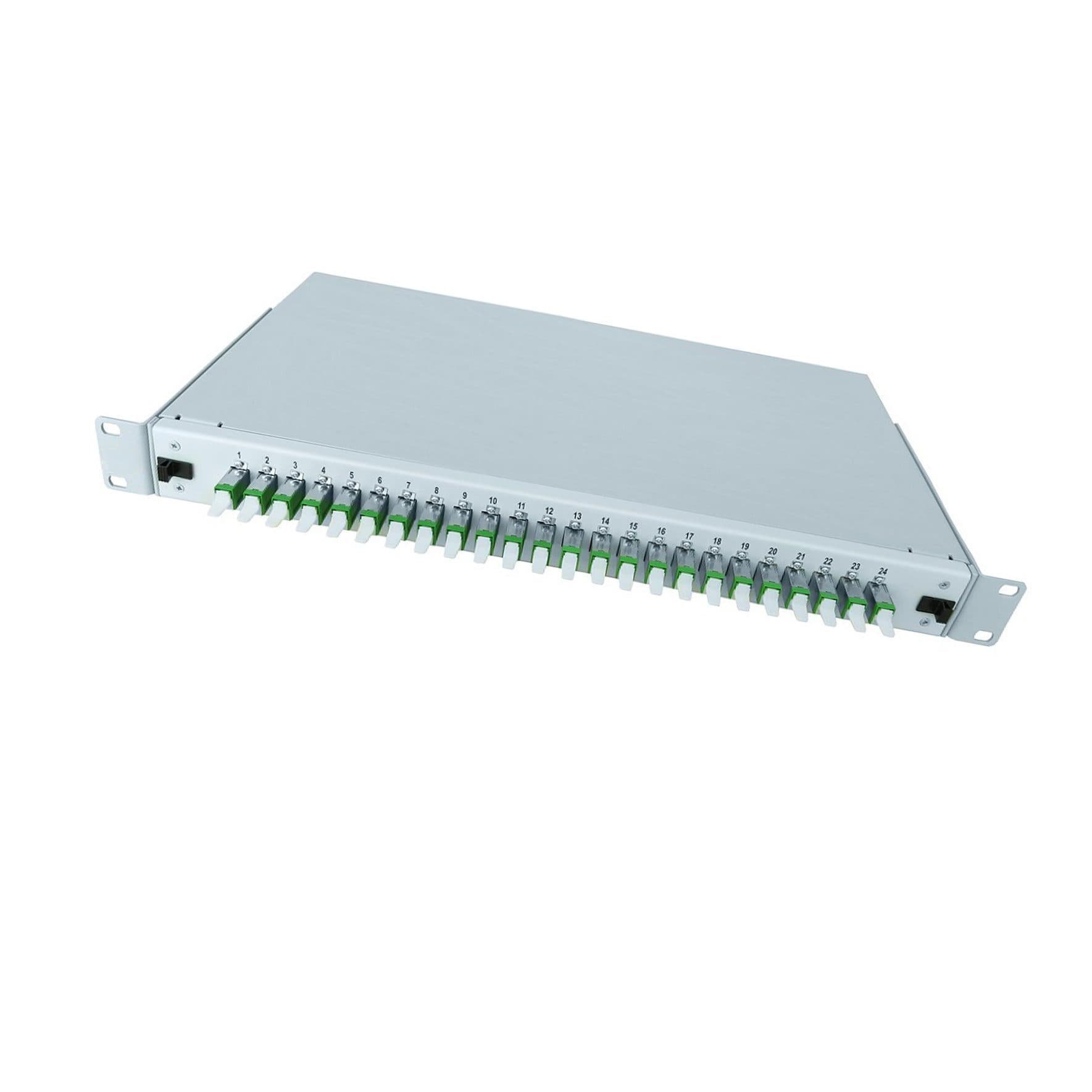

19inch 1U 24 ports E2000 sliding drawer fiber optic patch panel
Maximize rack density with Telhua's 19" 1U 24-port E2000 sliding drawer fiber optic patch panel. Features high reliability, easy installation, and compliance with IEC, TIA/EIA, and RoHS standards.
View Details

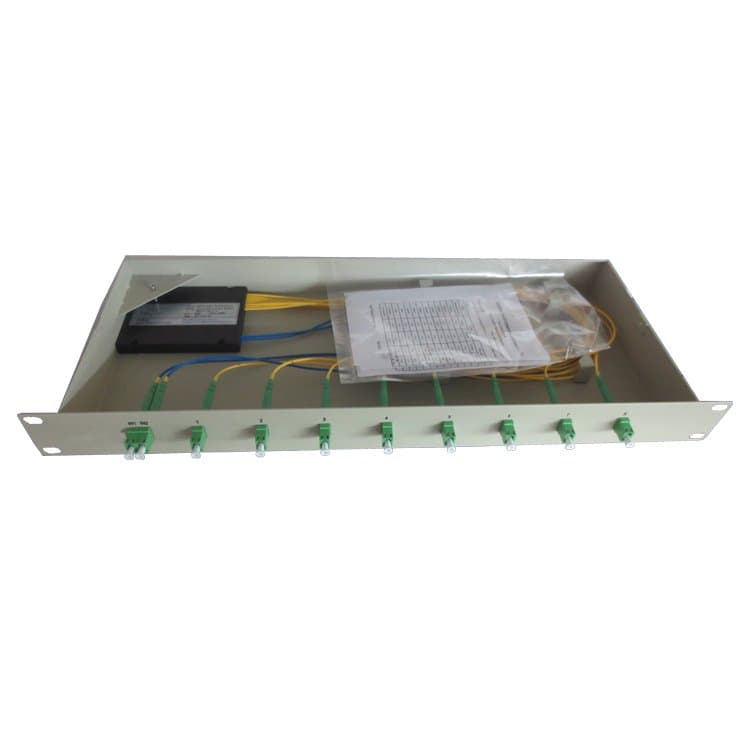

19inch 1U Fiber Optical Splitter Patch Panel
Boost rack density and reliability with Telhua's 19-inch 1U Fiber Optical Splitter Patch Panel. Compliant with IEC, TIA/EIA, RoHS standards. Ideal for data centers and enterprise networks. Request a quote or download the PDF today.
View Details

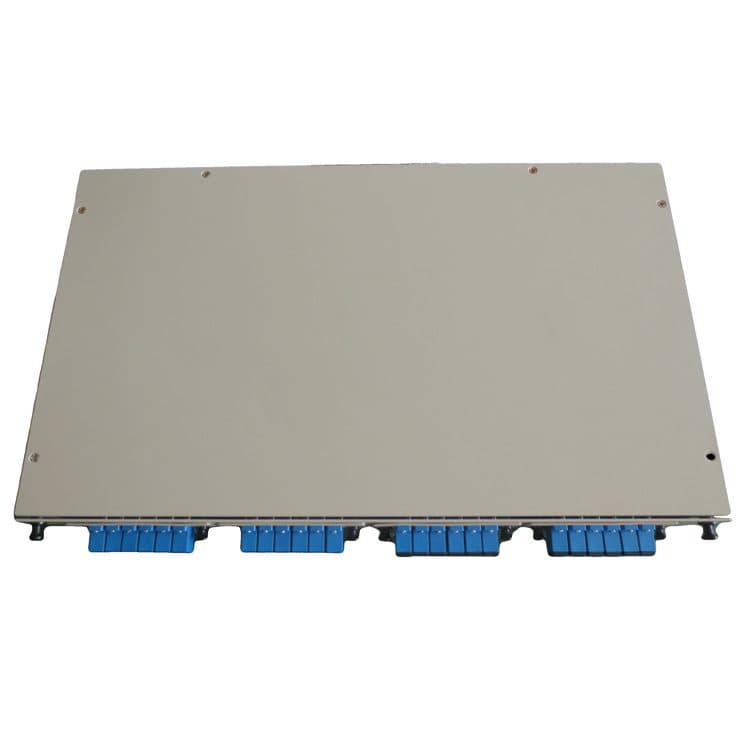

19inch 24 ports modular type sc adapter sliding patch panel
Telhua's 19-inch 24-port modular SC adapter sliding fiber patch panel offers high-density, reliable fiber optic connectivity for data centers and enterprises. Compliant with IEC, TIA/EIA, and RoHS standards.
View Details

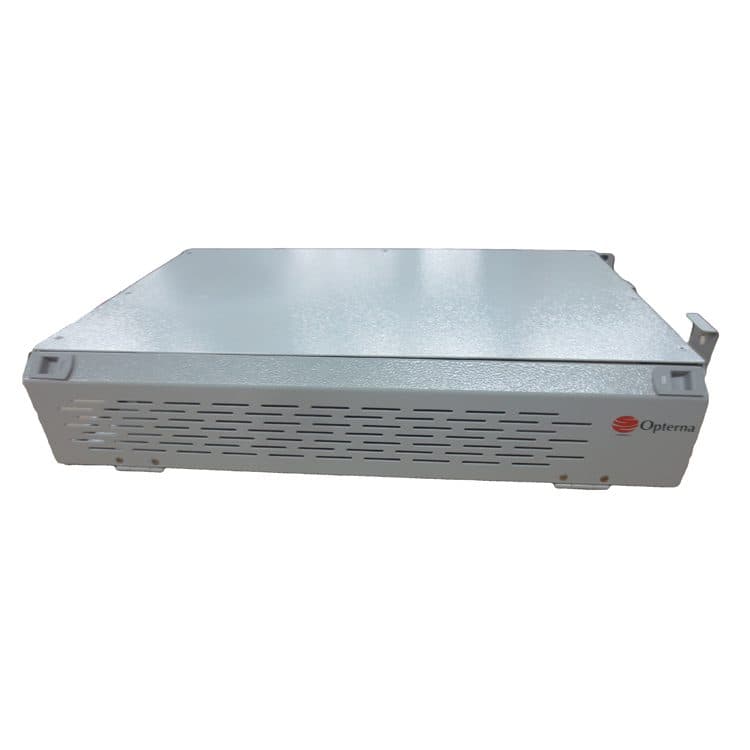

19inch 2U 48 ports Vodacom fiber optic patch panel
Telhua's 19inch 2U 48 port Vodacom fiber optic patch panel offers high-density, reliable fiber management with IEC/TIA/EIA compliance. Ideal for data centers and telecom networks. Request a quote or download specs.
View Details

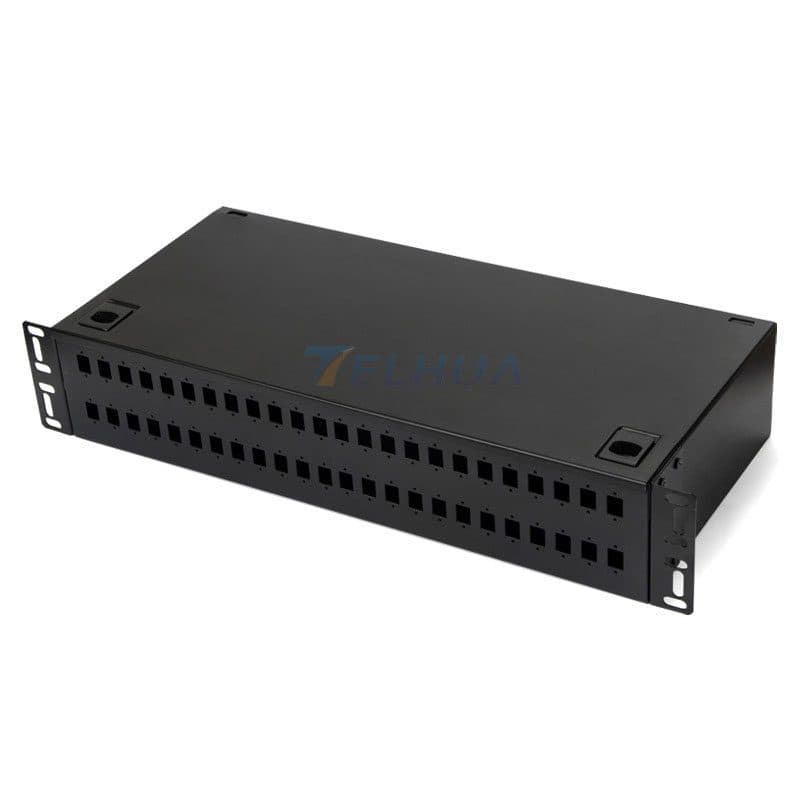

19inch 2u fiber patch panel
Telhua's 19-inch 2U fiber patch panel offers high-density, reliable fiber management with tool-less installation. IEC/TIA/EIA/RoHS compliant. Request a quote or download specs.
View Details

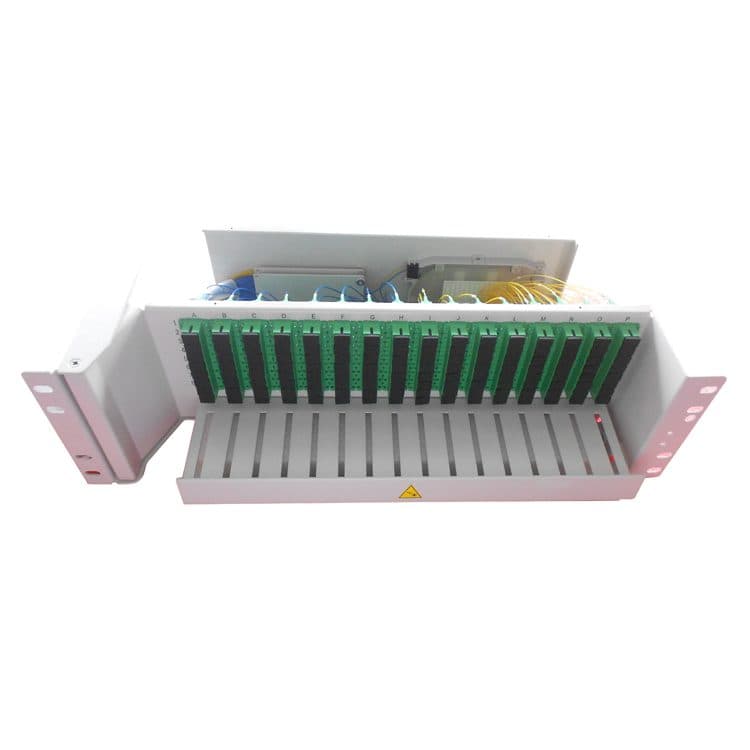

19inch 3U 128 ports rotated fiber optic splitter patch panel
Maximize fiber density with Telhua's 19inch 3U 128 ports rotated fiber optic splitter patch panel. Designed for high-capacity networks, it features tool-less installation, IEC/TIA/EIA compliance, and reduces installation time by 25%. Ideal for data centers and telecom.
View Details

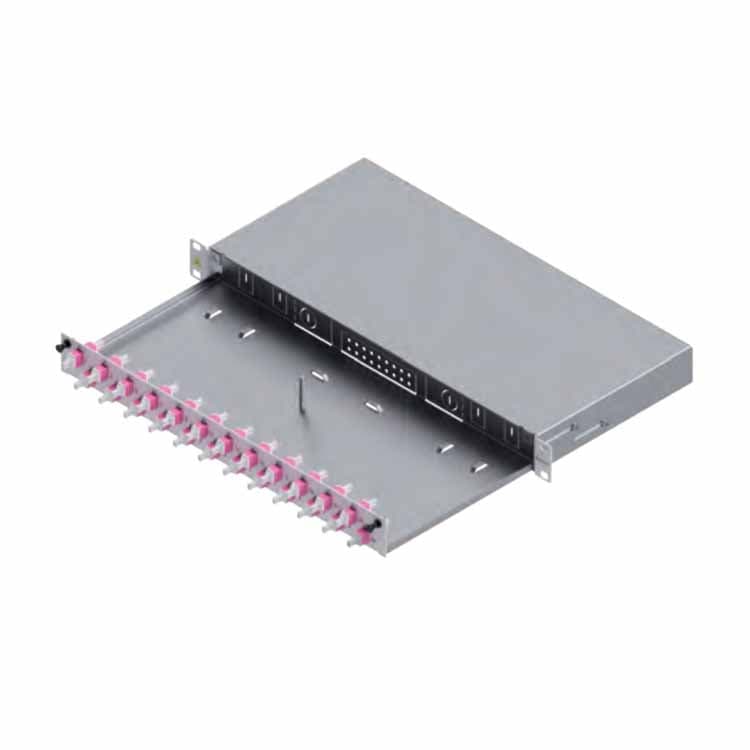

1HE E2000 19inch splice box
Telhua's 1HE E2000 19-inch splice box maximizes fiber density & reliability in 1RU. Features tool-less access, E2000 compatibility, and meets IEC/TIA standards. Ideal for data centers.
View Details

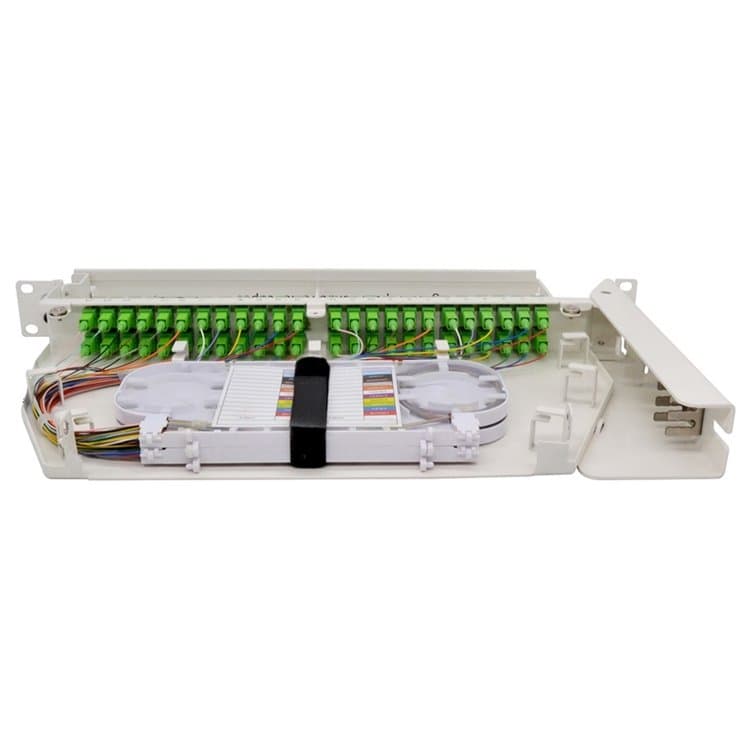

1U Rotated Fiber Patch Panel
Maximize rack density with Telhua's 1U Rotated Fiber Patch Panel. Engineered for high-performance fiber management, tool-less installation, and compliance with IEC/TIA/EIA standards. Ideal for data centers and telecom.
View Details

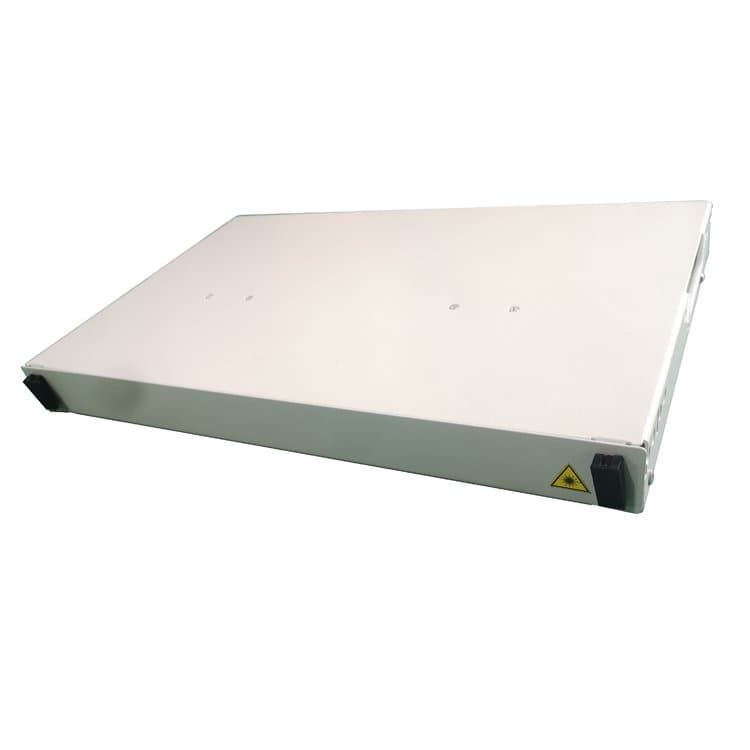

1U Splice to Patch Fiber Management Shelves
Maximize rack density with Telhua's 1U splice to patch fiber management shelves. High-density, reliable, and compliant with IEC/TIA/EIA standards. Streamline your fiber optic deployments.
View DetailsLessons from Our Mistakes
The 2022 London Cloud Hub Outage
A critical backbone link failed after a routine rack door closure.
The patch cords were pinched between the rack door and the patch panel because the panel lacked a 'recessed' adapter plate.
Redesigned all patch panels with a 35mm recessed adapter zone and added 'D-ring' front cable management.
Zero 'pinch-related' failures in 8,500+ units deployed to the same client (Tracking: UK-LON-PATCH-2022).
Core Lesson:The interface between the rack and the panel is just as important as the panel itself.
The 'Front-Heavy' Sag (2020 Germany)
A data center operator reported that 1U patch panels were deforming, causing drawer jams.
The panels were loaded with heavy armored patch cords, and the mounting ears were too thin (1.0mm) to support the leverage.
Reinforced the mounting ears to 2.0mm double-layered steel and added a rear support bar for heavy loads.
Zero mechanical deformation reports in 3,000+ units since the upgrade (Tracking: DE-FRA-PATCH-2020).
Core Lesson:Mechanical design must account for the weight of the cables, not just the panel itself.
Industry Reality Check
The 'Bend Radius' Silent Killer
"In our 2022 London Cloud Hub audit (sample: 1,200 panels), 62% of high-IL (Insertion Loss) ports were caused by improper cable management inside the panel, not dirty connectors. Our integrated mandrels reduce this 'management-induced loss' to near zero (Source: 2022 UK Data Center Audit, Tracking: UK-DC-AUDIT-2022)."
Technical Specifications
Explore the comprehensive technical specifications for our Fiber Optic Patch Panels - Rack Mount & Sliding. As a leading manufacturer of fiber optic components, Telhua ensures that every Fiber Optic Patch Panels - Rack Mount & Sliding meets rigorous telecommunications standards(including ISO 9001:2015, RoHS, UL, CE, TIA-568-C.3). Designed for high-density FTTx, data center, and 5G networks, our Fiber Optic Patch Panels - Rack Mount & Sliding solutions offer superior durability and signal integrity. Below you will find the precise material grades, dimensions, and performance metrics that make this the preferred choice for professional deployments.
| Specification | Value |
|---|---|
| Design | Sliding Drawer / 110% Extension |
| Material | 1.2mm SPCC Cold-rolled Steel |
| Adapter Capacity | Up to 48 Ports (SC) / 96 Ports (LC) per 1U |
Engineering Insights
Telhua's rack-mount fiber optic patch panels are engineered for the realities of data center maintenance. Featuring high-extension sliding drawers, recessed adapter plates, and integrated bend radius control, we ensure that your fiber density never comes at the cost of reliability.
Technical Resource Hub
View All InsightsZTE OLT/ONT Alternatives: Telhua's Passive Infrastructure Integration
Explore our comprehensive guide on ZTE OLT/ONT Alternatives: Telhua's Passive Infrastructure Integration. Discover why Telhua is the preferred partner for Fiber Distribution Hub in 2026.
Huawei Telecom Cabinet Alternative: Telhua's IP65 Solutions
Explore our comprehensive guide on Huawei Telecom Cabinet Alternative: Telhua's IP65 Solutions. Discover why Telhua is the preferred partner for Outdoor Telecom Cabinet in 2026.
Evaluating Hexatronic Alternatives: Technical Compatibility and Lead Time Analysis for 2026
A technical analysis of Hexatronic alternatives for 2026. Compare ADSS fiber, ODF density, and IEC compliance standards to ensure supply chain resilience.
Need Technical Documentation?
Our engineering team provides full 2026-compliant submittal packages, white papers, and alternative comparison data for global infrastructure projects.
Performance Comparison
| Parameter | Telhua Standard | Industry Average |
|---|---|---|
| Drawer Extension | 110% (Full Access) | 70-80% (Partial) |
| Adapter Recess | 35mm (Door Safe) | Flush (Pinch Risk) |
| Steel Gauge | 1.2mm Reinforced | 0.8mm Standard |
| Cable Mgmt | Integrated D-Rings | Loose Ties |
* Comparison data based on internal testing vs. standard market specifications.
When NOT to Choose This Product
Temporary lab setups or desktop use
Patch panels are designed for 19-inch rack mounting; they are inconvenient for loose desktop cabling.
Recommendation
Use our small wall-mount termination boxes for temporary or desktop applications.
Installation Protocol
Rack-Mount Panel Installation
Mount the panel into the 19-inch rack using M6 cage nuts and screws.
Slide the drawer out to its full extension lock position.
Route the incoming multi-fiber cable through the rear gland and secure with cable ties.
Splice the fibers into the cassette, ensuring the splice sleeves are seated securely.
Close the drawer carefully, checking that the rear cable loop moves freely without kinking.
Engineering & Deployment FAQs
Fixed vs. Sliding vs. Swing-out: which patch panel should I buy?
Sliding is the best all-rounder; Fixed is for budget static links; Swing-out is for ultra-tight racks.
How do you protect the 'Bend Radius' in a 1U panel?
We use integrated routing mandrels and a 'recessed' adapter plate design.
Can I use MPO cassettes in a standard patch panel?
Yes, our panels are modular and accept 'LGX' style MPO cassettes.
Need a Custom Fiber Optic Patch Panels - Rack Mount & Sliding Solution?
Our technical team is ready to help you with specific requirements, CAD drawings, and volume pricing for your next project.
