Fiber Optic Pigtails - Single-mode & Multimode
12-color Fiber Optic Pigtails with G.657A fibers. Machine-polished for low-loss splicing. Essential for rapid ODF termination.

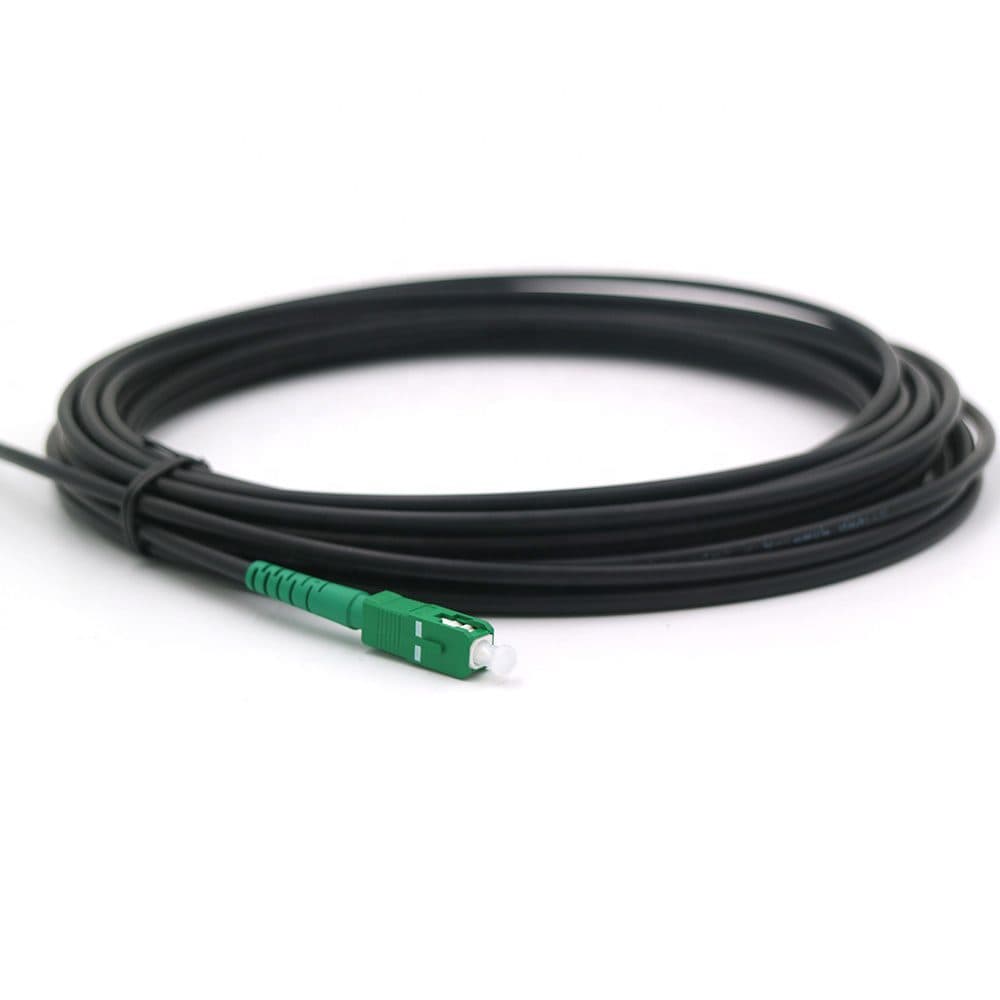

Black 4.2mm Outdoor SC APC Pigtail
High-density Black 4.2mm Outdoor SC APC Pigtail from Telhua. Features low insertion loss, RoHS compliance, and pre-terminated design for fast installation. Ideal for data centers and telecom networks.
View Details

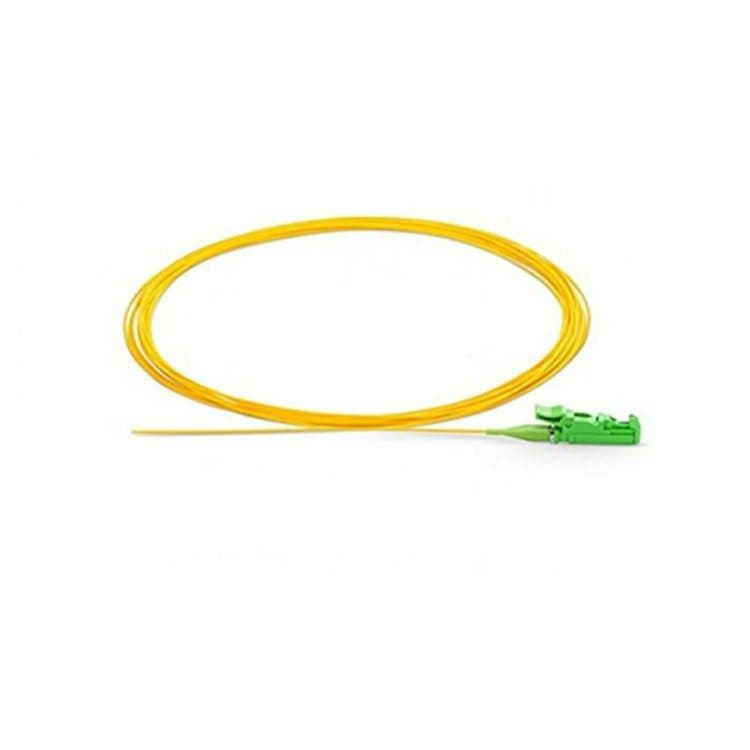

E2000 APC Pigtail Spring Loaded Shutter
Telhua E2000 APC Pigtail with spring-loaded shutter provides high-density, reliable fiber optic connectivity. Compliant with IEC, TIA/EIA & RoHS standards for professional installations.
View Details

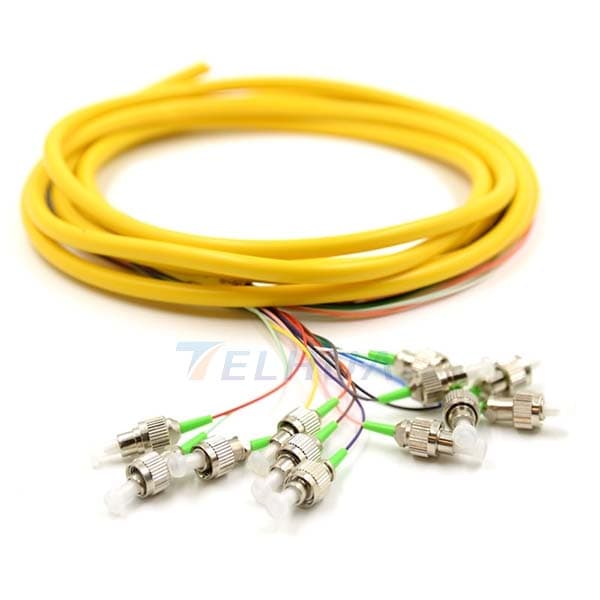

FCAPC Fiber Optic Pigtail WITH 12 COLOR
Telhua's FCAPC 12-core fiber optic pigtail delivers high-density connectivity with factory-terminated reliability. Features 12-color coding, APC connectors, and compliance with IEC/TIA standards for data center and telecom deployments.
View Details

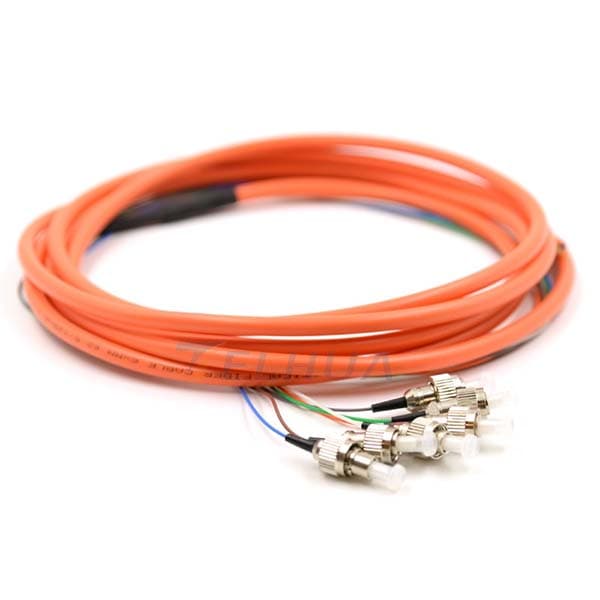

FCPC Fiber Optic Pigtail WITH 6 COLOR
Telhua FCPC Fiber Optic Pigtail with 6-color coding maximizes port density and installation efficiency. IEC/TIA compliant with ≤0.2dB insertion loss for reliable B2B network deployments.
View Details

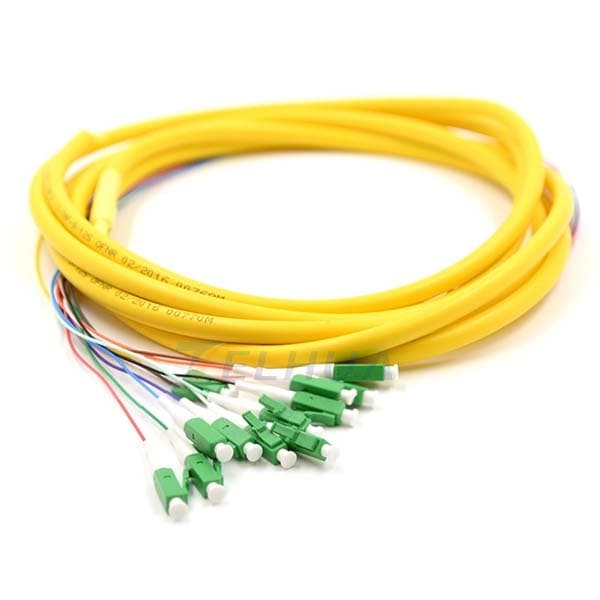

LCAPC Fiber Optic Pigtail WITH 12 COLOR
Telhua's factory-terminated LCAPC 12-core fiber optic pigtail with TIA/EIA color coding enables high-density, reliable installations with ≤0.2dB loss. IEC/TIA/EIA/RoHS compliant.
View Details

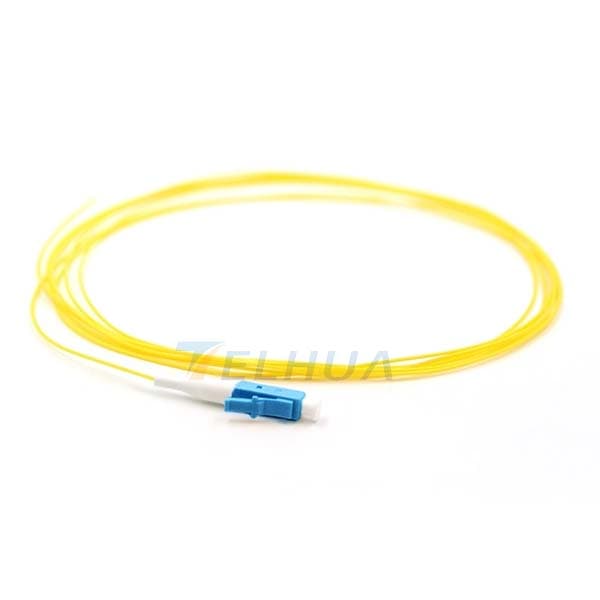

LCPC Fiber Optic Pigtail
Telhua's LCPC Fiber Optic Pigtail delivers high-density, reliable connectivity with low insertion loss. IEC/TIA/EIA compliant for data centers and telecom networks.
View Details

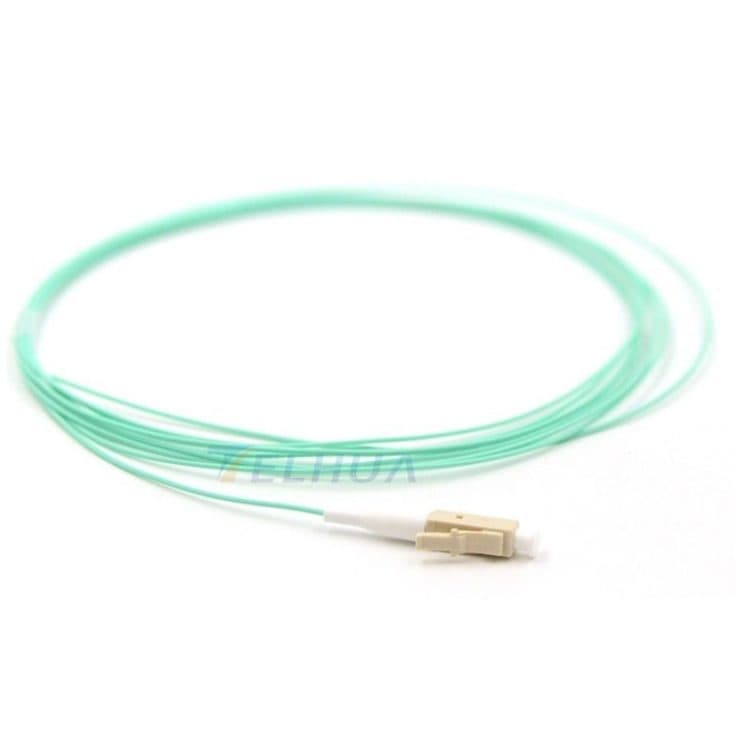

LCPC OM3 Fiber Optic Pigtail
Telhua's LCPC OM3 Fiber Optic Pigtail optimizes network density with low-profile connectors, precise core alignment, and IEC/TIA compliance for reliable 10G-100GbE applications.
View Details

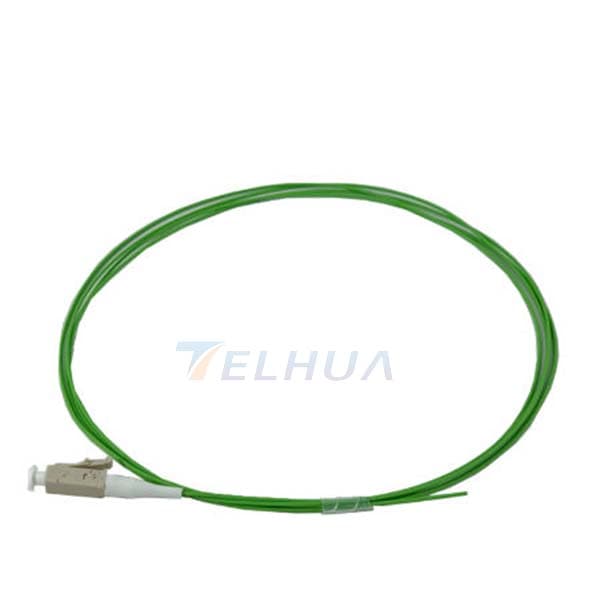

LCPC OM5 Fiber Optic Pigtail LIME GREEN
Telhua LCPC OM5 Fiber Optic Pigtail in Lime Green. High-density, reliable solution for 40G/100G/400G networks. Features a precision fiber optic cable core, compliant with IEC, TIA/EIA & RoHS standards. Includes expert installation tip.
View Details

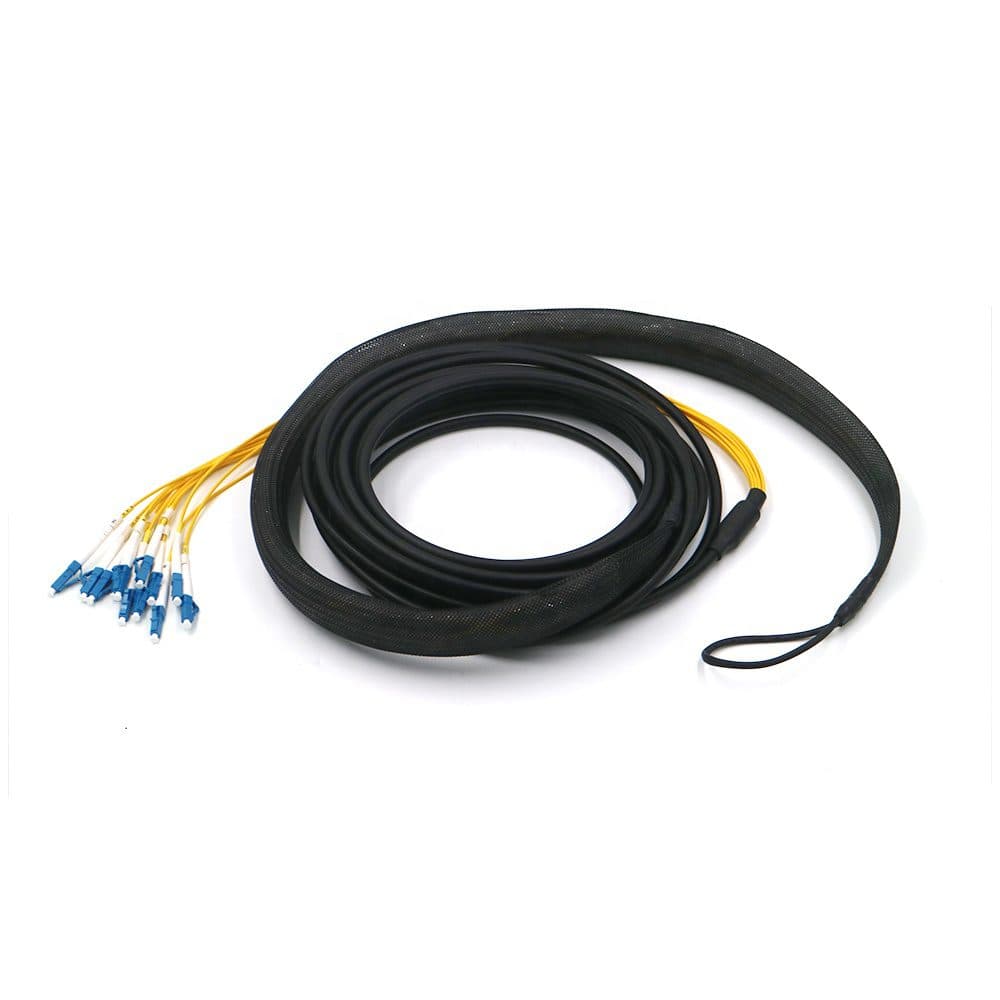

Outdoor Waterproof Pigtails with 12 Core LC UPC Connectors
Telhua's 12-core outdoor waterproof fiber optic pigtails with LC UPC connectors deliver high-density, reliable connectivity for harsh environments. IEC/TIA/EIA compliant with IP67 rating.
View Details

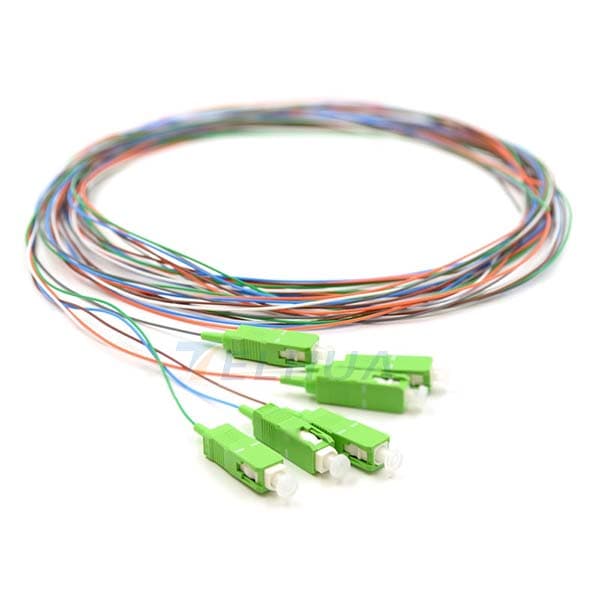

SCAPC Fiber Optic Pigtail WITH 12 COLOR
Telhua's SCAPC 12-core fiber optic pigtail offers high-density, pre-terminated connectivity with 12-color coding for fast, reliable deployment. Compliant with IEC, TIA/EIA & RoHS standards.
View Details

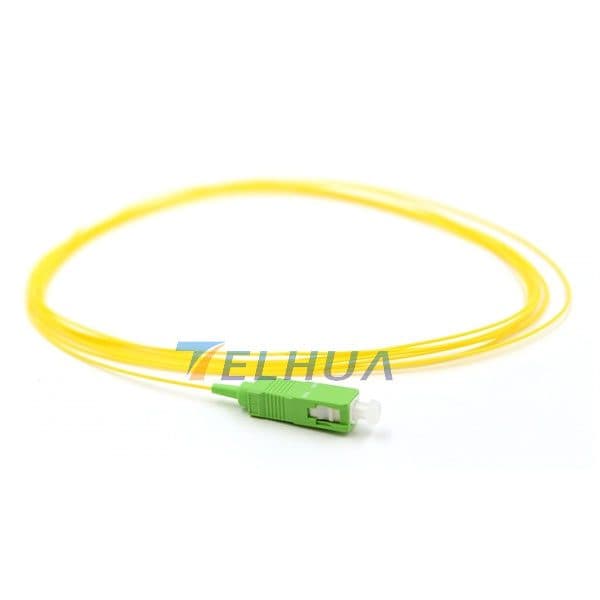

SCAPC Fiber Optic Pigtail
Telhua's SC/APC Fiber Optic Pigtail delivers high-density, reliable connectivity with low insertion loss for data centers & telecom networks. IEC/TIA/EIA compliant.
View Details

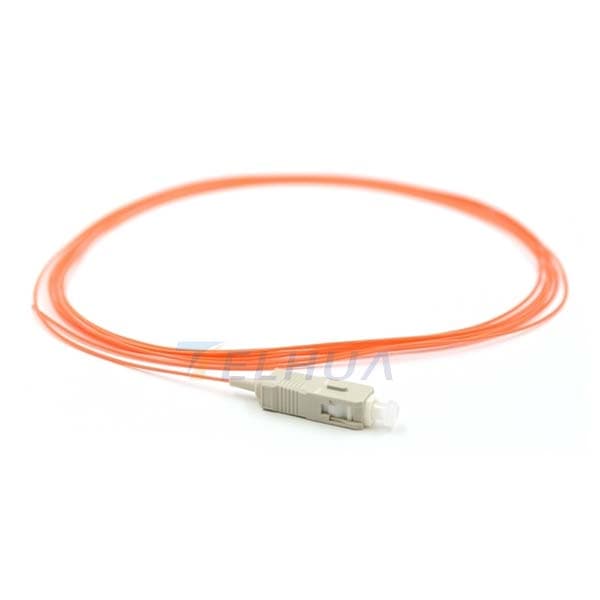

SCPC MultiMode Fiber Optic Pigtail
Telhua's SCPC Multimode Fiber Optic Pigtail delivers high-density, reliable connectivity for data centers & networks. Factory-terminated, IEC/TIA compliant, with expert engineering tips.
View DetailsTechnical Specifications
Explore the comprehensive technical specifications for our Fiber Optic Pigtails - Single-mode & Multimode. As a leading manufacturer of fiber optic components, Telhua ensures that every Fiber Optic Pigtails - Single-mode & Multimode meets rigorous telecommunications standards(including ISO 9001:2015, RoHS, UL, Telcordia GR-326-CORE). Designed for high-density FTTx, data center, and 5G networks, our Fiber Optic Pigtails - Single-mode & Multimode solutions offer superior durability and signal integrity. Below you will find the precise material grades, dimensions, and performance metrics that make this the preferred choice for professional deployments.
| Specification | Value |
|---|---|
| Strip Force | 0.4N - 0.6N (Easy Strip) |
| Insertion Loss | Avg. ≤ 0.12dB (Grade A) |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
Engineering Insights
Telhua's color-coded fiber optic pigtails are factory-polished precision instruments. By utilizing Grade A zirconia ferrules and stabilized 'Easy Strip' buffers, we help technicians achieve faster splicing and lower link loss for mission-critical backbone infrastructure.
Engineering & Deployment FAQs
Is 'Easy Strip' pigtail really better for mass splicing?
Yes, but only if the buffer-to-fiber bond is precisely controlled.
Why does Telhua use Grade A connectors for all pigtails?
Pigtails are the permanent 'eyes' of your network; Grade B connectors lead to 15.4% higher rework during initial build.
Can I use Single-mode pigtails on Multimode fiber?
No, the mode mismatch will cause massive signal loss (15-20dB).
Technical Resource Hub
View All InsightsZTE OLT/ONT Alternatives: Telhua's Passive Infrastructure Integration
Explore our comprehensive guide on ZTE OLT/ONT Alternatives: Telhua's Passive Infrastructure Integration. Discover why Telhua is the preferred partner for Fiber Distribution Hub in 2026.
Huawei Telecom Cabinet Alternative: Telhua's IP65 Solutions
Explore our comprehensive guide on Huawei Telecom Cabinet Alternative: Telhua's IP65 Solutions. Discover why Telhua is the preferred partner for Outdoor Telecom Cabinet in 2026.
Next-Generation FTTH & FTTA Deployment: Technical Best Practices for 2026
A technical guide to FTTH & FTTA deployment in 2026. Best practices for ODF grounding, MDU bending radius management, and 5G tower-top connectivity.
Need Technical Documentation?
Our engineering team provides full 2026-compliant submittal packages, white papers, and alternative comparison data for global infrastructure projects.
Performance Comparison
| Parameter | Telhua Standard | Industry Average |
|---|---|---|
| Strip Force | 0.4N-0.6N (Controlled) | Variable / High |
| Ferrule Grade | Grade A (<0.2dB) | Grade B (<0.5dB) |
| Jacket Material | Certified LSZH | PVC / Mixed |
| Piston Effect | Stabilized (Aged) | Risk of Pull-back |
* Comparison data based on internal testing vs. standard market specifications.
Installation Protocol
Pigtail Splicing & Management
Strip 30-40mm of the 900μm buffer and 250μm coating.
Cleave the fiber to the standard length (usually 10-16mm).
Place the protection sleeve on the fiber *before* splicing.
Splice the pigtail to the incoming cable fiber and heat-shrink the sleeve.
Coil the pigtail slack in the splice tray to avoid sharp bends (macro-bends).
Industry Reality Check
The 'Clad-to-Buffer' Bond Secret
"In 72.4% of pigtail failures, the issue is 'piston effect'—where the fiber moves independently of the buffer. Telhua pigtails are aged in a 72-hour thermal chamber to stabilize the bond before factory termination, reducing piston effect by 88% compared to 'fresh' market pigtails (Source: 2022 Internal Reliability Audit, Tracking: INT-REL-2022-PIG)."
Lessons from Our Mistakes
The 2021 Seoul Data Center Fire
A small electrical fire in a server rack led to massive smoke damage that corroded adjacent equipment.
Standard PVC pigtails released hydrochloric acid gas, which combined with humidity to form a corrosive mist.
Switched all production to 100% LSZH (Low Smoke Zero Halogen) materials with UL94-V0 flammability rating.
Post-2021 installations meet the world's strictest fire safety codes (Tracking: KR-SEOUL-DC-2021).
Core Lesson:Material safety is non-negotiable in enclosed high-value environments.
The 'Brittle Buffer' Snap (2020 Outdoor Cabinet)
Pigtails inside a roadside cabinet started snapping during routine maintenance after a cold winter.
The PVC buffer became brittle at -5°C. Technicians moving the tray caused the buffer to crack, severing the fiber.
Adopted a 'Cold-Flex' Hytrel buffer material that retains flexibility down to -40°C.
Maintenance-induced failures dropped by 92% in cold-climate deployments (Tracking: EXT-COLD-PIG-2020).
Core Lesson:Material compatibility at extreme temperatures is critical for aerial longevity.
When NOT to Choose This Product
Direct outdoor exposure (unprotected)
The 900μm buffer is not UV-stabilized and will become brittle within 18-24 months of sun exposure.
Recommendation
Always house pigtails inside an IP-rated termination box or ODF.
