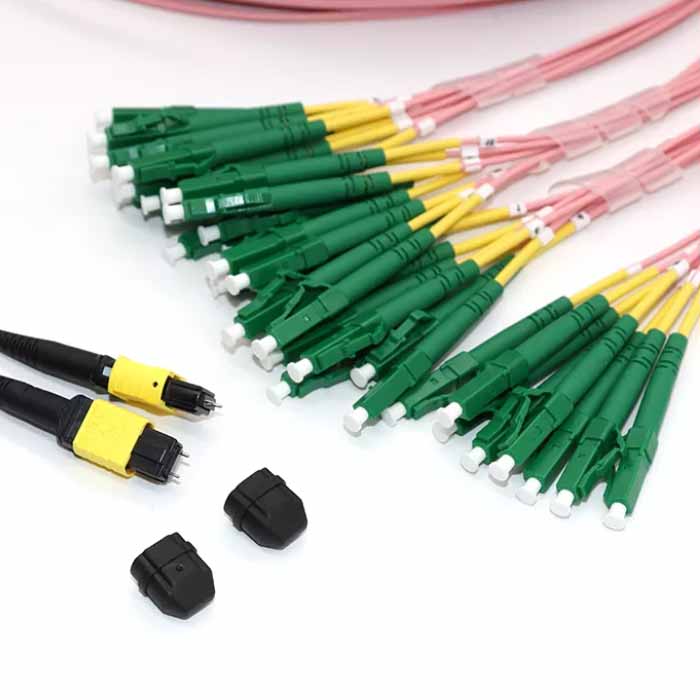

32FO LC MPO Patch Cord
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
Product Overview
The Telhua 32FO LC MPO Patch Cord is a high-performance solution designed to streamline fiber optic infrastructure. It combines 32 fibers in a single MPO connector, terminating into individual LC duplex connectors, enabling efficient, high-density connections while maintaining superior signal integrity.
Key Features & Benefits
| Feature | Benefit |
|---|---|
| 32-Fiber MPO to LC Configuration | Reduces cable clutter by up to 75%, optimizing rack space and improving airflow. |
| Precision-Grade Connectors | Ensures low insertion loss (<0.3 dB) and high return loss (>55 dB) for reliable data transmission. |
| Bend-Insensitive Fiber | Minimizes signal degradation in tight spaces, reducing installation errors and downtime. |
| Plug-and-Play Design | Accelerates deployment by up to 50%, cutting labor costs and network setup time. |
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Type | MPO (Male/Female) to LC Duplex |
| Fiber Count | 32 |
| Fiber Type | OM3/OM4/OS2 (Customizable) |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥55 dB (PC), ≥60 dB (APC) |
| Operating Temperature | -20°C to +70°C |
| Compliance | IEC 61754-7, TIA/EIA-604-5, RoHS |
Telhua Engineer's Tip
Optimizing MPO Polarity for Error-Free Deployment
When deploying 32FO MPO systems, ensure polarity alignment using the TIA-568-C.3 standard. Our patch cords feature key-up/key-down MPO connectors and pre-defined fiber mapping (Type A, B, or C) to prevent mismatches. For 40/100G applications, pair with our MPO-LC breakout modules to maintain consistent polarity across the network, eliminating costly rework.
Applications
- High-density data center interconnects (40/100/400G Ethernet)
- Enterprise backbone cabling
- Telecom central offices
- Fiber-to-the-desktop (FTTD) deployments
Why Choose Telhua?
Telhua patch cords undergo rigorous testing, including 100% end-face inspection and mechanical durability checks. We guarantee compliance with IEC, TIA/EIA, and RoHS standards, ensuring interoperability and longevity. Our global support team provides technical guidance for seamless integration.
