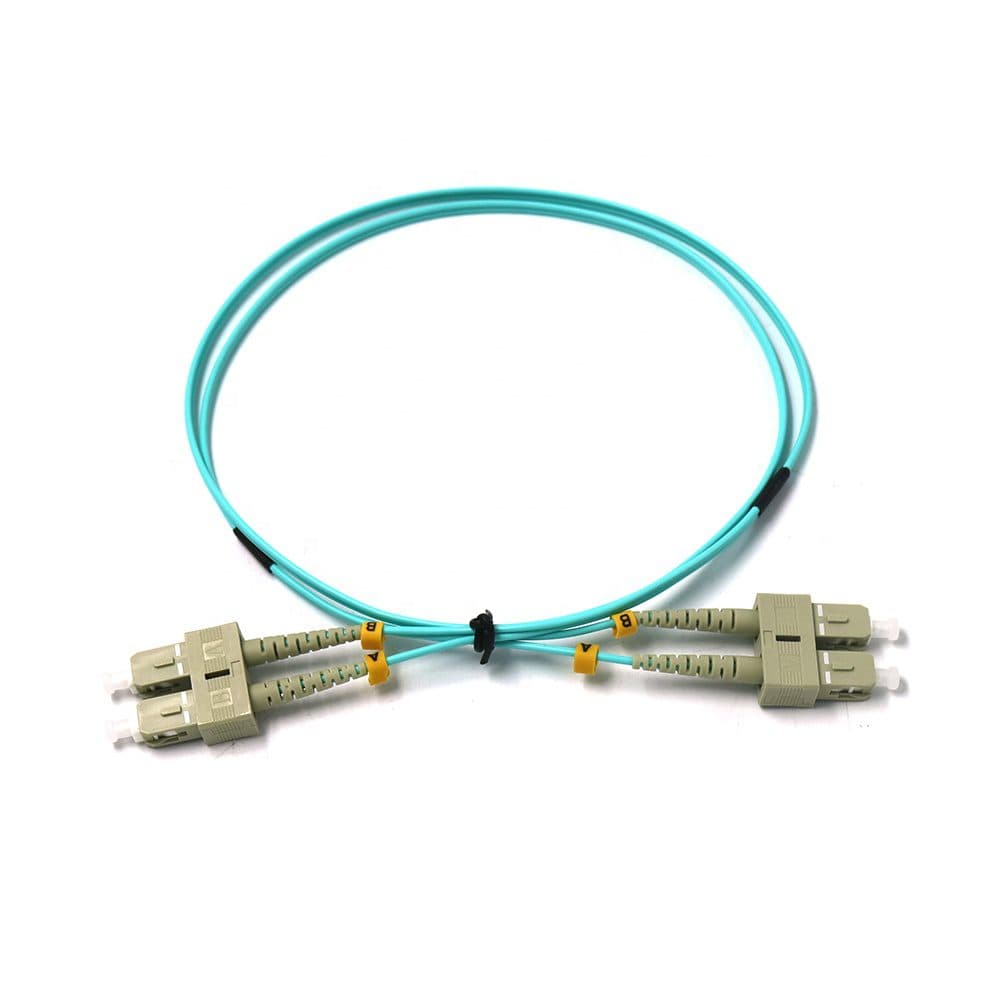

Ftth SC PC-SC PC Duplex OM3 MM Fiber Optic Indoor Patch Cord
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
High-Density Fiber Optic Connectivity Solution
Telhua's FTTH SC PC-SC PC Duplex OM3 Multimode Fiber Optic Indoor Patch Cord is engineered for demanding B2B network environments where space optimization, signal integrity, and rapid deployment are critical. This patch cord provides a reliable, high-performance connection for data centers, enterprise networks, and FTTH applications, ensuring minimal insertion loss and maximum durability.
Addressing Key B2B Infrastructure Challenges
Network managers and installers face consistent challenges in high-density environments. Our patch cord is designed to directly mitigate these pain points:
- Space Constraints & Density: The duplex SC connector design allows for efficient cable management in crowded panels and enclosures, maximizing port utilization without sacrificing performance.
- Network Reliability & Downtime: Precision PC (Physical Contact) polish on both connectors ensures low back reflection and stable optical performance, reducing the risk of signal degradation and network interruptions.
- Installation Speed & Labor Costs: The flexible OM3 indoor cable and familiar SC connector interface enable quick, tool-less connections, significantly reducing installation time and associated labor expenses.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Indoor Duplex Patch Cord |
| Fiber Type | OM3 50/125μm Multimode |
| Connector Type | SC/PC to SC/PC (Duplex) |
| Cable Jacket | LSZH (Low Smoke Zero Halogen) |
| Operating Temperature | -20°C to +70°C |
| Insertion Loss | ≤ 0.3 dB (Typical) |
| Return Loss | ≥ 40 dB (PC Polish) |
| Standards Compliance | IEC 61754, TIA/EIA-604-10, RoHS |
Telhua Engineer's Tip: Optimizing for 10GbE Applications
For 10 Gigabit Ethernet deployments using OM3 fiber, ensure your entire channel—including patch cords—is certified for 10GbE performance over the required distance. While OM3 supports 10GbE up to 300 meters, using patch cords with consistently low insertion loss (like this ≤0.3 dB model) preserves your optical budget. This margin is crucial for accommodating additional connections or future network reconfigurations without exceeding the maximum channel loss. Always verify the end-face geometry of SC connectors with a fiber microscope during installation to prevent contamination-related loss spikes.
