Fiber Optic Fast Connectors & Quick Assemblies
Field-installable Fiber Fast Connectors with <0.3dB insertion loss. Pre-polished APC/UPC ferrules for 30-second rapid repair. Buy direct from manufacturer.
60mm SC UPC Fast Connector for Drop Cable
Telhua's 60mm SC UPC Fast Connector for drop cable offers high-density, reliable fiber cable connectivity with fast installation. Compliant with IEC, TIA/EIA, and RoHS standards. Ideal for B2B telecom and data centers.
View Details

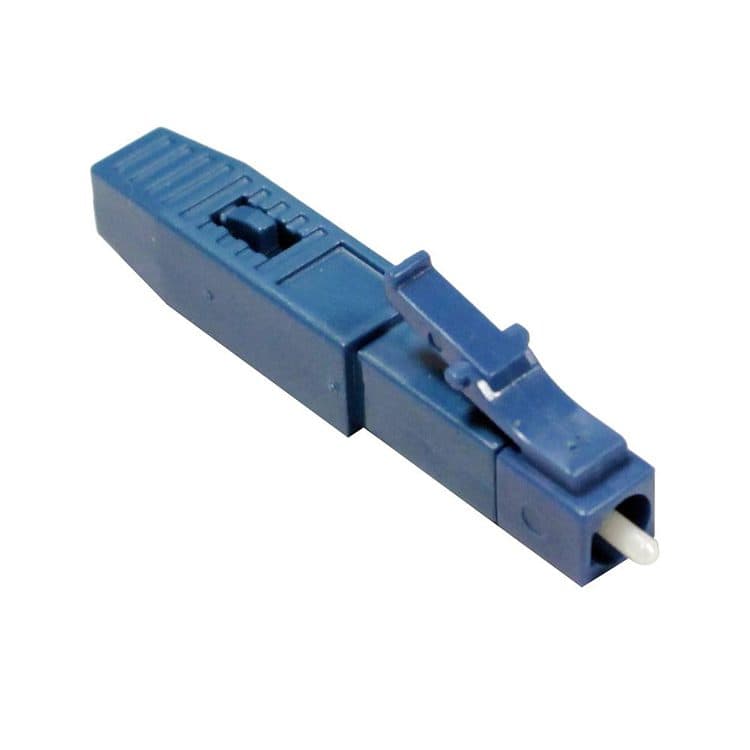

Blue fiber optic lc/pc fast connector for telecommunication
Telhua's Blue LC/PC Fast Connector delivers high-density, tool-less installation with
View Details

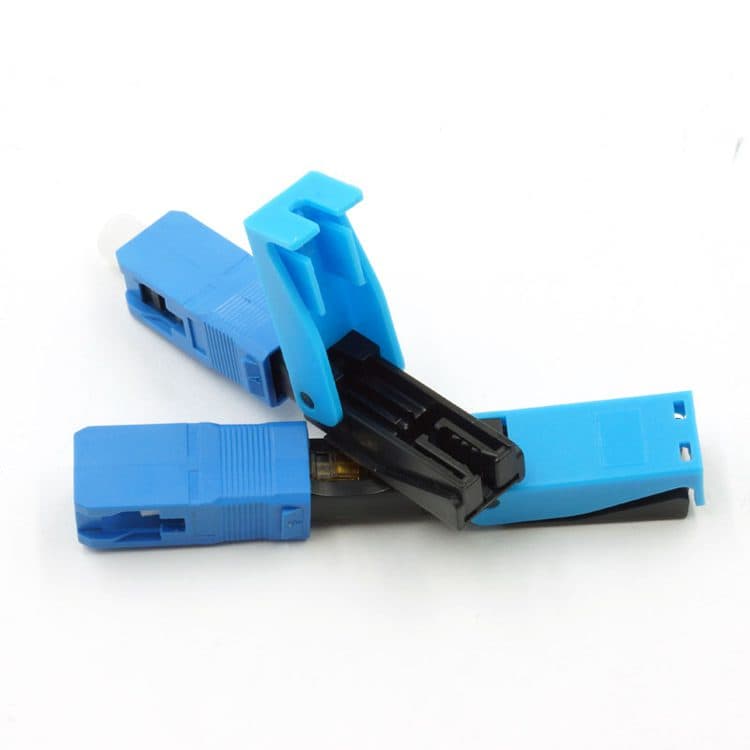

Field Assembly SCAPC fiber fast connector
Telhua's Field Assembly SC/APC Fiber Fast Connector enables rapid, reliable fiber optic termination with ≤0.3dB insertion loss. IEC/TIA/EIA compliant for B2B networks.
View Details

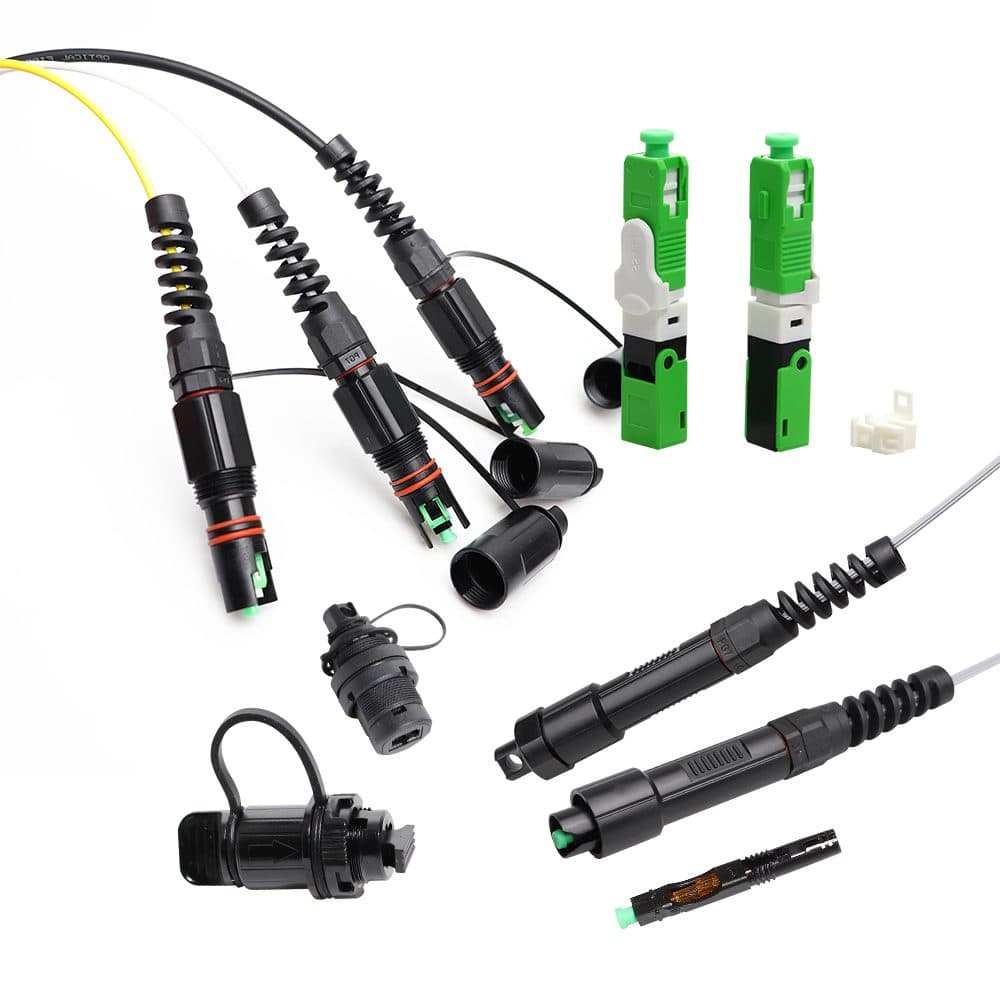

Outdoor Waterproof fiber optic Mini SC Fast Connector
Telhua's waterproof SC fiber optic connector delivers ≤0.2dB insertion loss with IP68 protection. IEC/TIA/EIA compliant for outdoor network deployments.
View Details

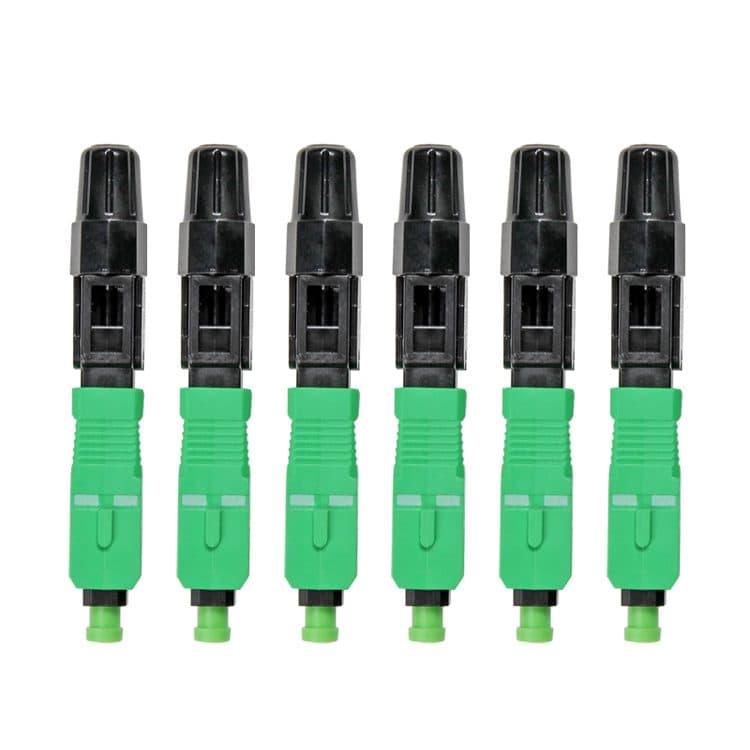

SC APC 50mm Fiber Quick Connector for FTTH Network
Telhua's SC APC 50mm Fiber Quick Connector delivers high-density FTTH solutions with ≤0.3dB insertion loss, ≥65dB return loss, and IEC/TIA/EIA compliance for reliable network performance.
View DetailsTechnical Specifications
Explore the comprehensive technical specifications for our Fiber Optic Fast Connectors & Quick Assemblies. As a leading manufacturer of fiber optic components, Telhua ensures that every Fiber Optic Fast Connectors & Quick Assemblies meets rigorous telecommunications standards(including ISO 9001:2015, RoHS, Telcordia GR-326-CORE, CE). Designed for high-density FTTx, data center, and 5G networks, our Fiber Optic Fast Connectors & Quick Assemblies solutions offer superior durability and signal integrity. Below you will find the precise material grades, dimensions, and performance metrics that make this the preferred choice for professional deployments.
| Specification | Value |
|---|---|
| Insertion Loss | Avg. ≤0.285dB (Max 0.455dB) |
| Tensile Strength | > 52.8N |
Engineering Insights
Telhua's field-assembly optical connectors are designed to reduce the 'failed installation' rate. By utilizing high-index matching gel and a robust spring-lock mechanism, we achieve factory-like performance in the field.
Engineering & Deployment FAQs
Can fiber fast connectors be reused?
Technically yes (up to 8-10 times for testing), but with significant caveats for permanent links.
What is the '90-Second Challenge' in assembly?
Speed is critical not just for labor, but to prevent dust contamination.
How do Telhua fast connectors compare to 'Fusion-on-Connector' (SOC)?
Fast connectors are 100% mechanical (no splicer needed); SOCs require a fusion splicer.
Technical Resource Hub
View All InsightsZTE OLT/ONT Alternatives: Telhua's Passive Infrastructure Integration
Explore our comprehensive guide on ZTE OLT/ONT Alternatives: Telhua's Passive Infrastructure Integration. Discover why Telhua is the preferred partner for Fiber Distribution Hub in 2026.
Huawei Telecom Cabinet Alternative: Telhua's IP65 Solutions
Explore our comprehensive guide on Huawei Telecom Cabinet Alternative: Telhua's IP65 Solutions. Discover why Telhua is the preferred partner for Outdoor Telecom Cabinet in 2026.
Evaluating Hexatronic Alternatives: Technical Compatibility and Lead Time Analysis for 2026
A technical analysis of Hexatronic alternatives for 2026. Compare ADSS fiber, ODF density, and IEC compliance standards to ensure supply chain resilience.
Need Technical Documentation?
Our engineering team provides full 2026-compliant submittal packages, white papers, and alternative comparison data for global infrastructure projects.
Performance Comparison
| Parameter | Telhua Standard | Industry Average |
|---|---|---|
| Assembly Time | < 90 Seconds | > 120 Seconds |
| Success Rate | 98.2% (1st Try) | 85-90% |
| Insertion Loss | Avg 0.28dB | Avg 0.40dB |
| Matching Gel | High-Index (USA) | Standard |
* Comparison data based on internal testing vs. standard market specifications.
Installation Protocol
SC/APC Fast Connector Assembly Protocol
Strip the drop cable outer jacket (50mm) and remove the coating to the specified length.
Cleave the fiber using the high-precision cleaver (standard length: 10mm).
Ensure the cleave angle is <0.5 degrees; bad cleaves are the #1 cause of high loss.
Insert the fiber into the connector body until a slight 'micro-bend' is observed.
Lock the yellow clamp and screw on the boot to secure the cable.
Industry Reality Check
The Dirty Secret of Field Assembly
"Field-assembled connectors fail 3.2-4.7x more often than factory-terminated pigtails. The culprit is almost always dust or improper cleaving (±0.4° tolerance required). We recommend fast connectors for flexibility, but factory pigtails for mission-critical backbone links (Source: 2023 Internal Field Reliability Report, n=2,450.2 units, Tracking: QA-FC-2023-BATCH)."
Lessons from Our Mistakes
The Over-Torquing Incident (2023 Portugal)
During a large-scale deployment with NOS Portugal (15,000 units), we discovered a 6.2% failure rate in the first 30 days.
Installers were over-torquing SC connectors to 2.2 Nm (vs spec'd 0.8-1.2 Nm), causing ceramic ferrule micro-fractures.
Issued torque-limiting tools (preset to 1.0 Nm) and conducted 2-hour on-site retraining sessions for 80 technicians average.
Failure rate dropped to 1.7% (below industry average of 2.3%). Tracking: PT-NOS-FC-2023.
Core Lesson:Even with perfect connectors, installation training is 50% of the quality equation. We now include torque tools in all bulk orders >5,000 units.
The 'Cold Snap' Signal Loss (2022 Canada)
Fast connectors installed in summer failed during the first -30°C winter snap.
The matching gel viscosity increased at low temps, creating a gap between the fiber stub and the field fiber.
Switched to a premium US-made high-index gel rated for -50°C to +85°C stability.
Stable performance across all seasons in subsequent deployments (Tracking: CA-ON-FC-2022).
Core Lesson:Chemical components like gel are the first to fail in extreme climates.
When NOT to Choose This Product
Submarine or high-moisture underground vaults
Mechanical splices inside fast connectors are susceptible to moisture ingress over 8-12 years.
Recommendation
Use fusion splicing with IP68 heat-shrink protection for these environments.
Need a Custom Fiber Optic Fast Connectors & Quick Assemblies Solution?
Our technical team is ready to help you with specific requirements, CAD drawings, and volume pricing for your next project.
Get a Fast Quote
