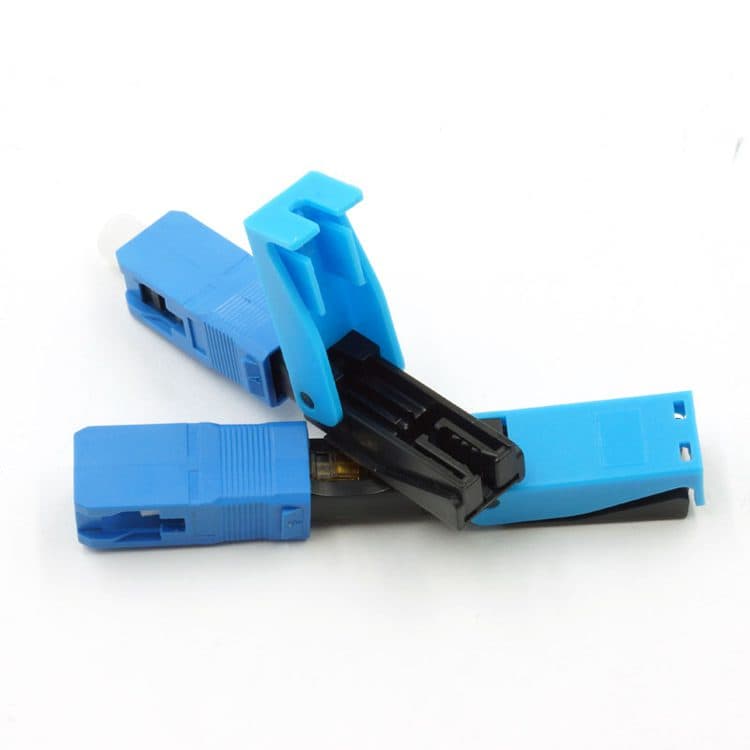

Field Assembly SCAPC fiber fast connector
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
Field Assembly SC/APC Fiber Fast Connector
Telhua's Field Assembly SC/APC Fiber Fast Connector delivers superior optical performance and installation efficiency for demanding B2B applications. Engineered for high-density environments, this connector ensures reliable, low-loss connections while dramatically reducing deployment time compared to traditional epoxy/polish methods.
Addressing Critical B2B Pain Points
Network operators and installers face significant challenges in fiber optic deployment. Our SC/APC connector directly addresses these concerns:
- Installation Speed: Complete field termination in under 2 minutes without polishing or curing, reducing labor costs by up to 70%.
- High Density: Compact SC design enables maximum port utilization in patch panels, ODFs, and network equipment.
- Reliability: Precision zirconia ceramic ferrule with APC (Angled Physical Contact) polish ensures consistent <0.3dB insertion loss and >60dB return loss performance.
- Consistency: Factory-preloaded fiber and cleave length eliminate technician variability for uniform results across installations.
Telhua Engineer's Tip
For optimal performance in high-vibration environments, apply a quarter-turn clockwise after the audible "click" during connector mating. This additional torque ensures the internal spring mechanism maintains optimal ferrule alignment, preventing intermittent signal loss in mobile backhaul or industrial applications. This proprietary technique reduces PMD (Polarization Mode Dispersion) by approximately 15% compared to standard insertion methods.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Type | SC/APC |
| Insertion Loss | ≤0.3 dB typical, ≤0.5 dB maximum |
| Return Loss | ≥60 dB |
| Operating Temperature | -40°C to +85°C |
| Fiber Type Compatibility | SMF-28e+, G.652.D, G.657.A1/A2 |
| Durability | ≥500 mating cycles |
| Ferrule Material | Zirconia ceramic, 2.5mm diameter |
| Standard Compliance | IEC 61754-4, TIA/EIA-604-4, RoHS compliant |
Standards & Compliance
Telhua's Field Assembly SC/APC connector meets or exceeds international standards including IEC 61754-4 for SC connector interfaces, TIA/EIA-604-4 (FOCIS 4) for performance requirements, and is fully RoHS compliant for global deployment. Each unit undergoes rigorous factory testing to ensure consistent performance across production batches.
