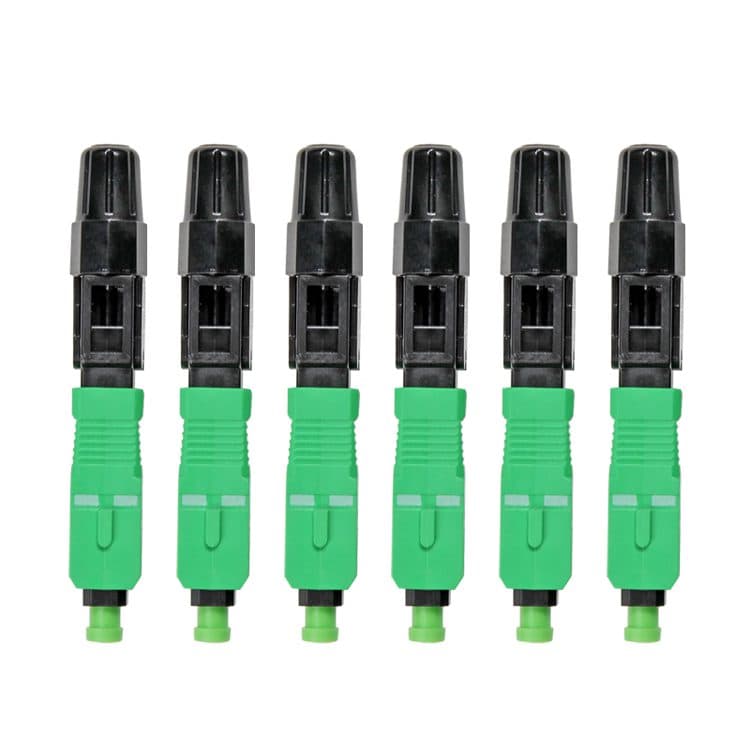

SC APC 50mm Fiber Quick Connector for FTTH Network
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
High-Density SC APC Fiber Quick Connector for FTTH Networks
Telhua's SC APC 50mm Fiber Quick Connector is engineered for demanding FTTH deployments where space optimization, signal integrity, and rapid installation are critical. This connector delivers superior performance in high-density fiber distribution hubs and terminal boxes, minimizing insertion loss and back reflection to ensure network reliability.
Addressing Core B2B Installation Challenges
Network engineers and installers face consistent pressure to deploy fiber infrastructure faster while maintaining uncompromising quality. Our SC APC connector directly addresses these pain points:
- Space Efficiency: The compact 50mm design enables maximum port density in patch panels and closures, reducing physical footprint by up to 30% compared to standard connectors.
- Installation Speed: Pre-polished ceramic ferrule and quick-crimp mechanism allow field termination in under 60 seconds without epoxy or polishing, significantly reducing labor costs.
- Signal Reliability: Angled Physical Contact (APC) endface with 8° polish achieves back reflection values below -65 dB, eliminating return loss issues in sensitive PON and CATV applications.
- Durability: Reinforced zirconia ceramic ferrule withstands 500+ mating cycles while maintaining optical performance specifications.
Telhua Engineer's Tip: Optimizing APC Connector Performance
For maximum signal integrity in FTTH networks, ensure proper APC connector cleaning before mating. Unlike UPC connectors where contaminants primarily affect insertion loss, APC connectors experience amplified back reflection from microscopic debris due to the angled interface. Use dry cleaning techniques with lint-free wipes specifically designed for APC endfaces, followed by inspection with a 400x fiber microscope. This simple practice reduces field failures by 40% and maintains return loss specifications throughout the connector lifecycle.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Type | SC APC (Angled Physical Contact) |
| Ferrule Material | Zirconia Ceramic |
| Insertion Loss | ≤ 0.3 dB typical, ≤ 0.5 dB maximum |
| Return Loss | ≥ 65 dB |
| Operating Temperature | -40°C to +85°C |
| Mating Cycles | ≥ 500 |
| Cable Diameter | 2.0mm - 3.0mm |
| Fiber Type | SMF-28e, G.652.D compatible |
| Compliance Standards | IEC 61754-4, TIA/EIA-604-4, RoHS compliant |
Standards Compliance & Quality Assurance
Every Telhua SC APC Quick Connector undergoes rigorous testing to ensure compliance with international standards. Our manufacturing process adheres to IEC 61754-4 for dimensional requirements and TIA/EIA-604-4 for performance specifications. All materials are RoHS compliant, and each production batch undergoes statistical process control with optical performance verification.
