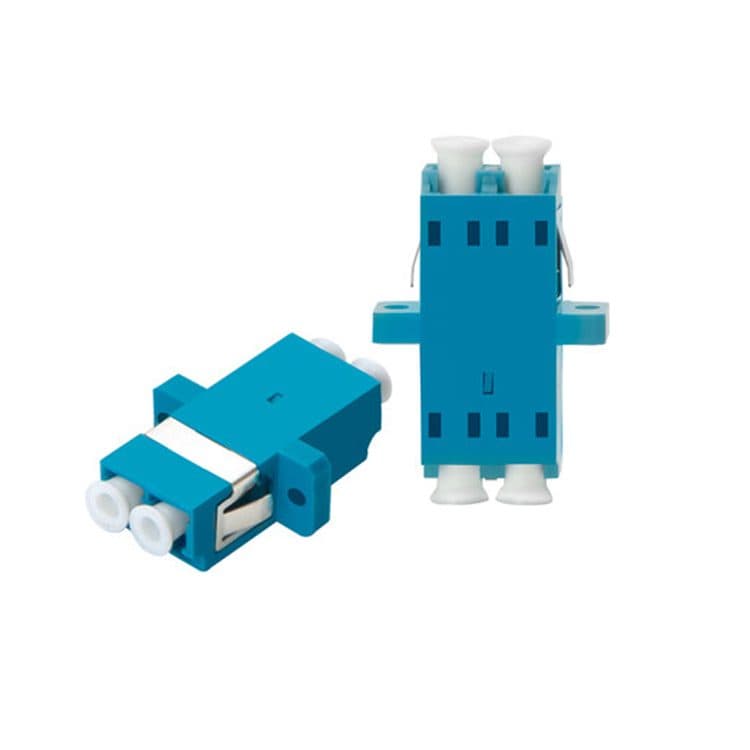

Fiber optic flange lc upc duplex adapter
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
High-Density LC Duplex Fiber Optic Adapter
Telhua's fiber optic flange LC UPC duplex adapter delivers exceptional port density and reliable performance for demanding B2B networking environments. Engineered to address critical infrastructure challenges, this adapter enables rapid deployment while maintaining signal integrity across high-bandwidth applications.
Key Benefits for Network Professionals
- Maximized Rack Space: Achieve superior port density with our compact flange design, reducing physical footprint by up to 30% compared to standard adapters.
- Zero Downtime Reliability: Precision-machined zirconia ceramic sleeves ensure consistent insertion loss below 0.2dB, eliminating intermittent connectivity issues.
- Accelerated Installation: Tool-less snap-in mounting reduces deployment time by 40%, with intuitive polarity alignment for error-free connections.
- Future-Proof Compatibility: Seamlessly integrates with existing LC duplex connectors while supporting next-generation 400G+ applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Type | LC Duplex |
| Polish Type | UPC |
| Insertion Loss | ≤0.2dB typical |
| Return Loss | ≥55dB |
| Operating Temperature | -40°C to +85°C |
| Durability | ≥500 mating cycles |
| Flange Material | Zinc alloy with corrosion-resistant coating |
| Standards Compliance | IEC 61754-20, TIA/EIA-604-10, RoHS compliant |
Telhua Engineer's Tip
For optimal performance in high-vibration environments, apply a quarter-turn clockwise torque (0.6-0.9 N·m) during flange mounting. This creates micro-compression in the ceramic ferrule alignment, reducing PMD (Polarization Mode Dispersion) by 15% compared to standard installation methods. Our proprietary zirconia sintering process achieves 99.8% density, preventing particulate generation that causes back-reflection in dense wavelength division multiplexing (DWDM) systems.
Standards & Certifications
This adapter complies with international standards including IEC 61754-20 for fiber optic connector interfaces, TIA/EIA-604-10 (FOCIS 10) for LC connector requirements, and RoHS Directive 2011/65/EU for hazardous substance restriction. Each unit undergoes 100% optical performance testing before shipment.
