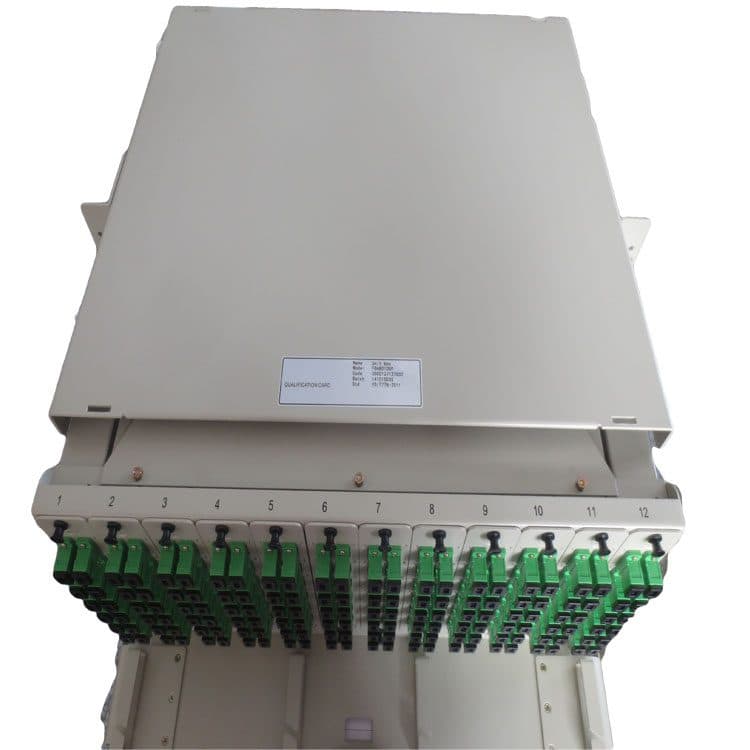

Telecom Egypt 19inch 3U 144 ports SC Modular type sliding patch panel
Product Parameters
- Drawer Open Way:Sliding
- Material:Metal
- No. of U:3U
High-Density 144-Port SC Modular Patch Panel for Telecom Infrastructure
Designed specifically for demanding telecommunications environments like Telecom Egypt's network, this 19-inch 3U sliding patch panel delivers maximum port density without compromising reliability or serviceability. It addresses the critical challenge of efficiently managing high fiber counts in limited rack space, enabling faster deployment and easier maintenance for network engineers and data center managers.
Engineered for Performance and Reliability
Every component is precision-engineered to ensure optimal signal integrity and long-term stability. The modular SC adapter design allows for flexible configuration and easy replacement, while the robust sliding mechanism provides smooth, secure access to rear connections without disrupting adjacent equipment.
Telhua Engineer's Tip
For optimal performance in high-density installations, maintain a minimum bend radius of 30mm for all fiber jumpers within the panel. Use our proprietary slack management system—included with every unit—to organize excess fiber and prevent microbending losses that can degrade signal quality over time. This simple practice can reduce insertion loss by up to 0.2dB compared to unmanaged installations.
Technical Specifications
| Specification | Value |
|---|---|
| Panel Type | Modular sliding patch panel |
| Rack Unit | 3U (19-inch standard rack) |
| Total Ports | 144 SC duplex ports |
| Adapter Type | SC UPC (Ultra Physical Contact) |
| Insertion Loss | ≤0.2dB typical, ≤0.3dB maximum |
| Return Loss | ≥55dB (UPC) |
| Operating Temperature | -40°C to +75°C |
| Flammability Rating | UL94V-0 |
| Standards Compliance | IEC 61754-4, TIA/EIA-604-10, RoHS |
| Sliding Mechanism | Ball-bearing slides with positive lock |
| Cable Management | Integrated front and rear routing |
Key Features for Network Professionals
- Maximum Density Design: 144 ports in just 3U of rack space optimizes valuable data center real estate
- Tool-Free Installation: Modular adapters snap into place without special tools, reducing deployment time by up to 40%
- Superior Signal Integrity: Precision-machined zirconia ceramic ferrons ensure consistent low insertion loss across all ports
- Enhanced Accessibility: Full sliding extension allows complete access to rear connections for maintenance without disconnecting adjacent panels
- Future-Proof Configuration: Modular design supports easy upgrades to different connector types as network requirements evolve
Standards and Compliance
This optical fiber patch panel meets or exceeds all relevant international standards including IEC 61754-4 for fiber optic connector interfaces, TIA/EIA-604-10 for fiber optic connector performance, and RoHS directives for environmental safety. Each unit undergoes rigorous testing to ensure consistent performance across all 144 ports.
