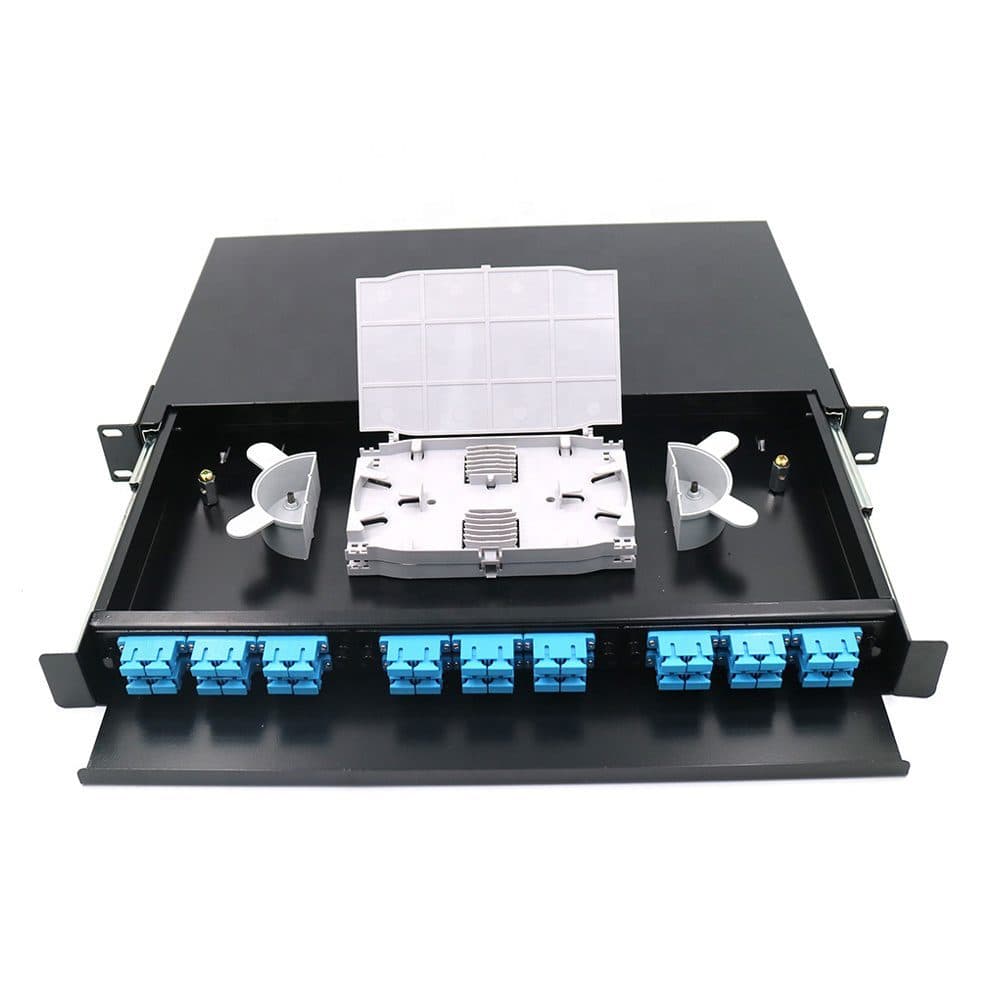

Telecom 36 Port ODF SC 1U 19inch rack mount sliding type Fiber Optic Patch Panel
Product Parameters
- Drawer Open Way:Sliding
- Material:Metal
- No. of U:1U
High-Density Fiber Management Solution
Telhua's Telecom 36 Port ODF SC 1U rack mount sliding type Fiber Optic Patch Panel delivers exceptional port density in minimal rack space. Designed for telecommunications providers, data centers, and enterprise networks, this panel optimizes fiber organization while ensuring reliable signal transmission. The sliding mechanism provides full front and rear access for efficient cable management and maintenance.
Engineered for B2B Network Challenges
Network administrators face constant pressure to maximize rack space utilization while maintaining accessibility and reliability. Traditional fixed panels create maintenance bottlenecks, and poor cable management leads to signal degradation and increased downtime.
Key Performance Advantages
- Space Optimization: 36 SC ports in 1U height maximizes port density per rack unit
- Maintenance Efficiency: Sliding design provides complete front and rear access without disrupting adjacent equipment
- Installation Speed: Pre-installed adapters and clear labeling reduce deployment time by up to 40%
- Signal Integrity: Precision-machined adapter alignment ensures consistent insertion loss below 0.2dB
- Cable Management: Integrated strain relief and routing channels prevent microbend-induced attenuation
Technical Specifications
| Specification | Value |
|---|---|
| Port Configuration | 36 SC duplex ports |
| Rack Unit Height | 1U (44.45mm) |
| Rack Compatibility | 19-inch standard racks |
| Mounting Type | Sliding, front-access design |
| Adapter Type | SC UPC, pre-installed |
| Insertion Loss | ≤0.2dB typical |
| Return Loss | ≥50dB (UPC) |
| Operating Temperature | -40°C to +75°C |
| Flammability Rating | UL94 V-0 |
| Compliance Standards | IEC 61754-4, TIA/EIA-604-10, RoHS compliant |
Telhua Engineer's Tip
For optimal performance in high-density installations, maintain a minimum bend radius of 30mm for all fiber jumpers when the panel is fully extended. The sliding mechanism incorporates a positive stop at 90° extension to prevent over-rotation that could stress fibers. When routing cables through the integrated management channels, alternate direction every 6-8 ports to balance tension distribution and prevent "bunching" that can impede future maintenance access.
Standards Compliance & Quality Assurance
This fiber patch panel meets rigorous international standards including IEC 61754-4 for fiber optic connector interfaces and TIA/EIA-604-10 for performance requirements. Manufactured with RoHS-compliant materials, the unit undergoes 100% optical performance testing before shipment. Each panel includes a unique serial number for full traceability and quality documentation.
