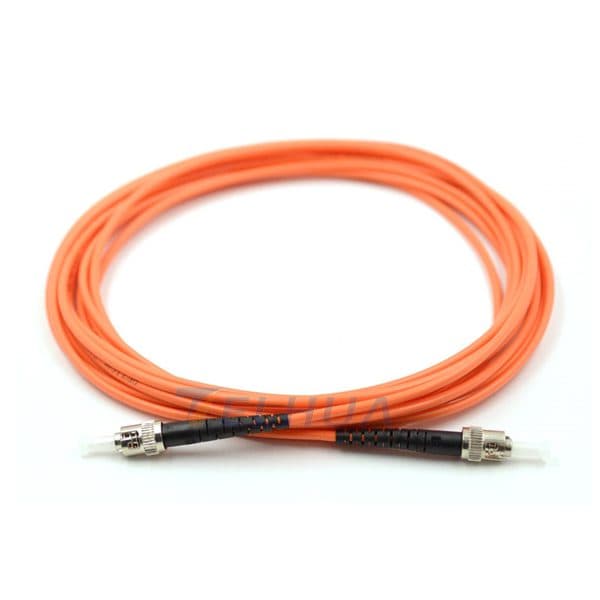

STPC-STPC SIMPLEX MULTI-MODE PATCH CORD
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
High-Density LC Fiber Optic Patch Cord for Multi-Mode Networks
Optimize your data center or enterprise network infrastructure with the Telhua STPC-STPC Simplex Multi-Mode Patch Cord. Engineered for B2B environments demanding maximum port density without compromising signal integrity, this LC fiber optic patch cord delivers reliable 10GbE performance over OM3/OM4 multi-mode fiber. Our precision-terminated connectors ensure low insertion loss and high return loss, minimizing network downtime and simplifying high-speed deployments.
Solve Critical B2B Infrastructure Challenges
Network managers face constant pressure to increase capacity while controlling costs and complexity. The Telhua STPC-STPC addresses these pain points directly:
- Space Optimization: LC duplex connectors provide double the port density compared to SC connectors, crucial for crowded racks and panels.
- Installation Efficiency: Pre-terminated and tested cords reduce deployment time by up to 70% compared to field termination.
- Network Reliability: Factory-polished connectors with ceramic ferrules ensure consistent optical performance and reduce maintenance incidents.
- Future-Proofing: OM4-grade fiber supports 10GbE up to 550 meters and is ready for 40/100GbE migration with parallel optics.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Type | LC to LC Simplex |
| Fiber Type | OM3/OM4 50/125μm Multi-Mode |
| Insertion Loss | ≤0.2 dB typical, ≤0.3 dB maximum |
| Return Loss | ≥35 dB (PC), ≥50 dB (UPC) |
| Operating Temperature | -20°C to +70°C |
| Flammability Rating | IEC 60332-1, RoHS Compliant |
| Standards Compliance | TIA/EIA-568-C.3, IEC 61754-20 |
| Available Lengths | 1m, 2m, 3m, 5m, 10m, custom lengths |
Telhua Engineer's Tip: Polishing Angle Optimization
For multi-mode applications exceeding 300 meters, specify UPC (Ultra Physical Contact) polishing on your LC fiber optic patch cords. While standard PC polishing provides adequate return loss for most deployments, UPC polishing achieves ≥50 dB return loss by creating an 8-degree angled ferrule endface. This minimizes back-reflection in longer cable runs, particularly important for 10GbE Ethernet and Fibre Channel networks where signal integrity is critical. Telhua's proprietary polishing process ensures this superior optical performance without compromising connector durability.
Standards and Compliance
All Telhua STPC-STPC patch cords undergo rigorous testing to ensure compliance with international standards. Each unit is 100% optically tested and certified to meet TIA/EIA-568-C.3 for structured cabling, IEC 61754-20 for LC connector interfaces, and RoHS directives for environmental safety. Our manufacturing process incorporates ISO 9001 quality management principles, providing traceability and consistency for enterprise procurement teams.
