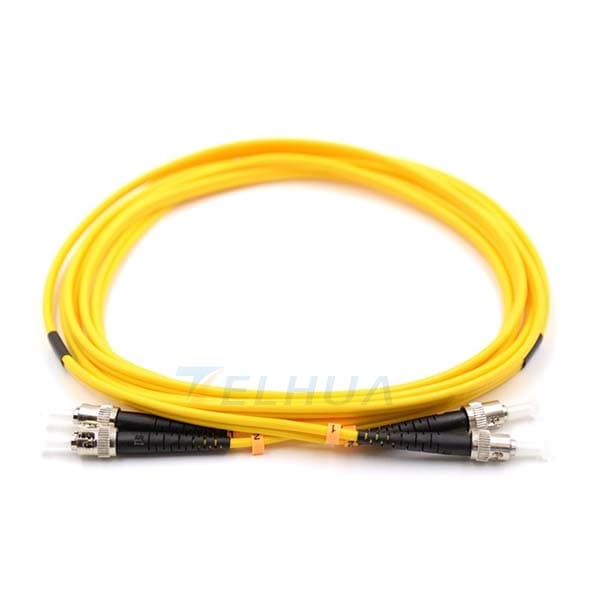

STPC-STPC DUPLEX SINGLE MODE ARMORED PATCH CORD
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
High-Density LC Duplex Armored Patch Cord Solution
Telhua's STPC-STPC Duplex Single Mode Armored Patch Cord delivers exceptional reliability and performance for mission-critical network infrastructure. Engineered for high-density environments, this armored LC patch cord provides superior protection against physical damage, ensuring uninterrupted data transmission in demanding B2B applications.
Engineered for B2B Network Challenges
Network managers face constant pressure to maximize rack space while maintaining signal integrity. Traditional unarmored patch cords are vulnerable to crushing, bending, and rodent damage, leading to costly downtime and maintenance. Our armored solution addresses these pain points with:
- Space Optimization: Slim armored design enables tighter bend radii without performance degradation, allowing more connections in limited space.
- Enhanced Reliability: Stainless steel armor provides crush resistance up to 1200N and protection against environmental hazards.
- Rapid Deployment: Pre-terminated with precision LC connectors, reducing installation time by up to 70% compared to field termination.
- Long-Term Stability: Corrosion-resistant materials ensure consistent performance in diverse operating environments.
Telhua Engineer's Tip: Armor Grounding Best Practices
For optimal performance in sensitive applications, ensure proper armor grounding. The stainless steel armor should be bonded to the rack's ground point using the integrated drain wire. This prevents electromagnetic interference (EMI) from affecting adjacent cables and maintains signal purity, particularly important in data centers with high power density. Our armor's unique helical design provides flexibility while maintaining continuous electrical contact for reliable grounding.
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | LC Duplex |
| Fiber Type | Single Mode (OS2) |
| Cable Type | Armored (STPC-STPC) |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Operating Temperature | -40°C to +85°C |
| Armor Material | Corrugated Stainless Steel |
| Crush Resistance | 1200N |
| Bend Radius | 10× cable diameter |
| Compliance Standards | IEC 61754-20, TIA/EIA-604-10, RoHS |
Standards Compliance & Quality Assurance
Every Telhua armored patch cord undergoes rigorous testing to ensure compliance with international standards. Our manufacturing process adheres to IEC 61754-20 for connector interfaces, TIA/EIA-604-10 for fiber optic connector performance, and RoHS directives for environmental safety. Each unit is 100% optically tested before shipment, guaranteeing the specified insertion loss and return loss parameters.
