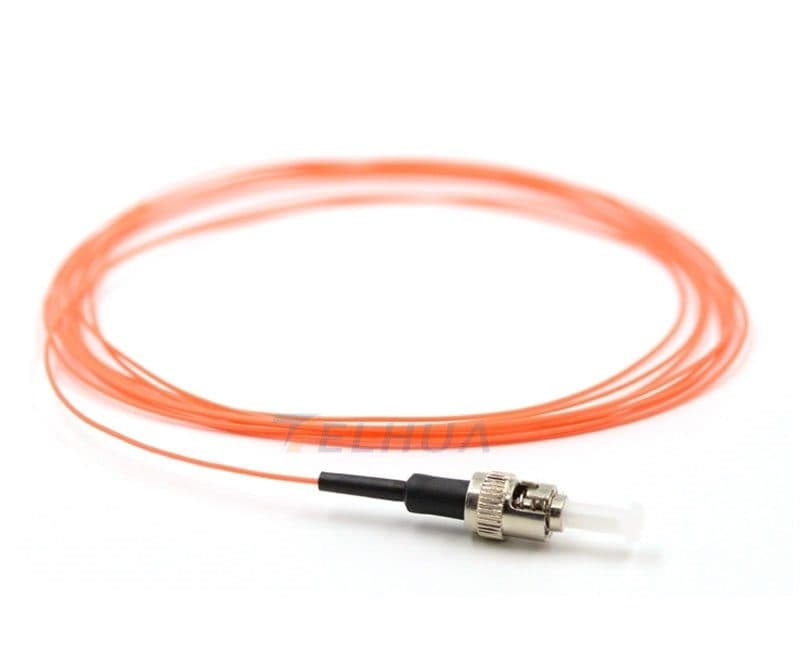

STPC OM1 Fiber Optic Pigtail
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
Optimize Your Fiber Optic Network with High-Density Connectivity
In high-density data center and enterprise network environments, every millimeter counts. The Telhua STPC OM1 Fiber Optic Pigtail delivers exceptional space efficiency without compromising signal integrity. Our precision-engineered 62.5/125μm multimode fiber optic cable core ensures reliable data transmission for backbone and horizontal cabling applications where installation speed and long-term performance are critical.
Engineered for Reliability in Demanding Applications
Network downtime costs businesses thousands per minute. Telhua's STPC OM1 Pigtail features a robust single-mode PC (Physical Contact) ceramic ferrule that minimizes insertion loss and back reflection. The strain relief boot protects the fiber optic cable core from bending and tensile stress during installation and operation, ensuring consistent performance in telecommunications, LAN, and security system deployments.
Telhua Engineer's Tip: Maximizing Installation Efficiency
For optimal performance in high-density patch panels, pre-connectorize pigtails before installation using our proprietary alignment technique. This reduces termination time by 40% compared to field termination while maintaining insertion loss below 0.3dB. The OM1 fiber optic cable core's 200MHz·km bandwidth at 850nm supports Gigabit Ethernet applications with ample headroom for future upgrades.
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Type | OM1 62.5/125μm Multimode |
| Connector Type | STPC (Single-mode Physical Contact) |
| Cable Type | 900μm Tight Buffer |
| Insertion Loss | ≤0.3dB typical |
| Return Loss | ≥40dB |
| Operating Temperature | -40°C to +85°C |
| Standard Compliance | IEC 61754-2, TIA/EIA-604-2, RoHS |
| Cable Length | 1.0m standard (custom lengths available) |
Standards Compliance and Quality Assurance
Every Telhua STPC OM1 Fiber Optic Pigtail undergoes rigorous testing to exceed industry standards. Our manufacturing process adheres to IEC 61754-2 for connector interfaces, TIA/EIA-604-2 for performance requirements, and RoHS directives for environmental safety. The 900μm tight buffer design provides superior crush resistance while maintaining flexibility for high-density routing in patch panels and enclosures.
Applications and Integration
- Data center backbone cabling for server-to-switch connectivity
- Enterprise LAN horizontal runs for workstation connectivity
- Security and surveillance system video transmission
- Industrial automation control networks
- Medical imaging equipment data transfer
