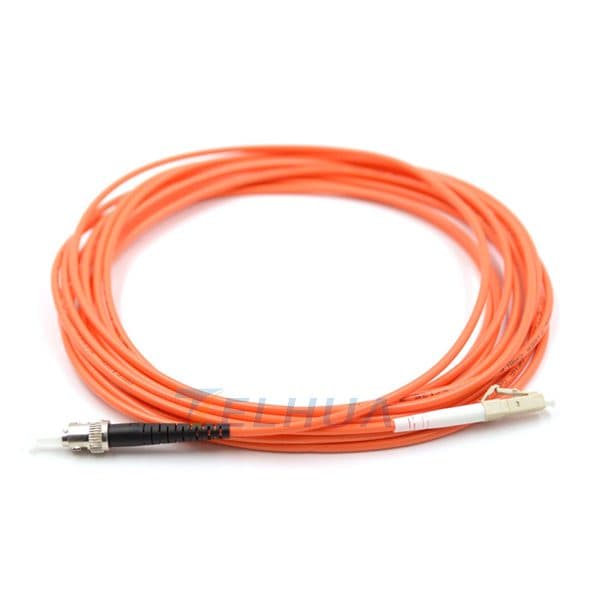

STPC-LCPC SIMPLEX MULTI-MODE PATCH CORD
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
High-Density LC Fiber Optic Patch Cord for Multi-Mode Networks
Telhua's STPC-LCPC Simplex Multi-Mode Patch Cord delivers exceptional performance in space-constrained data centers and enterprise networks. Engineered for maximum port density without compromising signal integrity, this patch cord enables efficient cable management while maintaining reliable 10Gb/s data transmission up to 300 meters with OM3 fiber. The precision-mated LC connectors ensure consistent low insertion loss across thousands of mating cycles, reducing network downtime and maintenance costs.
Key Benefits for Network Infrastructure
- High-density LC connectors optimize rack space utilization by up to 40% compared to traditional SC connectors
- Factory-terminated and tested for consistent performance, eliminating field termination errors
- Flexible 2.0mm cable diameter simplifies installation in congested pathways and patch panels
- Color-coded beige jacket (OM1), orange (OM2), aqua (OM3), or violet (OM4) for easy fiber type identification
- Precision ceramic ferrule alignment ensures <0.2dB insertion loss for optimal signal transmission
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | LC Duplex to LC Duplex |
| Fiber Type | 50/125μm or 62.5/125μm Multi-Mode |
| Cable Diameter | 2.0mm ± 0.1mm |
| Insertion Loss | ≤ 0.2dB typical, ≤ 0.3dB maximum |
| Return Loss | ≥ 20dB (PC), ≥ 35dB (UPC), ≥ 50dB (APC) |
| Operating Temperature | -20°C to +70°C |
| Standards Compliance | IEC 61754-20, TIA/EIA-604-10, RoHS Compliant |
| Durability | ≥ 500 mating cycles |
Telhua Engineer's Tip: Optimizing Bend Performance
For maximum reliability in high-density installations, maintain a minimum bend radius of 15mm during installation and 30mm during operation. Our patch cords feature enhanced strain relief boot designs that protect the fiber at critical stress points, preventing microbend losses that can degrade signal quality over time. When routing through cable managers, use alternating up/down patterns to prevent excessive pressure on individual cables.
Standards and Compliance
All Telhua STPC-LCPC patch cords undergo rigorous testing to ensure compliance with international standards. Each unit is 100% optically tested for insertion loss and return loss, with certification to IEC 61754-20 for connector interfaces and TIA/EIA-604-10 for performance requirements. Our manufacturing process adheres to RoHS directives, ensuring environmental responsibility without compromising performance.
