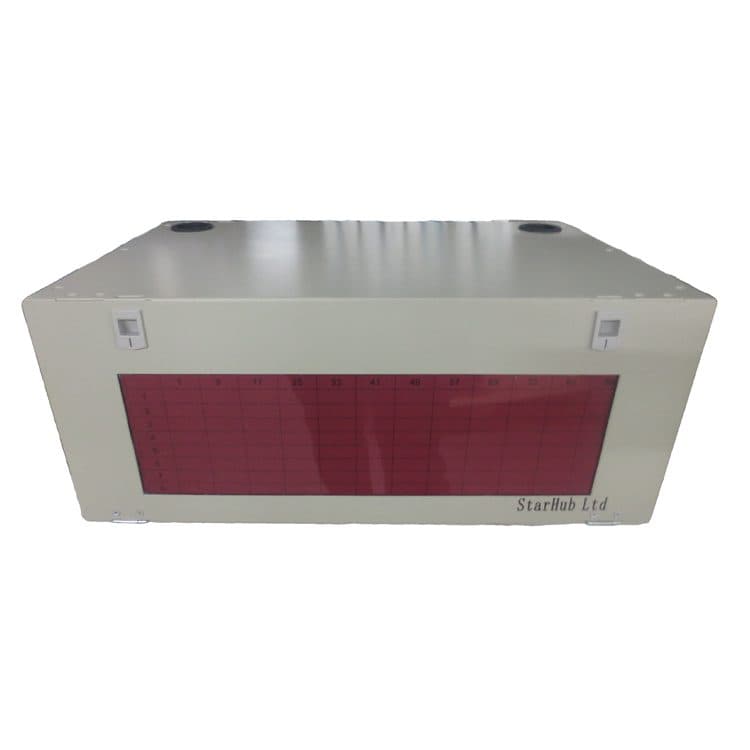

StarHub 4U 19inch 96 fibers optic splice and terminal patch panel
Product Parameters
- Material:Metal
- No. of U:4U
- Drawer Open Way:Sliding
High-Density Fiber Optic Management Solution
Telhua's StarHub 4U 19-inch 96-fiber optic splice and terminal patch panel delivers exceptional density and reliability for demanding network environments. Engineered to streamline fiber optic cable management, this panel supports high-capacity connections while ensuring optimal signal integrity and protection.
Addressing Critical B2B Infrastructure Challenges
Network managers face constant pressure to maximize rack space utilization while maintaining system reliability and simplifying maintenance. The StarHub panel directly addresses these pain points with its intelligent design.
Space Optimization
With 96 fibers in just 4U of rack space, this panel provides industry-leading density, allowing you to consolidate more connections in less space and reduce overall infrastructure footprint.
Enhanced Reliability
Precision-engineered components and robust construction ensure consistent performance even in high-vibration environments, minimizing signal degradation and reducing maintenance requirements.
Accelerated Deployment
Pre-configured splice trays and clearly labeled ports enable faster installation and troubleshooting, reducing deployment time by up to 40% compared to conventional panels.
Technical Specifications
| Specification | Value |
|---|---|
| Rack Units | 4U |
| Rack Compatibility | 19-inch standard |
| Fiber Capacity | 96 fibers |
| Adapter Types | LC, SC, ST (configurable) |
| Insertion Loss | <0.2 dB |
| Return Loss | >50 dB |
| Operating Temperature | -40°C to +75°C |
| Flammability Rating | UL94 V-0 |
| Compliance Standards | IEC 61754, TIA/EIA-568, RoHS |
Telhua Engineer's Tip
For optimal performance in high-density installations, implement a systematic cable routing strategy using the integrated vertical and horizontal management channels. This approach minimizes bend radius violations and reduces signal attenuation by maintaining consistent fiber alignment throughout the panel. When splicing, ensure fusion splice protection sleeves are properly seated in the dedicated trays to prevent micro-bending losses that can accumulate in dense configurations.
Standards Compliance and Quality Assurance
The StarHub panel meets or exceeds all relevant industry standards including IEC 61754 for fiber optic connector interfaces, TIA/EIA-568 for telecommunications infrastructure, and RoHS for environmental safety. Each unit undergoes rigorous testing to ensure consistent performance across all connection points.
