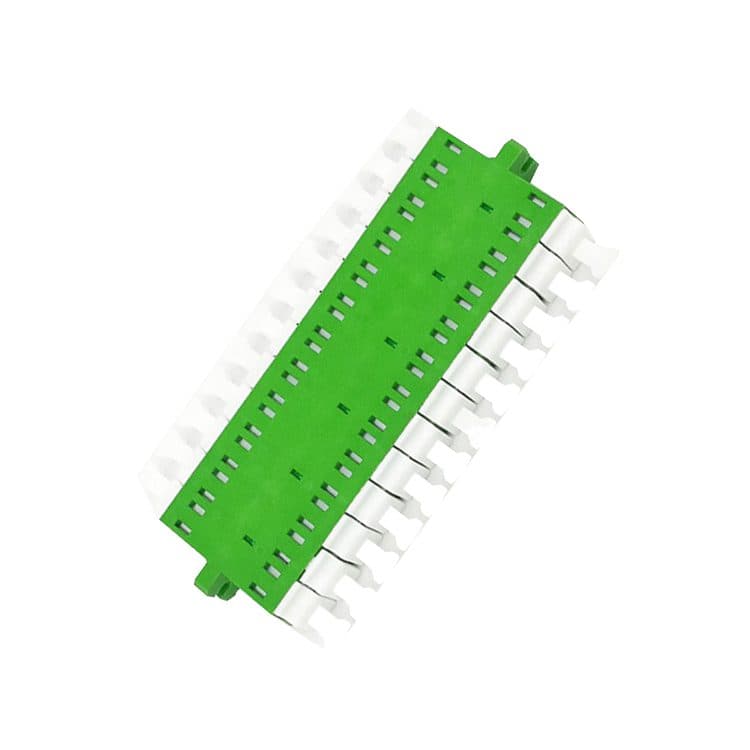

Small Dimension High density 12 Core LCAPC Adapter
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
Optimize Network Density with Precision Fiber Optic Connectivity
In today's data-intensive B2B environments, maximizing rack space while ensuring flawless signal transmission is critical. Telhua's Small Dimension High Density 12 Core LC/APC Adapter provides the solution, enabling efficient deployment of 12 core fiber cable connections in constrained spaces without compromising performance.
Engineered for High-Density Deployments
Traditional adapters consume valuable rack space, limiting scalability and increasing installation complexity. Our compact design addresses this by offering superior port density, allowing you to connect more 12 core fiber cable runs in the same footprint. This reduces physical infrastructure costs and simplifies cable management in data centers, telecom hubs, and enterprise networks.
Uncompromising Reliability for Critical Networks
Network downtime from poor connectivity is costly. This adapter features precision-machined zirconia ceramic sleeves and a robust housing that maintains exact fiber alignment, minimizing insertion loss and back reflection. The angled physical contact (APC) polish ensures optimal performance for single-mode applications, providing the reliability your high-bandwidth operations demand.
Accelerate Installation and Maintenance
Time-consuming installations delay network rollouts. The adapter's intuitive push-pull design and clear port labeling enable rapid, error-free connections of 12 core fiber cable assemblies. This streamlines both initial deployment and ongoing maintenance, reducing labor hours and operational disruptions.
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | LC/APC Adapter (Duplex) |
| Fiber Count | 12 Core |
| Insertion Loss | ≤ 0.2 dB |
| Return Loss | ≥ 65 dB (APC) |
| Operating Temperature | -40°C to +85°C |
| Durability | > 500 mating cycles |
| Housing Material | PBT (UL94 V-0) |
| Ferrule Material | Zirconia Ceramic |
| Compliance | IEC 61754-20, TIA/EIA-604-10, RoHS |
Telhua Engineer's Tip
For optimal performance with 12 core fiber cable installations, ensure proper cleaning of both adapter sleeves and connector ferrules before mating. Use a combination of dry cleaning cassettes for loose debris followed by isopropyl alcohol wipes for contaminants. This prevents micro-scratches on ceramic surfaces that can increase insertion loss by up to 0.3 dB over time. Always verify polarity alignment using our color-coded housing indicators to avoid cross-connect errors in high-density panels.
Standards Compliance and Quality Assurance
This adapter meets rigorous international standards including IEC 61754-20 for fiber optic connector interfaces, TIA/EIA-604-10 (FOCIS 10) for LC connectors, and RoHS directives for environmental safety. Each unit undergoes 100% optical performance testing to ensure consistent quality across production batches.
