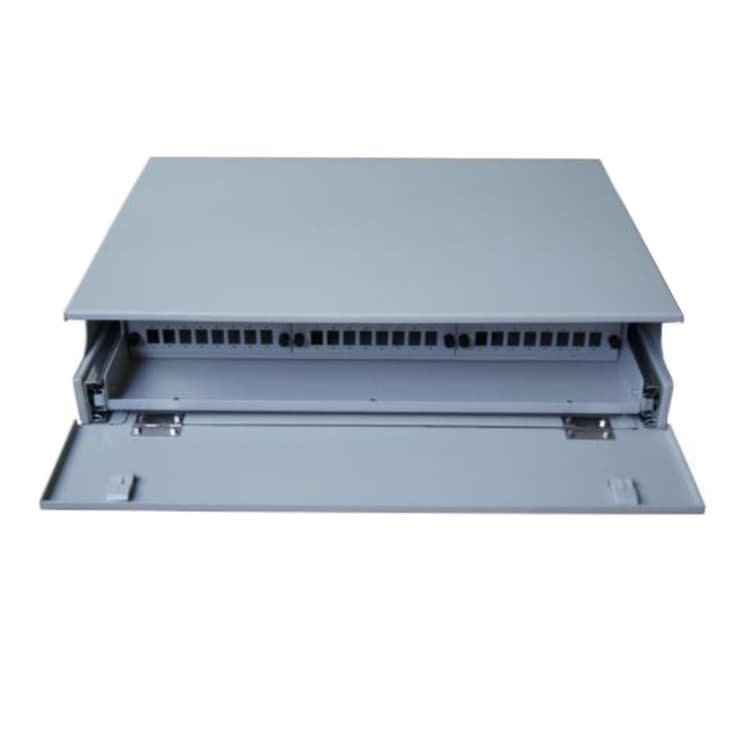

TS-ODF Slidable Rack-mount Fiber Optic Distribution Frame
Product Parameters
- Drawer Open Way:Sliding
- Material:Metal
- No. of U:3U
Optimize Your Fiber Infrastructure with High-Density Rack-Mount Design
Engineered for demanding data center and telecom environments, the TS-ODF Slidable Rack-mount Fiber Optic Distribution Frame delivers exceptional port density and reliable fiber management in a compact, rack-optimized form factor. This solution addresses critical B2B challenges by maximizing rack space utilization while ensuring secure, organized fiber routing to minimize signal loss and maintenance downtime.
Key Features for Professional Network Deployment
- High-Density Configuration: Supports up to 576 LC ports or 288 SC ports in a single 1U rack space, dramatically increasing capacity without expanding physical footprint.
- Tool-Free Slidable Tray Design: Enables smooth, full-extension access to rear connections, reducing installation and maintenance time by up to 40% compared to fixed panels.
- Enhanced Cable Management: Integrated strain relief brackets, bend radius protectors, and clear labeling fields prevent fiber damage and simplify troubleshooting.
- Robust Construction: Cold-rolled steel chassis with corrosion-resistant coating ensures long-term durability in varied operating environments.
Telhua Engineer's Tip: Minimizing Insertion Loss in High-Density Setups
When deploying the TS-ODF at maximum port density, ensure proper fiber slack management by leaving a minimum 30cm service loop on both sides of the tray. Use velcro ties instead of zip ties to avoid microbending, which can cause signal degradation exceeding 0.2dB. For critical backbone links, implement a polarity verification procedure using an optical power meter after each connection to maintain insertion loss below 0.3dB as per TIA/EIA-568 standards.
Technical Specifications
| Specification | Value |
|---|---|
| Rack Unit (RU) Height | 1U |
| Port Capacity (Max) | 576 LC / 288 SC |
| Insertion Loss | ≤ 0.2dB |
| Return Loss | ≥ 55dB (PC), ≥ 60dB (APC) |
| Operating Temperature | -40°C to +75°C |
| Compliance Standards | IEC 61754, TIA/EIA-568, RoHS |
| Chassis Material | Cold-rolled steel (1.2mm thickness) |
| Sliding Mechanism | Full extension, 19" rack compatible |
Industry-Standard Compliance and Reliability
The TS-ODF meets rigorous international standards including IEC 61754 for fiber optic connector interfaces, TIA/EIA-568 for telecommunications infrastructure, and RoHS directives for environmental safety. Each unit undergoes comprehensive factory testing for optical performance, mechanical durability, and thermal stability, ensuring consistent operation in mission-critical applications from enterprise networks to carrier-grade installations.
