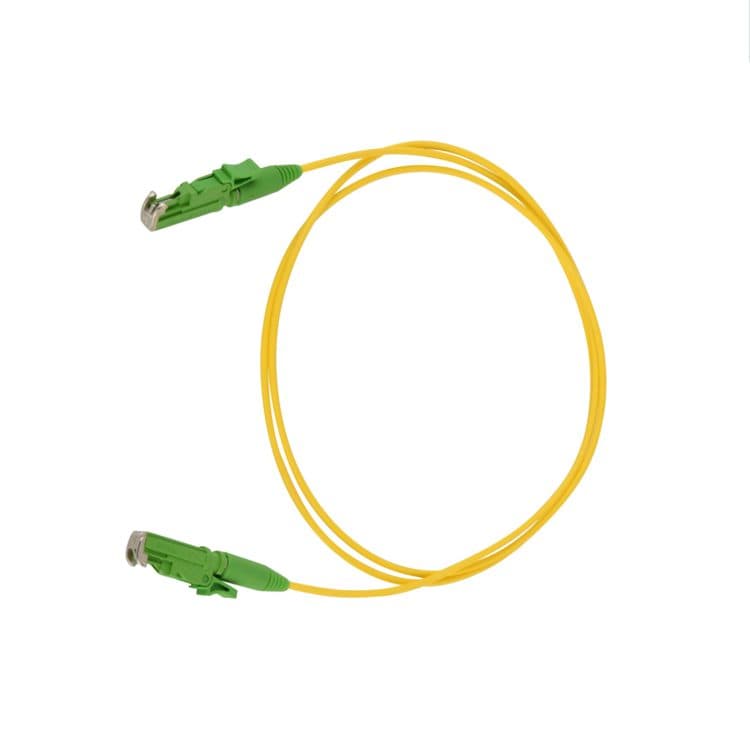

Single Mode E2000/APC-E2000/APC Fiber Optic Patch Cord
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
High-Density Single Mode E2000/APC Fiber Optic Patch Cord
Engineered for demanding B2B network environments, Telhua's Single Mode E2000/APC-E2000/APC Fiber Optic Patch Cord delivers exceptional signal integrity and reliability in high-density applications. This precision-crafted patch cord minimizes insertion loss and back reflection, ensuring optimal performance for data centers, telecommunications infrastructure, and enterprise networks where consistent throughput is critical.
Addressing Key B2B Installation Challenges
Network engineers and installers face significant challenges in modern fiber deployments:
- Density Constraints: Maximizing port utilization without compromising cable management or airflow.
- Reliability Concerns: Maintaining signal integrity over time with minimal degradation or downtime.
- Installation Efficiency: Reducing deployment time while ensuring first-time-right connections.
Our E2000/APC patch cords feature a compact connector design that supports high-density configurations while maintaining excellent optical performance. The angled physical contact (APC) polish provides superior return loss characteristics compared to standard PC or UPC connectors, making these cords ideal for applications requiring minimal back reflection, such as CATV, FTTx, and high-speed data transmission systems.
Telhua Engineer's Tip: Optimizing Bend Performance
For installations requiring tight bends or limited space, ensure the minimum bend radius is maintained throughout the cable path. Our patch cords utilize enhanced bend-insensitive fiber that maintains signal integrity at tighter radii than standard single-mode fiber. When routing through high-density panels, use radius-limiting guides rather than sharp edges to prevent microbending losses that can accumulate over time and degrade network performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Type | E2000/APC to E2000/APC |
| Fiber Type | Single Mode (OS2) |
| Insertion Loss | ≤0.3 dB typical, ≤0.5 dB maximum |
| Return Loss | ≥65 dB |
| Operating Temperature | -40°C to +85°C |
| Cable Diameter | 2.0 mm or 3.0 mm options |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Standards Compliance | IEC 61754-20, TIA/EIA-604-20, RoHS |
All Telhua fiber optic patch cords undergo rigorous testing to ensure compliance with international standards including IEC, TIA/EIA, and RoHS directives. Each unit is individually tested and certified to meet or exceed published specifications, providing assurance of consistent performance across your network infrastructure.
