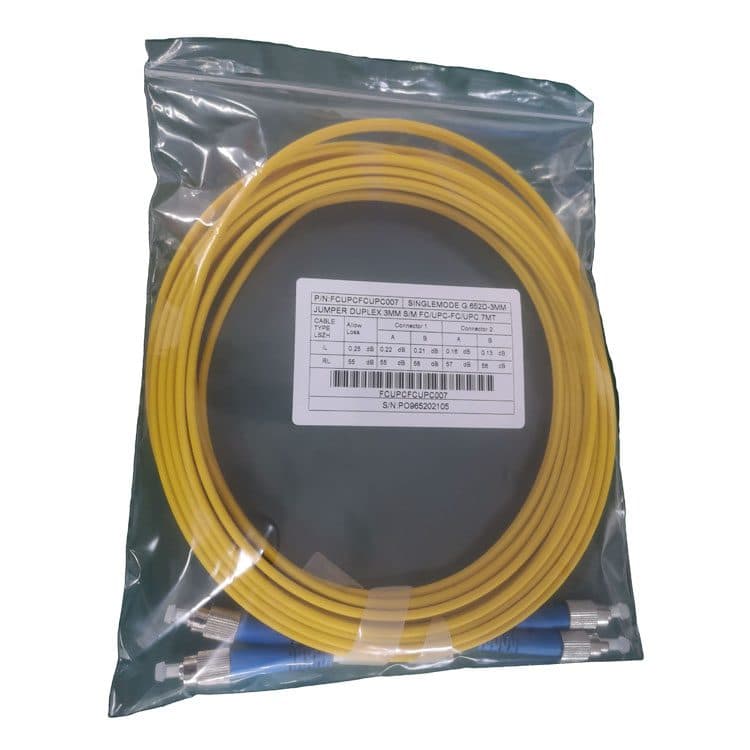

Short Boot Duplex FCUPC-FCUPC Fiber Optic Patch Cord
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
High-Density LC Fiber Optic Patch Cord with Short Boot Design
Engineered for demanding data center and enterprise network environments, Telhua's Short Boot Duplex FC/UPC-FC/UPC Fiber Optic Patch Cord delivers exceptional performance in space-constrained installations. This premium LC patch cord is designed to maximize port density while ensuring reliable, low-loss connectivity for your critical fiber infrastructure.
Solve Your Critical Infrastructure Challenges
Network engineers and data center managers face constant pressure to optimize rack space while maintaining flawless connectivity. Our short boot LC patch cords address these core challenges:
- Maximized Port Density: The compact short boot design allows tighter bending and easier cable management in high-density panels and cassettes, enabling more connections per rack unit.
- Enhanced Reliability: Precision-polished FC/UPC connectors ensure consistent, low insertion loss and high return loss, minimizing signal degradation and network downtime.
- Faster Installation & Maintenance: Reduced boot length simplifies handling in congested spaces, speeding up deployment and reducing labor costs during upgrades or repairs.
Telhua Engineer's Tip
For optimal performance in high-density applications, maintain a minimum bend radius of 15mm (0.6 inches) even with the short boot design. While the boot allows tighter initial clearance, exceeding this radius during permanent installation can induce microbending losses that degrade signal quality over time. Use our bend-insensitive fiber option (available on request) for installations requiring extreme flexibility.
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | LC Duplex to LC Duplex |
| Fiber Type | Singlemode (OS2) |
| Polish Type | FC/UPC (Ultra Physical Contact) |
| Insertion Loss | ≤ 0.2 dB typical, ≤ 0.3 dB maximum |
| Return Loss | ≥ 55 dB |
| Operating Temperature | -40°C to +85°C |
| Cable Diameter | 2.0 mm |
| Boot Type | Short boot (8mm length) |
| Standards Compliance | IEC 61754-20, TIA/EIA-604-10, RoHS |
Quality & Compliance Assurance
Every Telhua LC fiber optic patch cord undergoes rigorous testing to ensure compliance with international standards. Our manufacturing process adheres to IEC 61754-20 for connector interfaces, TIA/EIA-604-10 (FOCIS 10) for performance requirements, and RoHS directives for environmental safety. Each unit is 100% optically tested before shipment, with test results available upon request.
