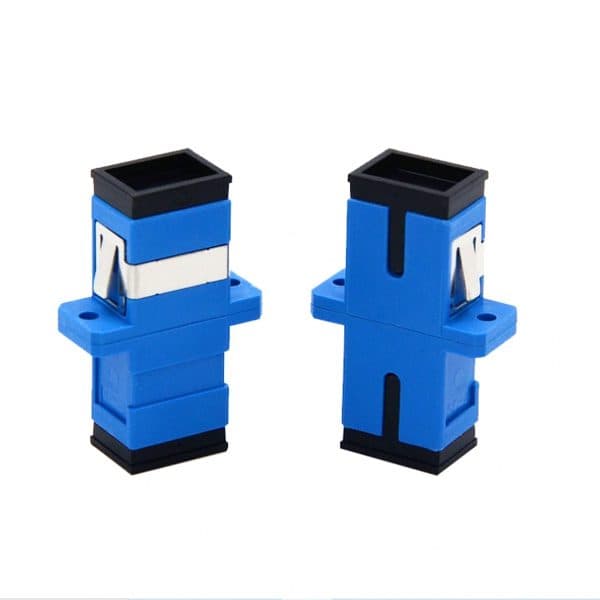

SCPC Fiber Optic Adaptor Simplex Single Mode
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
High-Density Single Mode Fiber Connectivity Solution
Telhua's SCPC Fiber Optic Adaptor Simplex Single Mode delivers exceptional port density and reliable performance for demanding enterprise and data center environments. Engineered to maximize rack space utilization while maintaining signal integrity, this adaptor addresses critical B2B infrastructure challenges including limited physical space, installation time constraints, and long-term network reliability requirements.
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | SC/PC |
| Fiber Type | Single Mode |
| Insertion Loss | ≤0.2 dB |
| Return Loss | ≥55 dB |
| Operating Temperature | -40°C to +85°C |
| Durability | >500 mating cycles |
| Flammability Rating | UL94V-0 |
| Compliance Standards | IEC 61754-4, TIA/EIA-604-4, RoHS |
Key Features for Enterprise Networks
Maximized Port Density
Our compact simplex design enables up to 48 ports per 1U panel, optimizing rack space utilization for high-density fiber deployments. The precision-machined housing ensures proper alignment without port crowding issues that plague inferior adaptors.
Enhanced Signal Integrity
Precision ceramic ferrule technology maintains consistent optical performance with insertion loss below 0.2 dB, ensuring minimal signal degradation across your network infrastructure. The anti-rotation design prevents connector misalignment during installation and maintenance.
Streamlined Installation
Tool-less snap-in mounting reduces installation time by up to 40% compared to traditional screw-mounted adaptors. Color-coded identification (blue for single mode) simplifies fiber management and reduces configuration errors during deployment.
Telhua Engineer's Tip
For optimal performance in high-density single mode fiber patch panels, ensure proper cleaning of both adaptor ferrules and connector end-faces before mating. Use Telhua's recommended cleaning tools and inspect with a fiber microscope to verify cleanliness. This simple pre-installation step can reduce insertion loss by up to 0.1 dB and prevent contamination-related failures that account for over 60% of field service calls.
Compliance and Quality Assurance
All Telhua SCPC Fiber Optic Adaptors undergo rigorous testing to exceed industry standards including IEC 61754-4 for dimensional requirements, TIA/EIA-604-4 for performance specifications, and RoHS compliance for environmental safety. Each unit is factory-tested and certified to deliver consistent optical performance across production batches.
