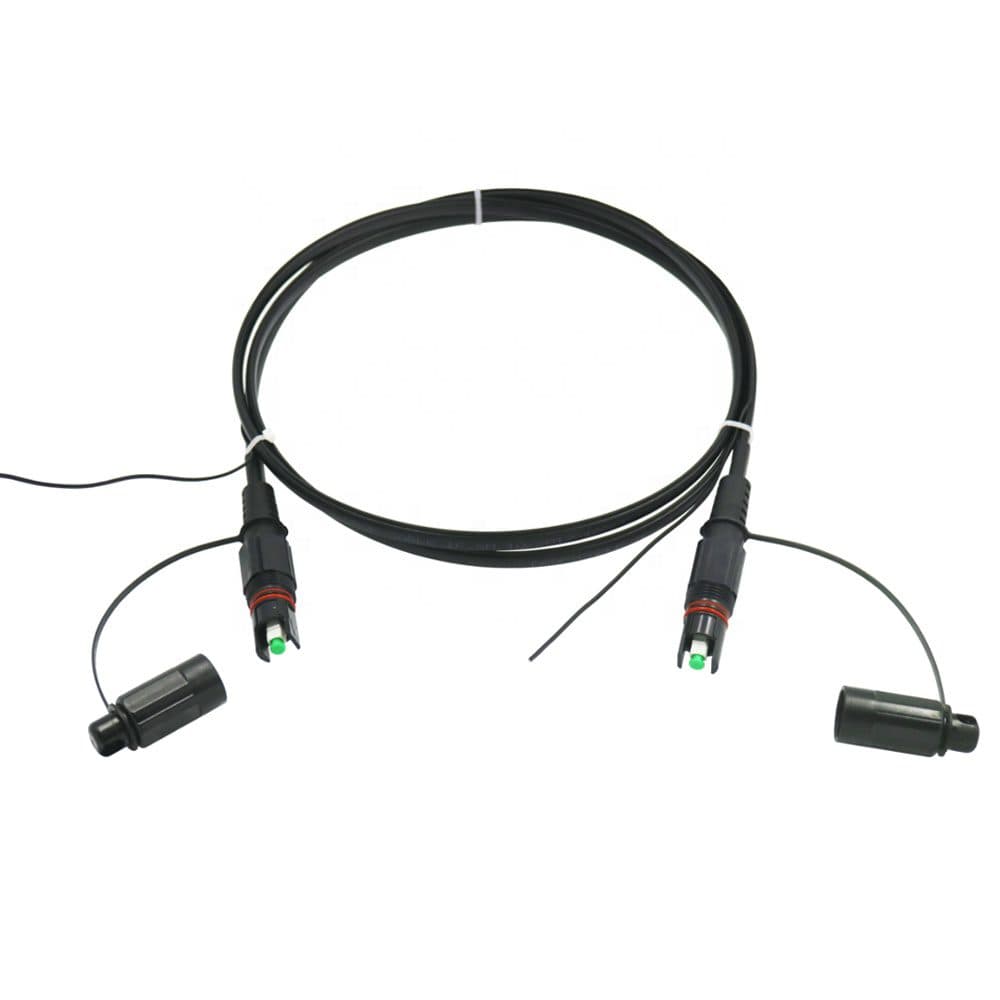

SCAPC Optitap outdoor IP67 waterproof Optical patchcord
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
Engineered for Demanding Outdoor Fiber Optic Deployments
Telhua's SCAPC Optitap outdoor IP67 waterproof optical patchcord delivers exceptional performance in challenging environments where standard fiber cable connectors fail. Designed for telecommunications, data centers, and industrial applications, this ruggedized solution ensures uninterrupted signal transmission through rain, dust, and temperature extremes.
Solve Critical B2B Infrastructure Challenges
Network engineers and installers face significant hurdles with outdoor fiber connections. Our SCAPC Optitap addresses these pain points directly:
- Density Optimization: Compact SC/APC connector design maximizes port utilization in crowded outdoor enclosures and termination panels
- Reliability Assurance: IP67-rated waterproof construction prevents moisture ingress that causes signal degradation and connector failure
- Installation Efficiency: Pre-terminated design eliminates field polishing, reducing deployment time by up to 70% compared to field-installed alternatives
- Long-Term Performance: Corrosion-resistant materials maintain optical performance through temperature cycles from -40°C to +85°C
Telhua Engineer's Tip: Maximizing Waterproof Integrity
For optimal IP67 performance, ensure the connector boot is fully seated against the adapter before tightening the coupling nut. Apply gentle clockwise rotation until you feel distinct resistance, then complete one additional quarter-turn. This creates the precise compression needed for the silicone seal to form a complete moisture barrier without damaging the ferrule alignment.
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | SC/APC (Angled Physical Contact) |
| Waterproof Rating | IP67 (Immersion up to 1m for 30 minutes) |
| Insertion Loss | ≤0.3 dB typical, ≤0.5 dB maximum |
| Return Loss | ≥65 dB (APC polished) |
| Operating Temperature | -40°C to +85°C |
| Cable Type | Single-mode OS2 (9/125μm) |
| Cable Jacket | LSZH (Low Smoke Zero Halogen) |
| Standard Compliance | IEC 61754-4, TIA/EIA-604-4, RoHS compliant |
| Durability | ≥500 mating cycles |
| Pulling Tension | 100 N maximum during installation |
Industry Standards and Quality Assurance
Every SCAPC Optitap patchcord undergoes rigorous testing to exceed industry standards. Our manufacturing process ensures compliance with IEC 61754-4 for dimensional requirements, TIA/EIA-604-4 for performance parameters, and RoHS directives for environmental safety. Each unit is individually tested for insertion loss and return loss before shipment.
