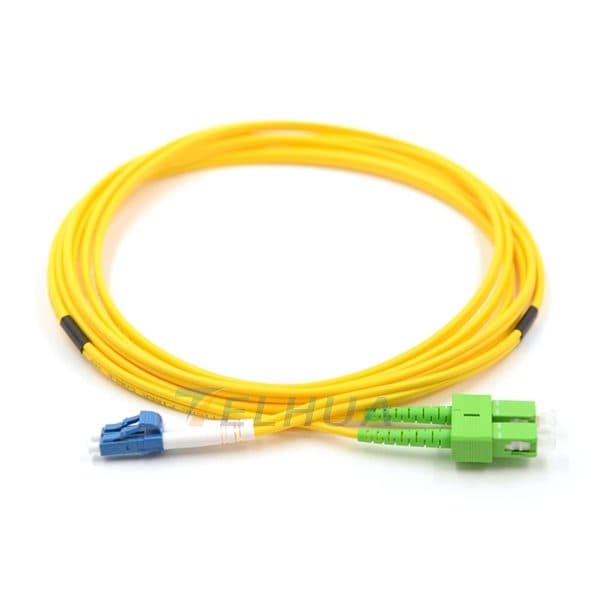

SCAPC-LCUPC DUPLEX PATCH CORD
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
High-Density LC Duplex Patch Cord for Demanding Network Environments
Telhua's SCAPC-LCUPC Duplex Patch Cord delivers exceptional performance in high-density fiber optic installations where space optimization and signal integrity are critical. Engineered with precision LC connectors and UPC polished end-faces, this patch cord minimizes insertion loss while maximizing return loss, ensuring reliable data transmission across your network infrastructure.
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | LC Duplex |
| Polish Type | UPC |
| Fiber Type | Single-mode (OS2) or Multimode (OM1/OM2/OM3/OM4) |
| Cable Type | 2.0mm or 3.0mm PVC/LSZH |
| Insertion Loss | ≤0.2dB (typical), ≤0.3dB (maximum) |
| Return Loss | ≥50dB (UPC) |
| Operating Temperature | -20°C to +70°C |
| Standard Compliance | IEC 61754-20, TIA/EIA-604-10, RoHS |
Engineered for B2B Network Challenges
Space Optimization in High-Density Environments
The compact LC connector design enables 40-50% higher port density compared to traditional SC connectors, allowing you to maximize rack space utilization in data centers and telecom facilities. Our duplex configuration maintains proper polarity alignment while reducing cable management complexity.
Enhanced Reliability and Performance Consistency
Each patch cord undergoes rigorous testing to ensure insertion loss remains below 0.3dB maximum, with typical performance at 0.2dB or better. The UPC polish provides superior return loss characteristics (≥50dB), minimizing signal reflections that can degrade network performance in high-speed applications.
Streamlined Installation and Maintenance
The push-pull LC connector design enables quick, tool-free connections and disconnections, reducing installation time by approximately 30% compared to screw-type connectors. Color-coded connectors (beige for single-mode, aqua for OM3/OM4) prevent installation errors and simplify network documentation.
Telhua Engineer's Tip
For optimal performance in 100G+ applications, ensure proper bend radius management during installation. While our patch cords exceed the minimum bend radius requirements, maintaining a bend radius of at least 30mm during cable routing prevents microbend-induced attenuation that can accumulate across multiple connections. For high-density panels, consider our 1.6mm slim boot variant which provides additional clearance for adjacent connectors without compromising performance.
Compliance and Quality Assurance
All SCAPC-LCUPC Duplex Patch Cords comply with international standards including IEC 61754-20 for connector interfaces, TIA/EIA-604-10 for fiber optic connector performance, and RoHS directives for environmental safety. Each unit undergoes 100% optical testing and includes individual test results with traceable serialization for quality assurance and inventory management.
