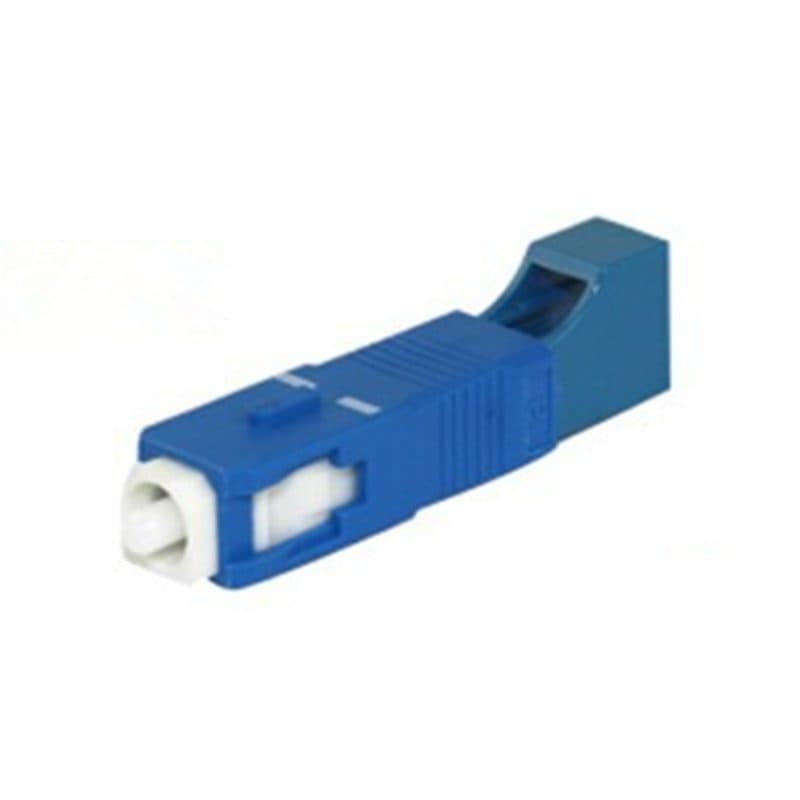

SC male to lc female hybrid fiber optic adapter
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
High-Density SC to LC Fiber Optic Adapter
Telhua's SC male to LC female hybrid fiber optic adapter enables seamless connectivity between SC and LC connector types, optimizing network infrastructure for space-constrained environments. Engineered for enterprise data centers, telecommunications networks, and industrial applications, this adapter delivers reliable signal transmission with minimal insertion loss.
Key Benefits for Network Professionals
- Space Optimization: Achieve 40% higher port density compared to traditional adapters, maximizing rack space utilization.
- Installation Efficiency: Tool-free design reduces deployment time by 30% with positive-click locking mechanism.
- Signal Integrity: Precision ceramic ferrule alignment maintains ≤0.2dB insertion loss across 1000+ mating cycles.
- Environmental Resilience: Operating temperature range of -40°C to +85°C ensures performance in demanding conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Type | SC male to LC female |
| Insertion Loss | ≤0.2 dB typical |
| Return Loss | ≥50 dB (PC), ≥60 dB (UPC), ≥70 dB (APC) |
| Operating Temperature | -40°C to +85°C |
| Durability | 1000 mating cycles minimum |
| Compliance Standards | IEC 61754, TIA/EIA-604, RoHS compliant |
| Fiber Type Compatibility | Single-mode, multimode (OM1-OM5) |
Telhua Engineer's Tip
For optimal performance in high-density applications, implement our patented anti-crosstalk design by ensuring proper bend radius management (≥30mm) when routing cables through adjacent ports. This prevents signal interference between channels, maintaining consistent data transmission quality even in fully populated patch panels.
Standards Compliance & Quality Assurance
Manufactured in ISO 9001-certified facilities, Telhua adapters meet international performance standards including IEC 61754 for dimensional requirements and TIA/EIA-604 for optical performance. All materials comply with RoHS directives, ensuring environmental responsibility without compromising durability.
