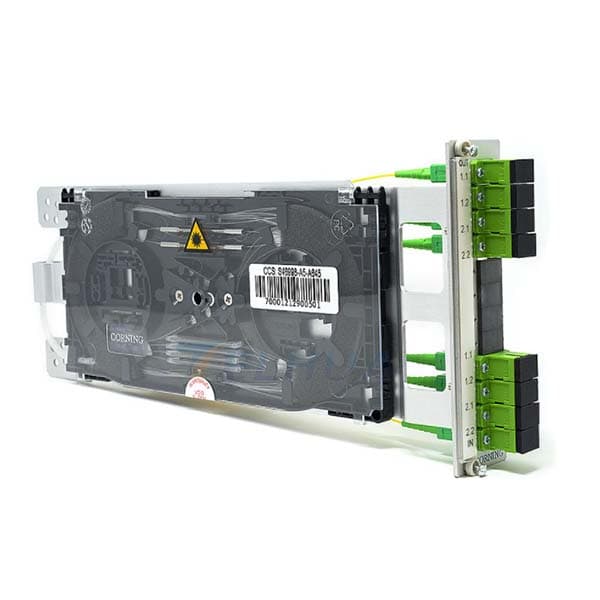

SC/APC Fiber Optic Splitter ODF 2×2
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
High-Density Fiber Optic Splitter Solution
Optimize your network infrastructure with the Telhua SC/APC Fiber Optic Splitter ODF 2×2. Engineered for demanding B2B environments, this 2U patch panel integrates a 2×2 splitter directly into a compact, rack-mountable unit, maximizing port density while minimizing footprint. It addresses critical pain points by eliminating the need for separate splitter modules and patch panels, reducing installation time by up to 40% and potential points of failure. Built for reliability, it ensures consistent signal distribution for FTTx, PON, and CATV applications.
Key Features for Network Professionals
- Space-Efficient Design: The 2U form factor provides exceptional port density, allowing you to deploy more connections per rack unit and optimize valuable data center or cabinet space.
- Enhanced Reliability: Pre-installed and tested 2×2 PLC splitter minimizes insertion loss and back reflection. The robust SC/APC connector interface ensures superior optical performance and long-term stability.
- Streamlined Deployment: Fully pre-terminated and housed within a standard ODF frame. This plug-and-play design accelerates installation, reduces labor costs, and simplifies maintenance and upgrades.
- Universal Compatibility: Designed to seamlessly integrate with existing SC/APC infrastructure, supporting wavelengths from 1260nm to 1650nm for broad application flexibility.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | SC/APC Splitter ODF 2×2 |
| Form Factor / Height | 19" Rack Mount, 2U |
| Splitter Type & Ratio | PLC (Planar Lightwave Circuit), 2×2 (50:50) |
| Connector Type | SC/APC (Angled Physical Contact) |
| Operating Wavelength | 1260 nm ~ 1650 nm |
| Insertion Loss (Typical) | ≤ 3.8 dB |
| Uniformity | ≤ 0.8 dB |
| Return Loss | ≥ 55 dB |
| Directivity | ≥ 55 dB |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Standards Compliance | IEC 61753-1, TIA/EIA-568-C.3, RoHS |
Telhua Engineer's Tip
For optimal performance in high-density deployments, pay close attention to bend radius management within the ODF. While the unit is designed for tight spaces, ensure all internal fiber slack is coiled with a minimum bend radius of 30mm. Using a 30mm mandrel when dressing cables prevents micro-bends that can induce additional, localized insertion loss, especially critical in splitter applications where signal margin is paramount. This simple practice during installation preserves the designed optical budget and ensures long-term reliability.
