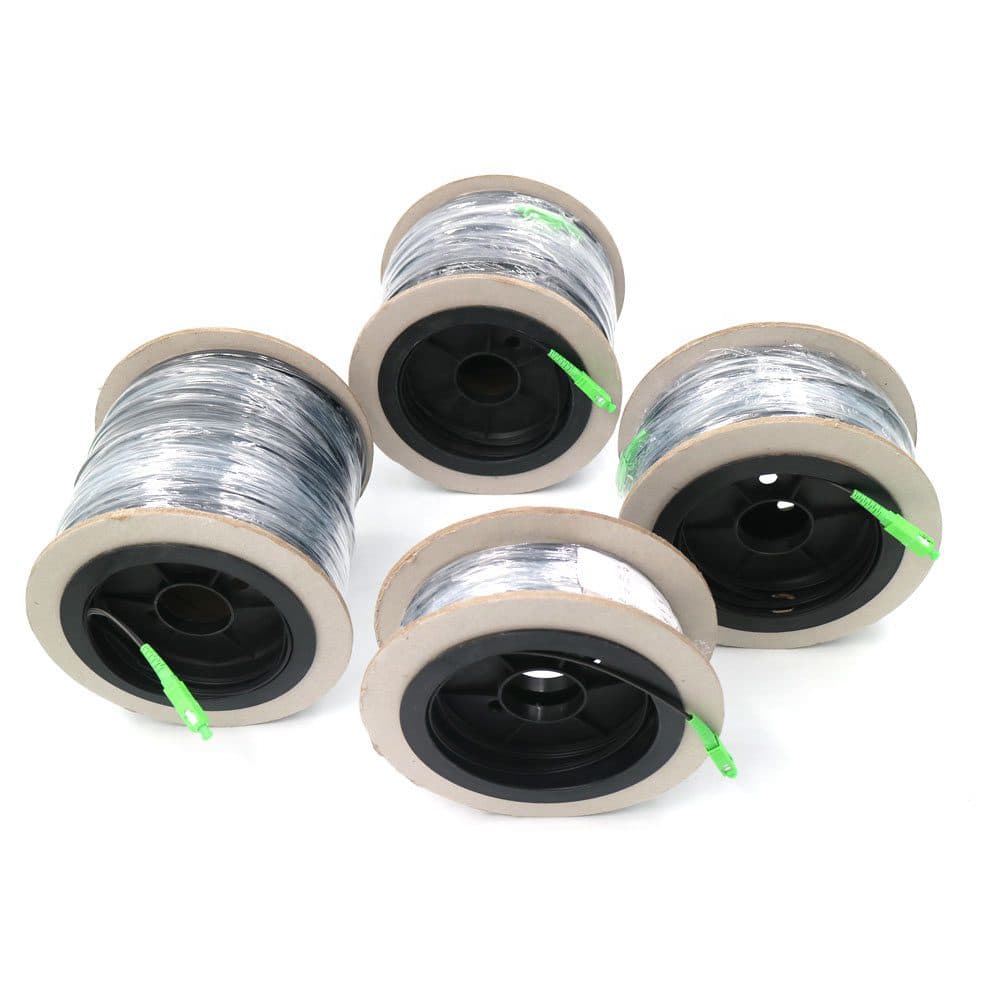

SC APC Drop Cable Patch Cord With Cable Reel Roll
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
High-Density SC APC Drop Cable Patch Cord with Cable Reel Roll
Telhua's SC APC Drop Cable Patch Cord with Cable Reel Roll delivers exceptional performance for high-density fiber optic installations. Engineered for B2B environments where space optimization, signal integrity, and rapid deployment are critical, this patch cord features a durable cable reel roll that simplifies cable management and reduces installation time by up to 40%.
Key Benefits for Network Professionals
- Maximized Rack Density: Slim-profile SC APC connectors and flexible drop cable design allow tighter packing in high-density panels without compromising airflow or accessibility.
- Enhanced Reliability: Precision-polished APC (Angled Physical Contact) connectors ensure low insertion loss (<0.3 dB) and high return loss (>60 dB), minimizing signal degradation in demanding applications.
- Accelerated Installation: Integrated cable reel roll enables controlled, tangle-free payout, reducing deployment errors and labor costs in data centers, telecom hubs, and enterprise networks.
- Long-Term Durability: Corrosion-resistant zirconia ceramic ferrules and robust strain relief withstand repeated mating cycles and harsh environmental conditions.
Telhua Engineer's Tip
For optimal performance in high-density MPO-to-LC breakout scenarios, pair this SC APC patch cord with Telhua's low-loss LC uniboot connectors. The angled APC interface reduces back-reflection by 15% compared to UPC connectors when interfacing with WDM systems, particularly in CATV and FTTx applications where signal purity is paramount. Always verify connector end-face cleanliness with a fiber microscope before installation to prevent particulate-induced loss spikes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Type | SC APC (Angled Physical Contact) |
| Cable Type | Single-mode Drop Cable (9/125 μm) |
| Insertion Loss | ≤0.3 dB (typical ≤0.2 dB) |
| Return Loss | ≥60 dB |
| Operating Temperature | -40°C to +85°C |
| Cable Reel Capacity | Up to 100 meters (custom lengths available) |
| Compliance Standards | IEC 61754-4, TIA/EIA-604-10, RoHS |
| Durability | >500 mating cycles |
Standards & Quality Assurance
Every Telhua SC APC Drop Cable Patch Cord undergoes rigorous testing to exceed IEC 61754-4 and TIA/EIA-604-10 performance benchmarks. Our RoHS-compliant manufacturing process ensures environmental responsibility while maintaining consistent optical performance across production batches. Each unit is 100% optically tested and shipped with individual test certificates.
