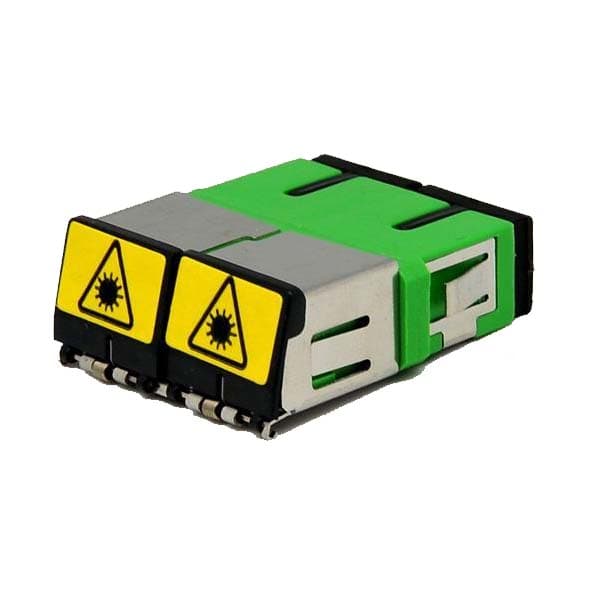

SC Adapter with metal shutter
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
Optimize Network Density with Precision SC Fiber Optic Connectors
Telhua's SC Adapter with metal shutter delivers superior performance for high-density fiber optic installations. Engineered for telecommunications, data centers, and enterprise networks, this adapter ensures reliable connections while maximizing rack space efficiency. Its robust construction addresses common B2B challenges like signal loss, physical durability, and rapid deployment in constrained environments.
Key Features for Professional Installations
- Metal shutter mechanism for enhanced dust protection and connector longevity
- High-precision ceramic sleeves ensuring low insertion loss (<0.2dB typical)
- Compact design supporting up to 48 ports per 1U panel
- Tool-less installation for reduced deployment time and labor costs
- Universal compatibility with SC/UPC and SC/APC connector types
Technical Specifications
| Parameter | Specification |
|---|---|
| Insertion Loss | ≤0.2dB (typical), ≤0.3dB (maximum) |
| Return Loss | ≥50dB (UPC), ≥60dB (APC) |
| Durability | ≥500 mating cycles |
| Operating Temperature | -40°C to +85°C |
| Flammability Rating | UL94V-0 |
| Compliance Standards | IEC 61754-4, TIA/EIA-604-4, RoHS |
Telhua Engineer's Tip
For optimal performance in high-vibration environments, apply a quarter-turn clockwise torque (0.3-0.5 N·m) when securing the adapter to the panel. This prevents micro-movement that can cause intermittent signal degradation over time, particularly in industrial or transportation applications where mechanical stability is critical.
Standards Compliance and Quality Assurance
All Telhua SC adapters undergo rigorous testing to exceed industry standards. Our manufacturing process ensures consistent performance across every unit, with 100% optical testing before shipment. The metal shutter design provides superior environmental sealing compared to plastic alternatives, particularly in dusty or high-traffic installations.
