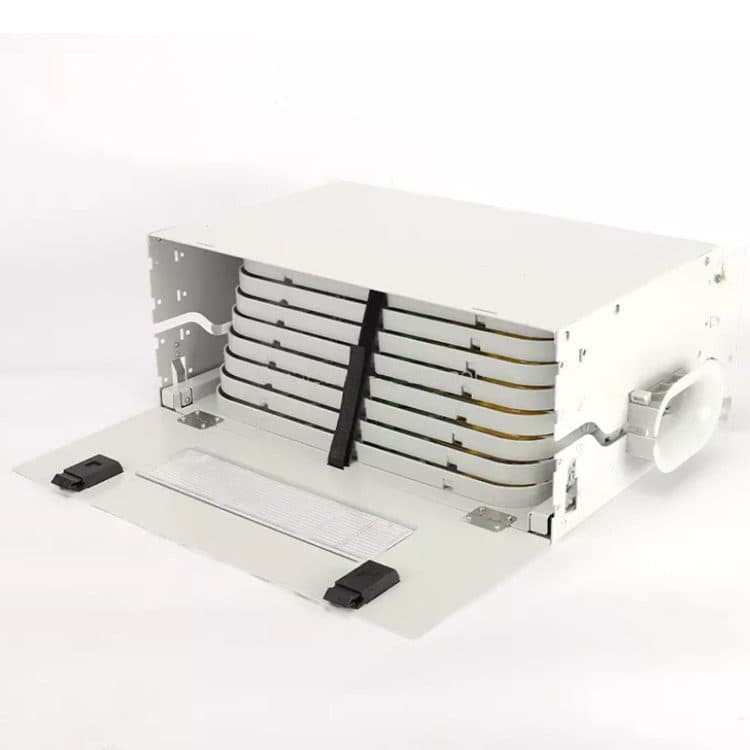

Pull-Out Type Olympos Module CAN-OLM-900
Product Parameters
- Drawer Open Way:Sliding
- Material:Metal
- No. of U:4U
Optimize Fiber Density with Pull-Out Type Olympos Modules
Engineered for high-density fiber management, the Pull-Out Type Olympos Module CAN-OLM-900 provides reliable connectivity in space-constrained environments. This module supports various fiber connectors type configurations, ensuring seamless integration with existing infrastructure while maximizing port density.
Key Benefits for Network Professionals
- Enhanced Density: Accommodates up to 48 LC duplex ports in a single 1U space, optimizing rack utilization.
- Superior Reliability: Precision-machined components and robust construction minimize insertion loss and ensure consistent performance.
- Rapid Installation: Tool-less pull-out design allows quick access to rear connectors, reducing deployment time by up to 40%.
- Future-Proof Flexibility: Modular design supports easy reconfiguration and upgrades without disrupting adjacent ports.
Technical Specifications
| Specification | Value |
|---|---|
| Model | CAN-OLM-900 |
| Compatible Connectors | LC, SC, MTP/MPO (adaptable) |
| Port Density | Up to 48 LC duplex ports |
| Insertion Loss | ≤0.2 dB |
| Return Loss | ≥55 dB (PC), ≥60 dB (APC) |
| Operating Temperature | -40°C to +75°C |
| Flammability Rating | UL94 V-0 |
| Compliance Standards | IEC 61754, TIA/EIA-604, RoHS |
Telhua Engineer's Tip
For optimal performance in high-vibration environments, apply a thin layer of dielectric grease to the connector ferrules before insertion. This reduces micro-abrasion and maintains consistent optical performance over extended thermal cycles, particularly in industrial or outdoor applications.
Standards Compliance & Quality Assurance
The CAN-OLM-900 module meets rigorous international standards including IEC 61754 for fiber optic connector interfaces, TIA/EIA-604 for performance requirements, and RoHS for environmental safety. Each unit undergoes 100% optical testing to ensure compliance with published specifications.
