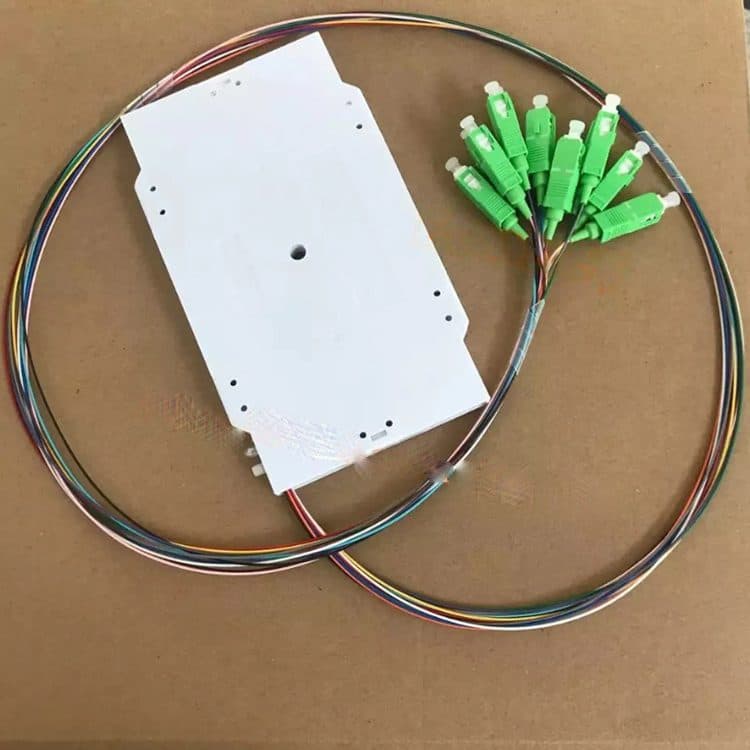

Pre-terminated fiber optic splice tray
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
Optimize Network Density with Pre-Terminated Splice Management
Telhua's pre-terminated fiber optic splice tray delivers maximum fiber density and reliability in rack-mounted environments. Engineered for data centers, telecom hubs, and enterprise networks, this tray eliminates field termination bottlenecks, reducing installation time by up to 70% while maintaining industry-leading signal integrity.
Addressing Critical B2B Installation Challenges
Network engineers face constant pressure to increase rack density while ensuring zero downtime. Traditional splice methods create vulnerability points and consume valuable rack space. Our solution provides:
- High-Density Design: Accommodates up to 144 fibers in 1RU space without compromising bend radius protection
- Factory-Terminated Reliability: Every splice is precision-polished and tested to 0.1dB maximum insertion loss
- Rapid Deployment: Plug-and-play installation reduces labor costs and accelerates network commissioning
- Future-Proof Architecture: Modular design supports easy upgrades without complete tray replacement
Telhua Engineer's Tip: Preserving Optical Performance
When maximizing fiber density, maintain minimum bend radius of 30mm for single-mode fibers and 15mm for multimode. Our tray's patented radius limiter guides fibers through optimal pathways, preventing microbending losses that degrade signal quality over time. For high-density installations exceeding 96 fibers, implement alternating splice routing to minimize cross-talk between adjacent fibers.
Technical Specifications
| Specification | Value |
|---|---|
| Rack Units (RU) | 1U, 2U configurations |
| Fiber Capacity | 72-144 fibers |
| Splice Type | Fusion, mechanical compatible |
| Insertion Loss | ≤0.1dB (factory pre-terminated) |
| Return Loss | ≥55dB single-mode, ≥35dB multimode |
| Operating Temperature | -40°C to +85°C |
| Fiber Types Supported | OS2, OM1-OM5, bend insensitive |
| Material Construction | Fire-retardant ABS, stainless steel hardware |
| Compliance Standards | IEC 61753-1, TIA/EIA-568-D, RoHS compliant |
Standards Compliance & Quality Assurance
Every Telhua pre-terminated splice tray undergoes rigorous testing to exceed IEC 61753-1 performance requirements and TIA/EIA-568-D mechanical specifications. Our RoHS-compliant manufacturing process ensures environmental responsibility while delivering consistent optical performance across all production batches.
