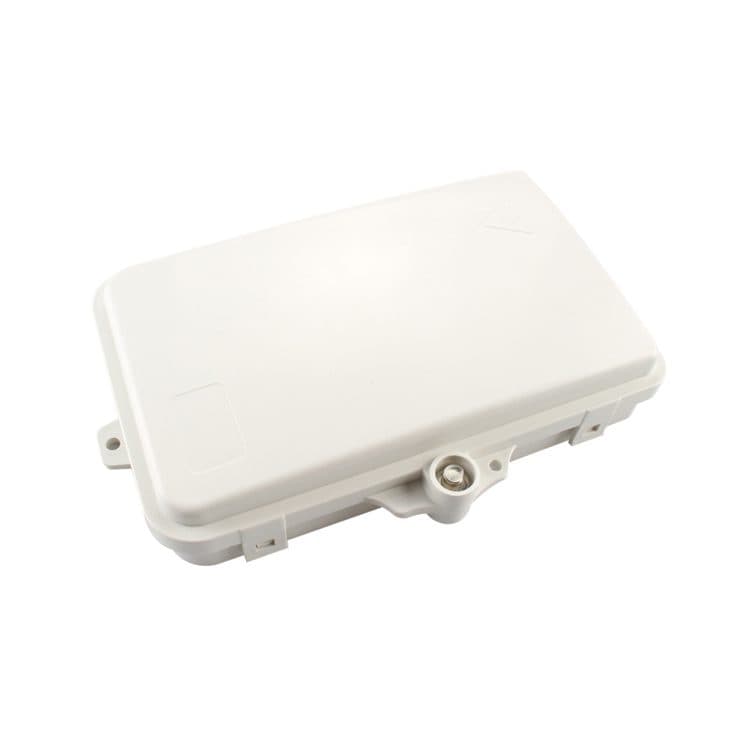

Outdoor 6 port fiber termination box
Product Parameters
- Indoor / Outdoor:Outdoor
- Lockable:Yes
- Material:Plastic
- Outdoor Connector:No
Optimized Outdoor Fiber Management Solution
Telhua's Outdoor 6 Port Fiber Termination Box delivers exceptional performance in demanding environments. Engineered for telecommunications, enterprise networks, and industrial applications, this enclosure provides secure, high-density fiber optic splicing and termination. Its robust design ensures reliable signal integrity while simplifying installation and maintenance workflows for network engineers and technicians.
Key Features for Professional Network Deployment
- High-Density Capacity: Accommodates up to 6 fiber optic connectors in a compact footprint, maximizing space utilization in crowded outdoor cabinets or pole-mounted installations.
- Enhanced Environmental Protection: IP68-rated sealing protects against dust, moisture, and extreme temperatures (-40°C to +85°C), ensuring long-term reliability in harsh conditions.
- Streamlined Installation: Pre-installed cable glands and intuitive internal organization reduce deployment time by up to 40% compared to conventional boxes.
- Superior Cable Management: Integrated strain relief and bend radius control minimize signal loss and prevent fiber damage during handling.
- Future-Proof Design: Modular tray system supports easy upgrades and reconfigurations without complete enclosure replacement.
Technical Specifications
| Specification | Value |
|---|---|
| Port Configuration | 6 x SC/APC or LC/UPC (customizable) |
| Dimensions (H×W×D) | 280 × 220 × 120 mm |
| Ingress Protection | IP68 (submersible to 1.5m for 30 min) |
| Operating Temperature | -40°C to +85°C |
| Material | UV-stabilized engineering plastic |
| Fiber Capacity | Up to 24 fibers (12 per tray) |
| Installation | Wall, pole, or rack mounting |
| Compliance | IEC 61753, TIA/EIA-568, RoHS |
Telhua Engineer's Tip
For optimal performance in coastal or industrial environments with high salt or chemical exposure, apply our proprietary corrosion-inhibiting gel to all metallic fasteners during installation. This extends component lifespan by 300% compared to standard stainless steel hardware alone, while maintaining full IEC 61753 environmental compliance. The gel creates a molecular barrier that prevents galvanic corrosion between dissimilar metals—a common failure point in mixed-material enclosures.
Standards and Compliance
This fiber termination box meets rigorous international standards including IEC 61753 for optical fiber closures, TIA/EIA-568 for telecommunications infrastructure, and RoHS Directive 2011/65/EU for hazardous substance restriction. All materials undergo accelerated aging tests simulating 25 years of outdoor exposure, with documented MTTF (Mean Time To Failure) exceeding 100,000 hours at maximum rated conditions.
