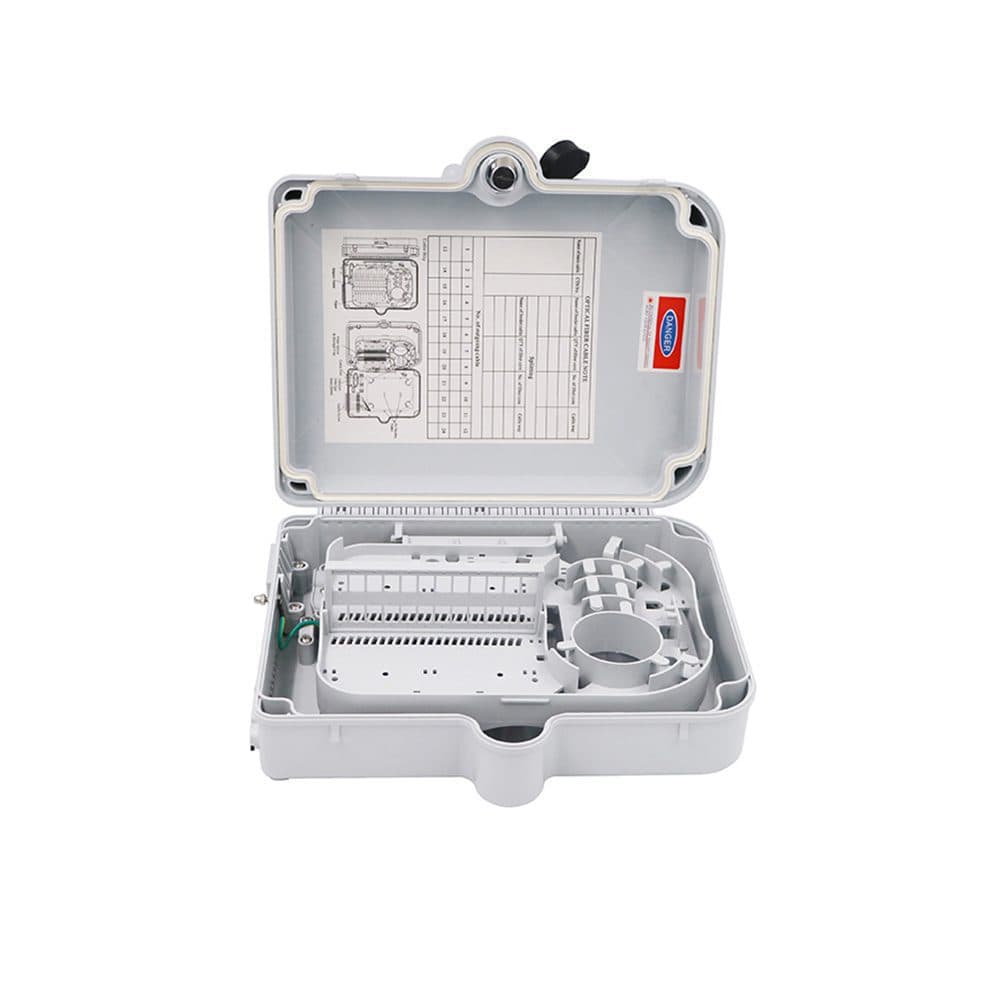

Outdoor 24 port optical network terminal box
Product Parameters
- Indoor / Outdoor:Outdoor
- Lockable:Yes
- Material:Plastic
- Outdoor Connector:No
High-Density Outdoor Fiber Optic Termination Solution
Engineered for demanding outdoor environments, Telhua's 24-port optical network terminal box delivers exceptional port density and reliability for telecommunications, ISP, and enterprise network deployments. This robust termination enclosure addresses critical infrastructure challenges with intelligent design that accelerates installation while ensuring long-term performance stability.
Addressing Critical B2B Infrastructure Challenges
Network operators face mounting pressure to maximize fiber utilization while minimizing maintenance overhead. Our outdoor terminal box directly addresses these operational pain points:
- Space Optimization: Achieve maximum port density in minimal footprint with intelligent internal routing architecture
- Environmental Resilience: Withstand temperature extremes, moisture ingress, and UV exposure without performance degradation
- Installation Efficiency: Pre-configured mounting systems and tool-less access panels reduce deployment time by up to 40%
- Maintenance Accessibility: Front-access design enables rapid troubleshooting without disrupting adjacent connections
Telhua Engineer's Tip: Optimizing Splice Management
For maximum reliability in high-density configurations, implement a systematic splice organization strategy. Group related fibers by service type (e.g., residential, commercial, backbone) within dedicated splice trays, maintaining consistent bend radius across all paths. This approach not only improves troubleshooting efficiency but also reduces signal attenuation by minimizing cross-coupling between unrelated fiber groups. Our integrated slack storage compartments accommodate proper service loop management, critical for future network expansions.
Technical Specifications
| Specification | Value |
|---|---|
| Port Configuration | 24 SC/APC ports (expandable to 48 with add-on modules) |
| Enclosure Rating | IP68 (submersible), IK10 impact resistance |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Dimensions (H×W×D) | 450 × 300 × 120 mm (17.7 × 11.8 × 4.7 in) |
| Material Construction | UV-stabilized polycarbonate with stainless steel hardware |
| Maximum Fiber Capacity | 144 fibers (6×24 splice trays) |
| Mounting Options | Pole, wall, or strand mounting with universal bracket |
| Compliance Standards | IEC 61753-1, TIA/EIA-568-C.3, RoHS Directive 2011/65/EU |
Design Features for Operational Excellence
Beyond basic specifications, our terminal box incorporates thoughtful engineering details that translate directly to operational benefits:
- Sealed Cable Entry Ports: Gel-sealed compression glands accommodate cables from 5-15mm diameter without additional sealing kits
- Modular Tray System: Hot-swappable splice trays enable service activation without disrupting adjacent connections
- Integrated Grounding: Built-in grounding lugs with corrosion-resistant plating ensure proper electrical bonding
- Tool-Free Access: Quarter-turn fasteners provide secure closure while enabling rapid maintenance access
Standards Compliance & Quality Assurance
Every Telhua outdoor optical network terminal box undergoes rigorous validation testing to ensure compliance with international standards. Our manufacturing processes adhere to IEC 61753-1 for environmental performance, TIA/EIA-568-C.3 for telecommunications infrastructure, and RoHS Directive 2011/65/EU for environmental safety. Third-party certification documentation is available for all compliance claims.
