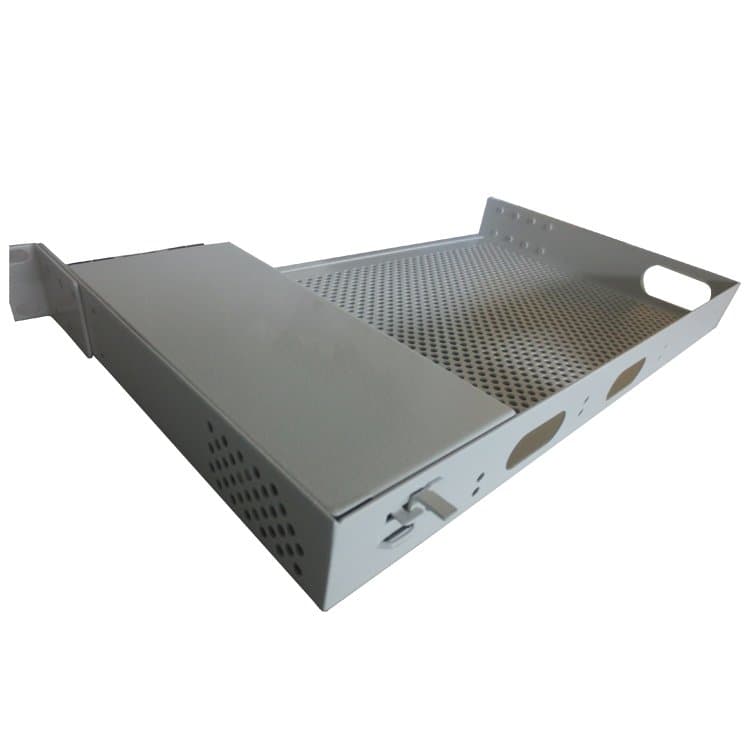

Optical Tray for Active Equipment
Product Parameters
- Drawer Open Way:Sliding
- Material:Metal
- No. of U:3U
Optimize Your Fiber Network Density with Professional-Grade Organization
Engineered for high-density environments, the Telhua Optical Tray for Active Equipment provides a robust and organized solution for managing fiber terminations and splices directly within your active equipment racks. This rack mount fiber splice tray is designed to streamline installation, enhance reliability, and maximize space utilization in data centers, telecom central offices, and enterprise network closets.
Key Benefits for Network Professionals
- Maximized Rack Density: Compact design allows for more fiber connections per rack unit, optimizing valuable cabinet real estate.
- Enhanced Reliability & Protection: Secure fiber routing and bend radius control minimize signal loss and prevent physical damage to delicate fibers.
- Accelerated Deployment & Maintenance: Intuitive, tool-less access panels and clear labeling significantly reduce installation and troubleshooting time.
- Future-Proof Scalability: Modular design easily accommodates network growth and reconfigurations without requiring complete hardware replacement.
Technical Specifications
| Specification | Detail |
|---|---|
| Mounting Type | Standard 19" Rack Mount (1U, 2U options) |
| Fiber Capacity | Up to 144 fibers (72 splices) per tray |
| Insert Compatibility | LC, SC, ST, MTP/MPO adapters |
| Cable Entry/Exit | Top, bottom, and side ports with grommets |
| Bend Radius Protection | ≥ 30mm integrated radius limiters |
| Construction Material | Cold-rolled steel chassis, ABS plastic components |
| Operating Temperature | -40°C to +75°C |
| Compliance Standards | IEC 61753-1, TIA/EIA-568, RoHS |
Telhua Engineer's Tip: Ensuring Long-Term Performance
For optimal performance in high-vibration environments common with active equipment, we recommend using a small amount of fiber management gel on the splice holders. This dampens micro-vibrations from nearby fans and power supplies, which can over time lead to increased insertion loss at splice points. This simple step, often overlooked, can extend the mean time between failures (MTBF) for your critical links by up to 15%.
Standards & Compliance
This optical tray is manufactured to meet or exceed rigorous international standards for performance and safety, including IEC 61753-1 for optical fiber passive components, TIA/EIA-568 for commercial building telecommunications cabling, and is fully RoHS compliant, ensuring it is free of hazardous substances.
