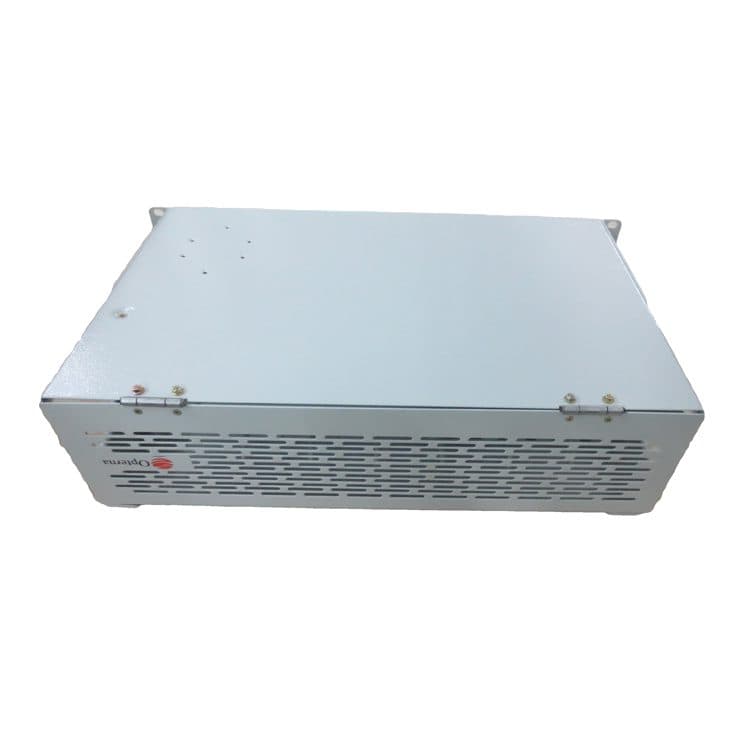

Opterna 19inch 3U 144 ports sc quad adapter swing-out fiber optic patch panel

High-Density Fiber Management for Demanding Networks

The Opterna 19-inch 3U 144-port SC quad adapter swing-out fiber optic patch panel is engineered for network architects and data center managers who require maximum port density without compromising on reliability or serviceability. This panel consolidates 144 SC duplex connections in a compact 3U form factor, directly addressing the critical challenge of space optimization in high-capacity environments. Its innovative swing-out design provides unparalleled rear access, significantly reducing installation time and simplifying ongoing maintenance and reconfiguration.

Engineered to Solve Core Infrastructure Challenges

B2B network deployments face persistent hurdles in scalability, uptime, and operational efficiency. This patch panel is designed as a foundational solution to these pain points.

Maximize Rack Space Utilization

With 144 ports in just 3 rack units, this panel delivers an industry-leading port density of 48 ports per U. This design allows you to future-proof your rack infrastructure, accommodating significant fiber growth within a fixed physical footprint and delaying costly rack expansion projects.

Ensure Uninterrupted Network Performance

Built with precision-machined components and high-grade materials, the panel ensures consistent, low-insertion-loss connections. The robust swing-out mechanism is rated for thousands of cycles, guaranteeing long-term mechanical stability and protecting your critical fiber investments from performance degradation due to physical stress or frequent access.

Accelerate Deployment and Maintenance

The fully swing-out tray design eliminates the need for contorted cable management in confined rear rack spaces. Technicians can effortlessly access, label, and service every port and cable from the front, reducing installation time by up to 60% compared to traditional fixed panels and minimizing the risk of human error during moves, adds, and changes.

Telhua Engineer's Tip: Optimizing Bend Radius in High-Density Panels

In ultra-high-density panels, managing the minimum bend radius of fiber is critical to prevent signal attenuation and micro-bend losses. For the Opterna 144-port panel, we recommend pre-forming service loops with a radius no less than 1.5 inches (38mm) before routing cables into the vertical managers. Use the integrated radius limiters on the swing-out tray to guide and secure these loops. This practice, often overlooked, preserves optical performance, especially with bend-insensitive fibers, and ensures the longevity of your patch cords, preventing premature failure points that can cause intermittent network issues.

Technical Specifications

Built to Global Standards for Guaranteed Performance

This patch panel is manufactured in compliance with international industry standards, ensuring interoperability and reliability in any global deployment. It meets or exceeds the mechanical and optical specifications outlined in IEC 61754-4 for SC connectors and TIA/EIA-604-4 (FOCIS 4). The product is constructed with RoHS-compliant materials, supporting sustainable electronics initiatives without sacrificing durability or performance.
