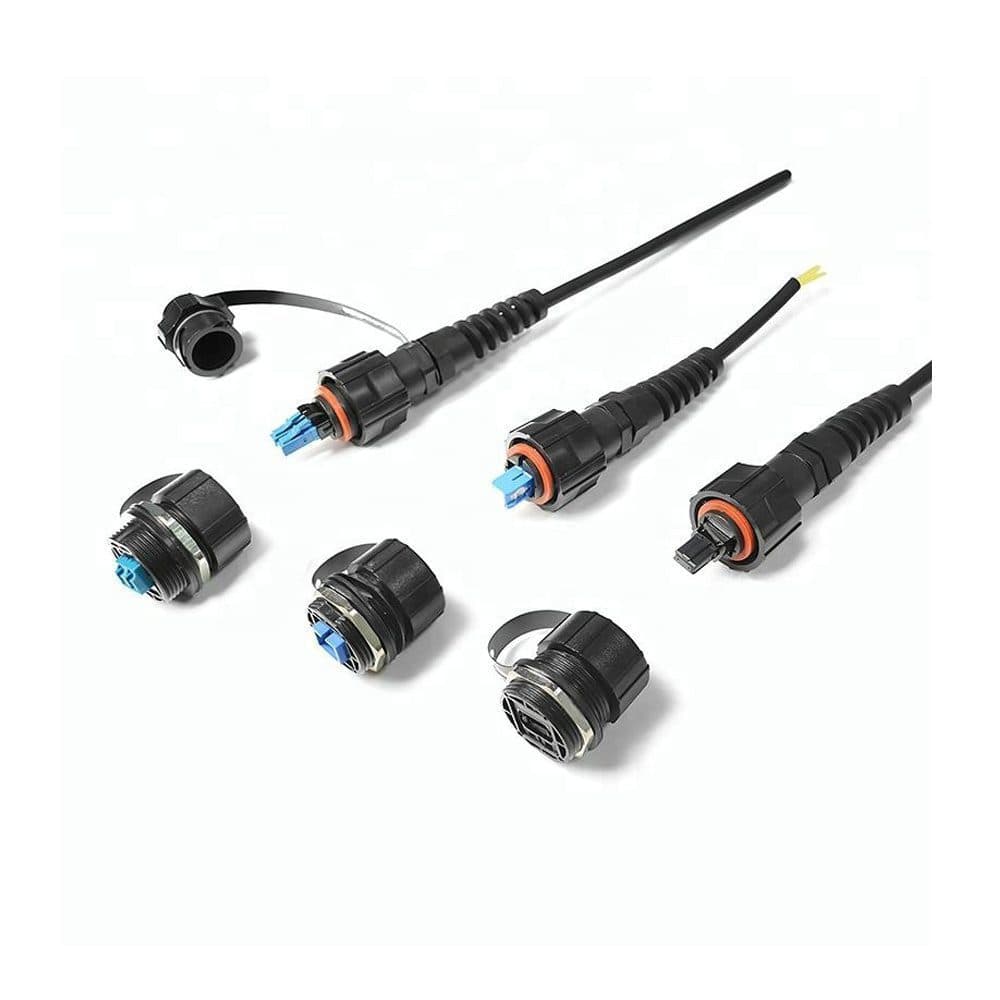

ODVA-LC Duplex IP67 Fiber Optic Patch Cord
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
High-Density, High-Reliability Fiber Optic Connectivity
Engineered for demanding B2B network environments, the Telhua ODVA-LC Duplex IP67 Fiber Optic Patch Cord delivers uncompromising performance where reliability and space efficiency are critical. This ruggedized patch cord solves common infrastructure challenges by providing a secure, high-density connection that withstands harsh conditions while maintaining optimal signal integrity.
Key Features for Network Professionals
Maximized Rack Density
The compact LC duplex connector design enables superior port utilization in high-density patch panels and network equipment, allowing you to maximize your infrastructure investment without compromising performance.
Industrial-Grade Reliability
With IP67-rated protection against dust and water immersion, this patch cord maintains consistent performance in challenging environments where standard patch cords would fail, reducing network downtime and maintenance costs.
Streamlined Installation
The precision-engineered connectors feature smooth insertion and extraction with minimal insertion loss, enabling faster deployment and maintenance cycles while ensuring reliable connections every time.
Telhua Engineer's Tip
For optimal performance in high-density applications, ensure proper bend radius management during installation. Our ODVA-LC connectors feature an integrated strain relief boot that maintains the minimum bend radius even in tightly packed panels, preventing microbend losses that can degrade signal quality over time. This design consideration is particularly valuable in data centers where thermal cycling can cause cable movement.
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | LC Duplex |
| Interface Standard | IEC 61754-20, TIA/EIA-604-10 |
| IP Rating | IP67 (Dust tight, Water immersion to 1m) |
| Insertion Loss | ≤ 0.2 dB typical |
| Return Loss | ≥ 50 dB (PC), ≥ 60 dB (UPC), ≥ 65 dB (APC) |
| Operating Temperature | -40°C to +85°C |
| Cable Type | Single-mode (OS2) or Multimode (OM1/OM2/OM3/OM4/OM5) |
| Cable Diameter | 2.0mm or 3.0mm options |
| Flammability Rating | IEC 60332-1, RoHS Compliant |
| Durability | ≥ 500 mating cycles |
Standards Compliance & Quality Assurance
Every Telhua ODVA-LC Duplex IP67 Fiber Optic Patch Cord undergoes rigorous testing to ensure compliance with international standards including IEC, TIA/EIA, and RoHS directives. Our manufacturing process incorporates 100% optical performance testing, guaranteeing that each unit meets or exceeds published specifications for insertion loss, return loss, and mechanical durability.
