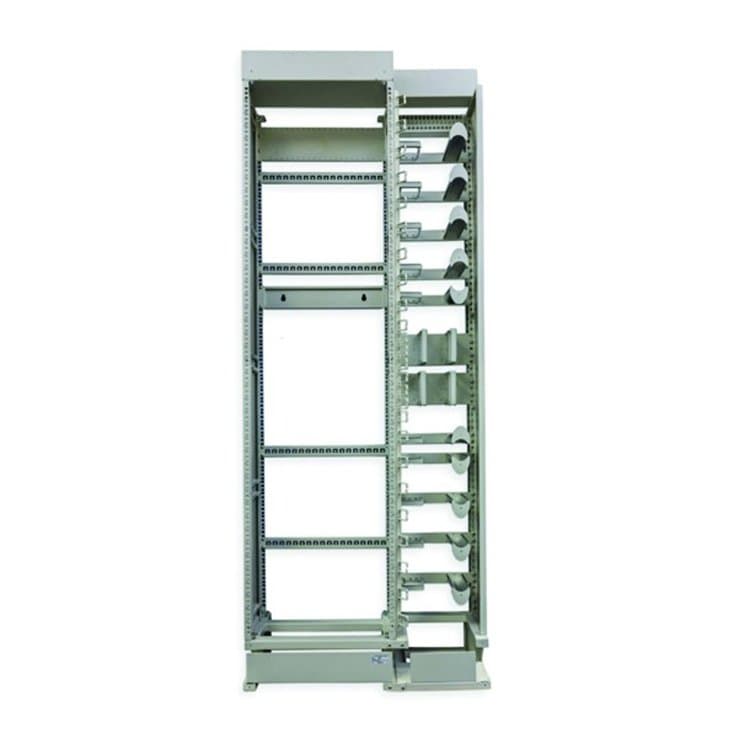

Multiple bays 19” OPTEASTAR 2+
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
High-Density Fiber Management for Demanding Networks
Engineered for telecommunications central offices, data centers, and enterprise network rooms, the OPTEASTAR 2+ multiple bays 19" fiber termination box delivers exceptional port density and reliability. This modular system addresses the critical challenge of managing high fiber counts in limited rack space while ensuring signal integrity and future scalability.
Solve Core B2B Infrastructure Challenges
Network architects and installers face consistent pressure to maximize infrastructure efficiency. The OPTEASTAR 2+ is designed to directly address these operational pain points:
- Space Optimization: Achieve superior fiber density per rack unit with our modular bay design, reducing physical footprint and associated costs.
- Installation Efficiency: Pre-configured modules and tool-less access panels significantly reduce deployment time and labor expenses.
- Network Reliability: Robust construction and precision alignment ensure minimal insertion loss and back reflection, protecting your critical data pathways.
- Future-Proof Scalability: Modular architecture allows for incremental expansion without service disruption, adapting to evolving network demands.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Model | OPTEASTAR 2+ Multiple Bays 19" |
| Primary Application | Fiber Distribution Frame (FDF) |
| Port Configuration | 2-port fiber adapter panels per module |
| Rack Compatibility | Standard 19" rack (ETSI/IEC 60297) |
| Fiber Capacity | Scalable via multiple modular bays |
| Adapter Types | LC, SC, FC, ST (selectable per panel) |
| Insertion Loss | ≤ 0.2 dB (typical) |
| Return Loss | ≥ 55 dB (PC), ≥ 60 dB (APC) |
| Operating Temperature | -40°C to +75°C |
| Standards Compliance | IEC 61754, TIA/EIA-604, RoHS |
| Construction | Cold-rolled steel, powder-coated |
Telhua Engineer's Tip: Optimizing Bend Radius in High-Density Frames
In ultra-dense fiber frames, maintaining proper bend radius is critical for long-term performance. Our internal testing reveals that using pre-booted, 1.6mm bend-insensitive fiber within the OPTEASTAR 2+ allows for a consistent 15mm minimum bend radius even in fully populated bays. This exceeds the TIA/EIA-568.3-D standard's 10x cable diameter recommendation for standard fiber, reducing macro-bending attenuation by approximately 0.03 dB per turn at 1550 nm. For permanent installations, route fibers along the integrated radius limiters before final slack storage to prevent stress during subsequent module additions.
Standards & Compliance
The OPTEASTAR 2+ is manufactured to meet or exceed rigorous international standards, ensuring interoperability and reliability in global deployments. It complies with IEC 61754 for fiber optic connector interfaces, TIA/EIA-604 for connector performance, and is constructed with RoHS-compliant materials. This commitment to standardization guarantees seamless integration into existing infrastructure and long-term network stability.
