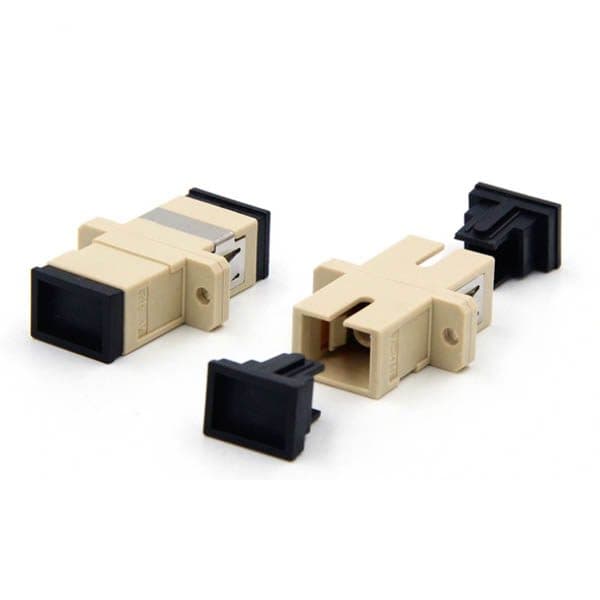

Multimode Sc Fiber Optic Adapter
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
High-Density Multimode SC Fiber Optic Adapter
Engineered for demanding B2B network environments, Telhua's Multimode SC Fiber Optic Adapter delivers exceptional connection density and unwavering reliability. This precision component enables rapid deployment and maintenance of high-bandwidth fiber optic links, addressing critical infrastructure challenges where space optimization and signal integrity are paramount.
Key Features for Network Professionals
- Maximized Port Density: Ultra-compact design allows for more connections per panel or enclosure, optimizing valuable rack space and reducing physical footprint.
- Superior Reliability & Low Insertion Loss: Precision-machined zirconia ceramic sleeves ensure consistent, low-loss mating of SC fiber optic connectors, minimizing signal attenuation and maximizing network uptime.
- Streamlined Installation & Maintenance: Tool-less, snap-in design facilitates quick and error-free panel mounting, significantly reducing deployment time and labor costs.
- Robust & Durable Construction: Manufactured from high-grade, flame-retardant materials to withstand rigorous use in data centers, enterprise networks, and telecom central offices.
Telhua Engineer's Tip
For optimal performance in high-density applications, ensure the adapter mounting panel is perfectly aligned before snap-in installation. A slight misalignment can induce lateral stress on the ceramic sleeve over time, potentially leading to increased insertion loss. Use a alignment jig during panel fabrication for best results. Furthermore, when mating connectors, a firm, straight push until a distinct click is heard ensures the ferrule is fully seated within the sleeve, guaranteeing the specified low loss performance.
Technical Specifications
| Specification | Value |
|---|---|
| Adapter Type | SC Multimode (Simplex) |
| Interface | SC/PC to SC/PC |
| Ferrule Material | Zirconia Ceramic |
| Insertion Loss | ≤ 0.2 dB (Typical) |
| Return Loss | > 35 dB (Multimode) |
| Operating Temperature | -40°C to +85°C |
| Durability | > 500 mating cycles |
| Flammability Rating | UL94V-0 |
| Standards Compliance | IEC 61754-4, TIA/EIA-604-4, RoHS |
Applications & Compatibility
This adapter is designed for use in fiber optic patch panels, wall outlets, and equipment where reliable SC connector coupling is required. It is fully compatible with standard SC multimode fiber optic connectors conforming to industry specifications, ensuring seamless integration into existing and new network infrastructure for data centers, LAN backbones, and telecommunications networks.
