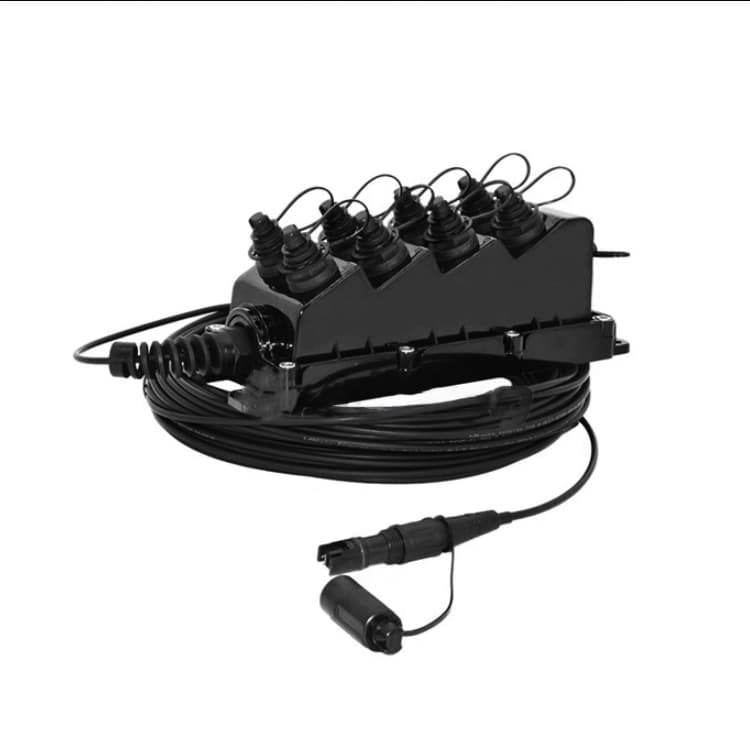

MST Fiber Optic Multiport Service Terminal for MPO
Product Parameters
- Indoor / Outdoor:Indoor
- Lockable:Yes
- Material:Metal
- Outdoor Connector:No
High-Density Fiber Optic Distribution Solution
Telhua's MST Fiber Optic Multiport Service Terminal for MPO delivers exceptional port density and reliability for data centers, enterprise networks, and telecommunications infrastructure. Engineered to streamline fiber optic management, this pre-terminated fiber optic box eliminates installation bottlenecks while ensuring consistent signal integrity across high-bandwidth applications.
Addressing Critical B2B Infrastructure Challenges
Network architects and data center managers face persistent challenges in fiber optic deployment. Our MST terminal directly addresses these pain points:
- Space Optimization: Maximizes rack space utilization with compact MPO-based architecture
- Deployment Efficiency: Pre-terminated design reduces installation time by up to 70% compared to field termination
- Signal Reliability: Precision-engineered connectors maintain insertion loss below 0.3dB
- Future-Proof Scalability: Modular design supports seamless network expansion without infrastructure overhaul
Telhua Engineer's Tip: MPO Polarity Management
When deploying MPO-based systems, maintain consistent polarity through Method B (straight-through) configurations for uniform signal routing. Our MST terminals feature color-coded polarity indicators and key-up/key-down MPO adapters that prevent cross-connect errors. For 40/100G applications, implement Type B MPO-MPO trunk cables with the MST terminal to ensure proper transmit/receive alignment across parallel optics.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | MST-MPO-12U |
| MPO Port Configuration | 12-port MPO (female) to LC/UPC duplex |
| Fiber Type | OS2 Single-mode, OM4 Multimode |
| Insertion Loss | ≤0.3dB (MPO), ≤0.2dB (LC) |
| Return Loss | ≥55dB (UPC), ≥65dB (APC) |
| Operating Temperature | -40°C to +75°C |
| Dimensions | 1U rack-mount, 19" standard width |
| Compliance Standards | IEC 61754-7, TIA/EIA-604-18, RoHS |
Standards Compliance & Quality Assurance
Every MST Fiber Optic Multiport Service Terminal undergoes rigorous testing to exceed industry standards. Our manufacturing process adheres to IEC 61754-7 for MPO connector performance, TIA/EIA-604-18 for fiber optic connector intermateability, and RoHS directives for environmental safety. Telhua's quality control includes 100% optical performance verification and mechanical stress testing to ensure 25-year service life in demanding environments.
