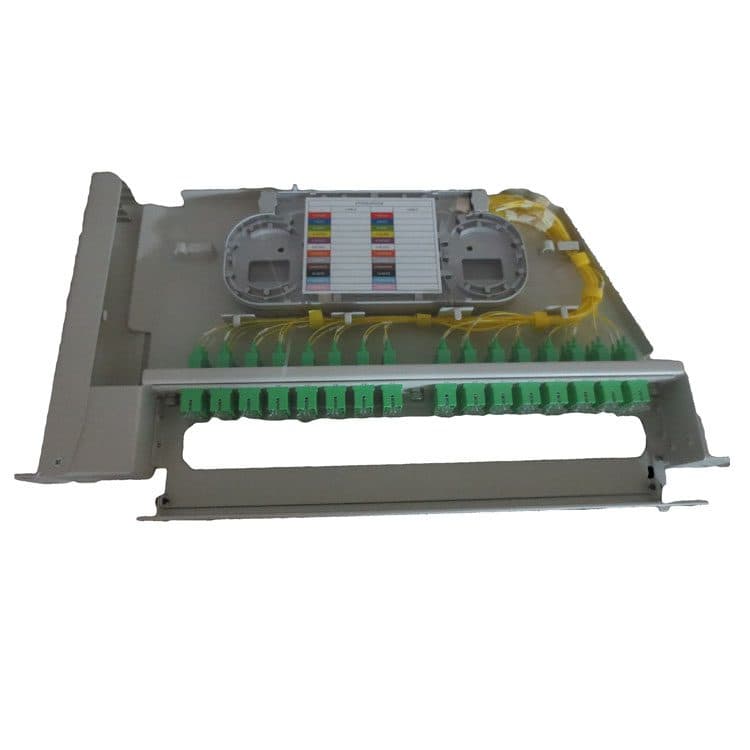

MOF72-1U 19inch swing out fiber optic patch panel
Product Parameters
- Drawer Open Way:Rotated
- Material:Metal
- No. of U:1U
Optimize Your Fiber Infrastructure with High-Density 1U Management
Engineered for demanding data centers and telecom environments, the Telhua MOF72-1U swing-out fiber optic patch panel delivers maximum port density and operational reliability in a standard 1U rack space. This panel addresses critical B2B challenges by simplifying cable management, accelerating installation, and ensuring long-term network integrity.
Engineered for B2B Efficiency and Reliability
Network managers and installers face constant pressure to maximize rack space utilization while maintaining accessible, organized, and reliable connections. Traditional fixed panels can make rear-access cabling difficult and time-consuming, leading to installation delays and potential maintenance issues.
The MOF72-1U directly solves these pain points. Its innovative swing-out design provides full, unobstructed access to the rear for effortless cable routing and termination. This design significantly reduces installation time and simplifies future moves, adds, and changes (MACs). The robust, all-metal construction ensures precise fiber alignment and protection, minimizing insertion loss and back reflection to safeguard your signal integrity.
Telhua Engineer's Tip: Preserving Polarity in High-Density Deployments
In high-density 1U panels, maintaining correct fiber polarity is critical, especially for parallel optic applications (e.g., 40G/100G). When routing cables through the rear cable management bars, always follow a consistent "over-and-under" pattern for opposing trunks. This prevents crossover and twist, which can lead to polarity mismatches that are difficult to trace in a fully populated panel. Pre-plan your routing scheme before termination to ensure clean, manageable, and error-free installations.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | MOF72-1U |
| Rack Unit (RU) | 1U |
| Rack Compatibility | 19-inch Standard Rack (ETSI/IEC) |
| Total Port Capacity | Up to 72 ports (LC Duplex) or 36 ports (SC Duplex) |
| Adapter Type | LC/SC/UPC or APC (selectable) |
| Panel Design | Swing-Out, 180-degree rotation |
| Construction | Cold-rolled steel, powder-coated |
| Cable Management | Integrated front and rear cable routing bars |
| Insertion Loss | ≤ 0.2 dB (typical) |
| Return Loss | ≥ 55 dB (UPC), ≥ 65 dB (APC) |
| Compliance Standards | IEC 61754, TIA/EIA-604, RoHS |
| Operating Temperature | -40°C to +75°C |
Standards and Quality Assurance
The MOF72-1U is designed and tested to meet or exceed rigorous international standards, including IEC 61754 for fiber optic connector interfaces and TIA/EIA-604 for performance. It is manufactured in compliance with RoHS directives, ensuring the use of environmentally safe materials. Every unit undergoes stringent quality control checks to guarantee the mechanical durability and optical performance required for mission-critical network infrastructure.
