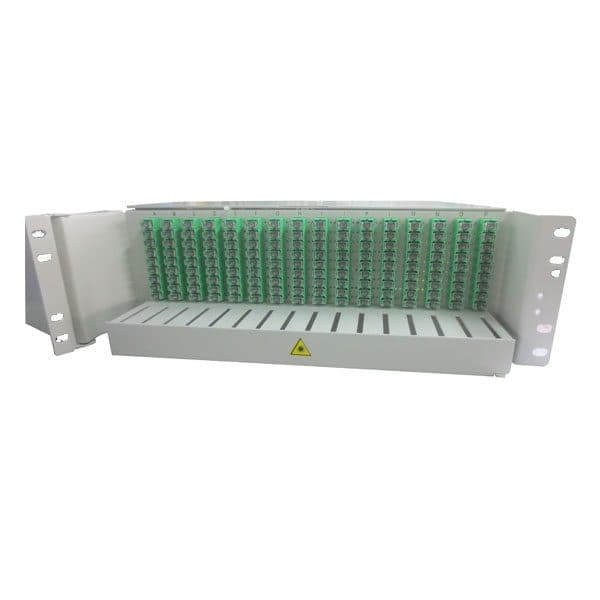

MOF144-3U 19inch modular swivel drawer 3U 144FO left opening
Product Parameters
- Drawer Open Way:Rotated
- Material:Metal
- No. of U:3U
High-Density Modular Optical Fiber Patch Panel
Engineered for demanding data center and telecom environments, the MOF144-3U modular swivel drawer patch panel delivers exceptional fiber density and operational reliability. This 19-inch, 3U chassis supports 144 fiber terminations in a left-opening configuration, optimizing rack space while providing superior cable management and accessibility.
Key Features for Enterprise Infrastructure
Maximized Density with Intelligent Design
With 144 fiber capacity in just 3U of rack space, this patch panel addresses critical space constraints in modern data centers. The modular swivel drawer design allows complete front access to all connections, eliminating the need for rear rack access during maintenance and reconfiguration.
Enhanced Reliability and Performance
Constructed with precision-machined components and high-grade materials, the panel ensures consistent signal integrity and mechanical durability. The swivel mechanism incorporates smooth ball-bearing operation for thousands of cycles without performance degradation.
Streamlined Installation and Maintenance
Pre-installed adapter plates and clear labeling systems reduce installation time by up to 40% compared to traditional patch panels. The left-opening configuration is specifically designed for standard rack layouts, facilitating efficient cable routing and minimizing bend radius violations.
Technical Specifications
| Specification | Value |
|---|---|
| Product Model | MOF144-3U |
| Rack Unit Height | 3U (133.35mm) |
| Fiber Capacity | 144 fibers |
| Opening Direction | Left |
| Adapter Types Supported | LC, SC, ST, MTP/MPO |
| Panel Material | Cold-rolled steel with powder coating |
| Operating Temperature | -10°C to +60°C |
| Compliance Standards | IEC 61754, TIA/EIA-568, RoHS |
| Swivel Mechanism | Ball-bearing, 180° rotation |
| Cable Management | Integrated strain relief, bend radius protectors |
Telhua Engineer's Tip
For optimal performance in high-density deployments, implement a systematic labeling strategy using our color-coded identification system. When installing the MOF144-3U, pre-route all trunk cables before mounting the panel to minimize stress on connections. The left-opening configuration is particularly effective when paired with vertical cable managers on the right side of the rack, creating a natural cable flow path that reduces congestion and improves airflow.
Standards Compliance
This optical fiber patch panel meets or exceeds industry standards including IEC 61754 for fiber optic connector interfaces, TIA/EIA-568 for telecommunications infrastructure, and RoHS directives for environmental safety. All components undergo rigorous testing for insertion loss, return loss, and mechanical durability.
