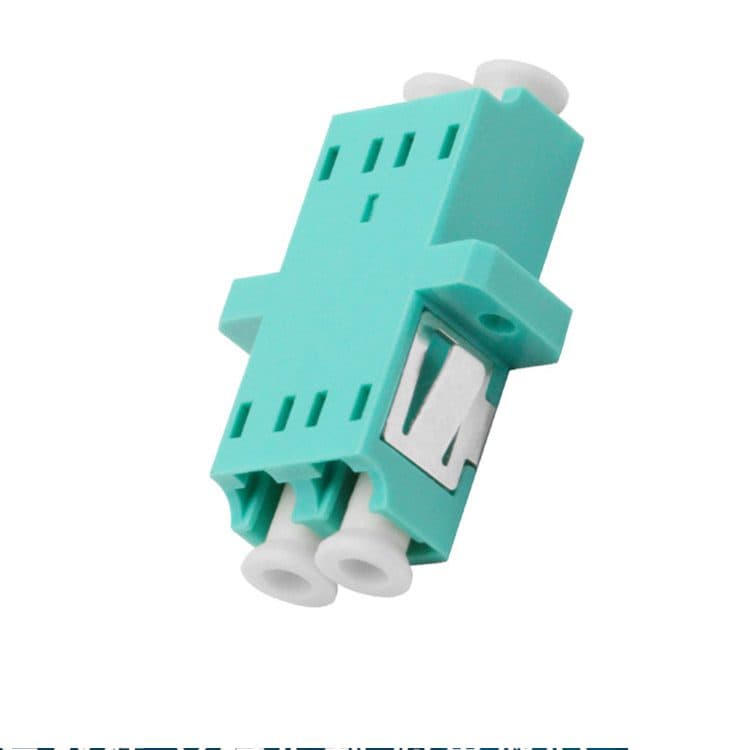

LC Duplex Aqua Adapter with Flange
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
High-Density LC Duplex Adapter for Demanding Network Environments
Telhua's LC Duplex Aqua Adapter with Flange is engineered to deliver maximum port density and reliable performance in high-capacity fiber optic installations. Designed for data centers, telecommunications networks, and enterprise backbones, this adapter ensures precise alignment and low insertion loss for consistent signal integrity.
Key Features and Benefits
- Enhanced Port Density: The compact flange design allows for tighter stacking in patch panels and enclosures, maximizing rack space utilization without compromising accessibility.
- Superior Reliability: Precision-machined zirconia ceramic sleeves provide consistent fiber alignment, minimizing insertion loss and back reflection for stable, long-term performance.
- Streamlined Installation: The intuitive push-pull mechanism and color-coded aqua housing enable quick, error-free connections, reducing deployment time and labor costs.
- Robust Construction: Built with durable, flame-retardant materials to withstand demanding environmental conditions and frequent mating cycles.
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Type | LC Duplex |
| Interface | Simplex to Simplex |
| Insertion Loss | ≤ 0.2 dB typical |
| Return Loss | ≥ 50 dB (PC), ≥ 60 dB (UPC), ≥ 65 dB (APC) |
| Operating Temperature | -40°C to +85°C |
| Flammability Rating | UL94V-0 |
| Compliance | IEC 61754-20, TIA/EIA-604-10, RoHS |
Telhua Engineer's Tip
For optimal performance in high-vibration environments, ensure the adapter flange is securely mounted using all provided fastener points. This prevents micro-movement that can gradually increase insertion loss over time. When cleaning, use only approved fiber optic cleaning tools on the ceramic sleeves—compressed air can introduce static charge that attracts contaminants.
Applications
This adapter is ideal for high-density fiber distribution frames, modular patch panels, wall outlets, and equipment interfaces where space optimization and reliable connectivity are critical. It supports both single-mode and multimode applications across telecommunications, enterprise networking, and industrial automation systems.
