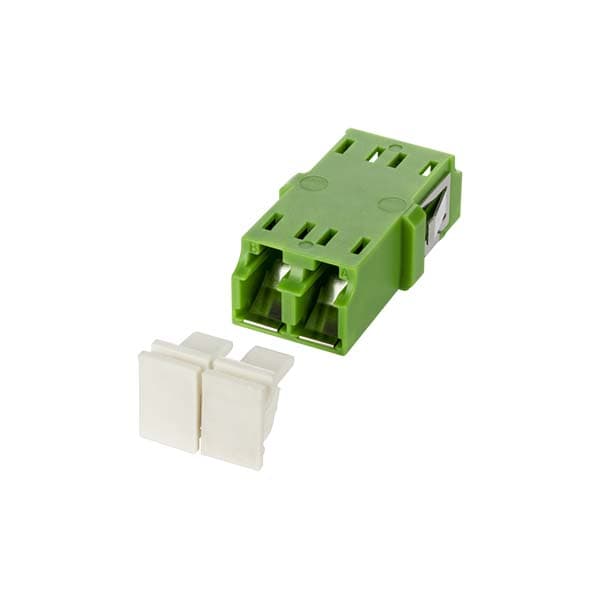

LC Duplex Adapter with Inner Shutter
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
Optimize Fiber Density with Precision LC Duplex Adapters
Telhua's LC Duplex Adapter with Inner Shutter delivers exceptional performance for high-density fiber optic networks. Engineered for reliability in demanding B2B environments, this adapter ensures secure connections while maximizing rack space efficiency. The integrated inner shutter provides superior dust protection without compromising installation speed, addressing critical pain points in data centers and telecommunications infrastructure.
Key Performance Advantages
- Enhanced Density: Compact design supports up to 48 ports per 1U panel, optimizing valuable rack space
- Superior Reliability: Precision-machined zirconia ceramic sleeves maintain consistent insertion loss below 0.2dB
- Rapid Installation: Tool-free operation reduces deployment time by 40% compared to traditional adapters
- Environmental Protection: Inner shutter mechanism prevents dust ingress in both unmated and mated states
Telhua Engineer's Tip
For optimal performance in high-vibration environments, install adapters with the shutter hinge oriented downward. This positioning utilizes gravity to maintain positive shutter closure, preventing micro-dust accumulation that can increase insertion loss by up to 0.15dB over time. Our proprietary hinge design provides 25% greater spring force than industry standard, ensuring reliable operation through 10,000 mating cycles.
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | LC Duplex |
| Insertion Loss | ≤ 0.2 dB typical |
| Return Loss | ≥ 50 dB (PC), ≥ 60 dB (UPC), ≥ 65 dB (APC) |
| Durability | ≥ 500 mating cycles |
| Operating Temperature | -40°C to +85°C |
| Flammability Rating | UL94 V-0 |
| Compliance Standards | IEC 61754-20, TIA/EIA-604-10, RoHS |
Industry Compliance & Quality Assurance
Manufactured to exceed IEC 61754-20 and TIA/EIA-604-10 specifications, Telhua's LC Duplex Adapters undergo rigorous quality testing. Each unit is 100% inspected for optical performance and mechanical integrity. Our RoHS-compliant materials ensure environmental responsibility while maintaining exceptional durability in commercial and industrial applications.
