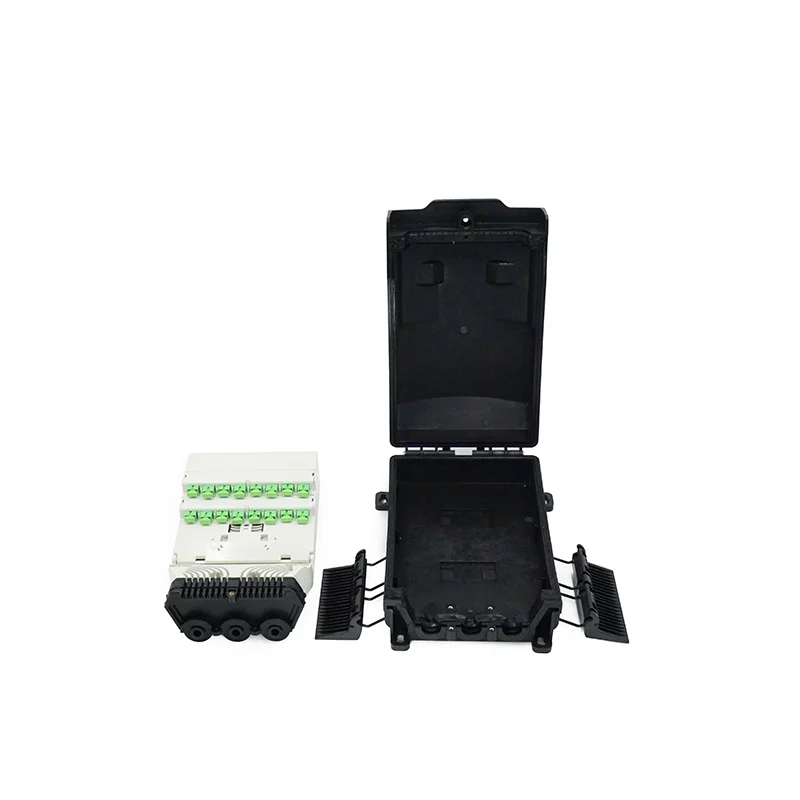

IP68 16 port fiber optic terminal distribution box
Product Parameters
- Indoor / Outdoor:Outdoor
- Material:Plastic
- Lockable:Yes
- Outdoor Connector:No
High-Density Fiber Optic Distribution Solution
Engineered for demanding network environments, the Telhua IP68 16-port fiber optic terminal distribution box provides a robust, sealed termination point for fiber optic cables. This unit is designed to maximize port density while ensuring long-term reliability and protection against harsh conditions, directly addressing critical infrastructure challenges in telecommunications, enterprise networks, and industrial applications.
Key Features for Network Professionals
Superior Environmental Protection
With an IP68 rating, this distribution box offers complete dust-tight protection and can withstand continuous immersion in water under specified conditions. This makes it ideal for outdoor installations, underground vaults, or any location exposed to moisture and particulate matter.
Optimized Port Density and Management
The compact 16-port design allows for efficient use of space in crowded network cabinets or enclosures. Integrated cable management features, including strain relief and routing guides, ensure organized fiber routing, reducing bend radius violations and simplifying maintenance.
Rapid Deployment and Service
A tool-less access design enables quick installation and reconfiguration. The modular tray system allows technicians to pre-terminate fibers off-site, dramatically reducing on-site installation time and minimizing network downtime during upgrades or repairs.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Model | TH-FDB-16-IP68 |
| Number of Ports | 16 (SC/LC/ST adapters available) |
| Ingress Protection | IP68 |
| Material | Engineering-grade ABS/PC blend |
| Operating Temperature | -40°C to +85°C |
| Dimensions (HxWxD) | 280 x 220 x 120 mm |
| Cable Entry/Exit | 4 x PG16 glands (included) |
| Fiber Capacity | Up to 24 fibers (depending on cable type) |
| Standards Compliance | IEC 61753-1, TIA/EIA-568, RoHS |
Telhua Engineer's Tip
For optimal performance in fluctuating temperature environments, allow a service loop of approximately 30cm inside the box before termination. This accommodates thermal expansion and contraction of the fiber cable, preventing stress on the splice or connector that can lead to increased insertion loss or physical damage over time. This practice is particularly critical when transitioning between indoor and outdoor environments.
Standards and Compliance
This fiber optic distribution box is manufactured in compliance with international standards including IEC 61753-1 for environmental performance, TIA/EIA-568 for telecommunications infrastructure, and RoHS directives for hazardous substance restriction. These certifications ensure interoperability, safety, and environmental responsibility in global deployments.
