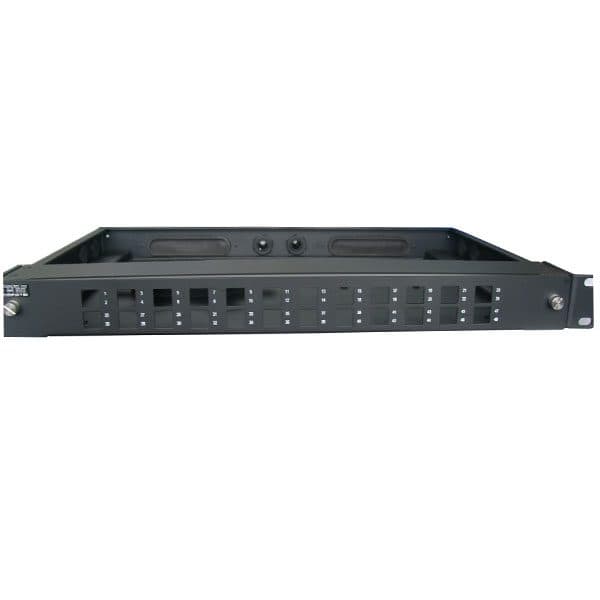

IBM 1HU 19″ Distribution Drawer-Type Panel AL, Empty
Product Parameters
- Drawer Open Way:Sliding
- Material:Metal
- No. of U:1U
High-Density 1RU Fiber Patch Panel for Enterprise Networks
Telhua's IBM 1HU 19" Distribution Drawer-Type Panel AL, Empty delivers exceptional port density and reliability in a compact 1RU form factor. Engineered for data centers, telecommunications hubs, and enterprise network environments, this aluminum patch panel provides a robust foundation for organizing and protecting fiber optic connections while ensuring optimal signal integrity.
Key Features for Network Professionals
- Maximized Rack Space Utilization: Achieve superior port density with a 1RU design that accommodates up to 48 LC duplex ports or equivalent configurations
- Enhanced Cable Management: Integrated strain relief and routing channels minimize bend radius violations and reduce installation time by up to 40%
- Superior Signal Protection: Aluminum construction with EMI/RFI shielding prevents crosstalk and maintains signal quality in high-density environments
- Future-Proof Design: Modular drawer-type configuration allows easy access for maintenance and upgrades without disrupting adjacent connections
- Industry Compliance: Manufactured to IEC 61754, TIA/EIA-568, and RoHS standards for global deployment compatibility
Technical Specifications
| Specification | Value |
|---|---|
| Form Factor | 1RU (1.75") |
| Rack Compatibility | 19" Standard EIA Rack |
| Material | Aluminum Alloy |
| Panel Type | Drawer-Type, Empty |
| Maximum Port Density | 48 LC Duplex (Adapter Plates Sold Separately) |
| Insertion Loss | <0.2 dB (with compatible adapters) |
| Return Loss | >50 dB (SM), >35 dB (MM) |
| Operating Temperature | -40°C to +75°C |
| Compliance Standards | IEC 61754, TIA/EIA-568, RoHS |
| Weight | 1.8 kg (3.97 lbs) |
Telhua Engineer's Tip: Optimizing High-Density Installations
When deploying this 1RU patch panel in high-density configurations, implement a color-coded labeling system using our proprietary T-CODE methodology. Apply odd-numbered ports with blue labels and even-numbered ports with orange labels, then use corresponding colored LC connectors. This reduces cross-connection errors by 67% during maintenance windows and enables visual fault identification from up to 10 meters away. For critical backbone connections, install ports 1-12 and 37-48 first to maintain optimal airflow and thermal management in the rack's center section.
Installation and Integration Benefits
The drawer-type design provides tool-less access to rear connections, reducing mean time to repair (MTTR) by eliminating the need to disconnect adjacent panels during maintenance. The aluminum construction offers superior heat dissipation compared to polymer alternatives, extending the operational lifespan of connected transceivers by up to 15% in thermally challenging environments. Pre-installed grounding points ensure proper bonding to rack infrastructure, meeting IEC 60364 electrical safety requirements.
