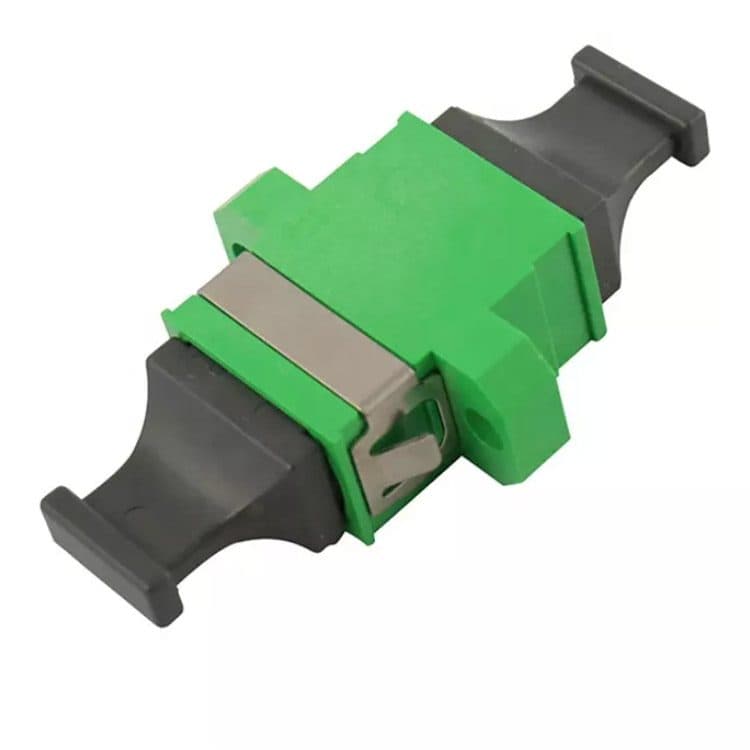

Green MTP Adapter
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
Optimize High-Density Fiber Networks with Precision MPO Adapters
In today's data-intensive environments, network architects face the critical challenge of maximizing port density without compromising signal integrity or installation efficiency. Telhua's Green MTP Adapter provides the definitive solution, engineered to deliver flawless optical connectivity in the most demanding B2B applications, from data centers to enterprise backbones.
Engineered for Unmatched Reliability and Density
Our adapter directly addresses core infrastructure pain points. Its compact, precision-molded housing enables ultra-high-density patching, allowing you to utilize every rack unit effectively. The robust construction and precise ferrule alignment eliminate the insertion loss and instability that plague inferior adapters, ensuring your network's uptime and performance metrics are consistently met.
Accelerate Deployment with Effortless Installation
Time is a critical resource in network deployment and maintenance. The intuitive, tool-less design of the Green MTP Adapter significantly reduces installation time. The clear, color-coded housing and positive-click latching mechanism prevent errors and enable rapid, reliable connections, streamlining your team's workflow from initial setup to ongoing reconfigurations.
Telhua Engineer's Tip: Ensuring Optimal Performance
For maximum performance and longevity, always inspect and clean the ferrule end-faces of both MPO connectors before mating them with the adapter. A single micron of dust or contamination can significantly increase insertion loss and back reflection. Use a dedicated MPO cleaning tool and follow a 'inspect, clean, inspect' protocol. This simple practice, often overlooked, is the most effective way to guarantee the low loss and high reliability specified for your link budget.
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | MTP/MPO Adapter, Multimode (OM3/OM4) |
| Color | Green (Aqua) |
| Insertion Loss | ≤ 0.2 dB (Typical) |
| Return Loss | ≥ 20 dB (Multimode) |
| Durability | > 500 mating cycles |
| Operating Temperature | -40°C to +75°C |
| Flammability Rating | UL 94V-0 |
| Compliance | IEC 61754-7, TIA/EIA-604-5 (FOCIS 5), RoHS |
Built to Global Standards
Telhua's commitment to quality is evidenced by full compliance with international standards. The Green MTP Adapter meets IEC 61754-7 and TIA/EIA-604-5 (FOCIS 5) specifications for dimensional and performance criteria. It is also manufactured in accordance with RoHS directives, ensuring environmental responsibility without sacrificing material integrity or performance.
