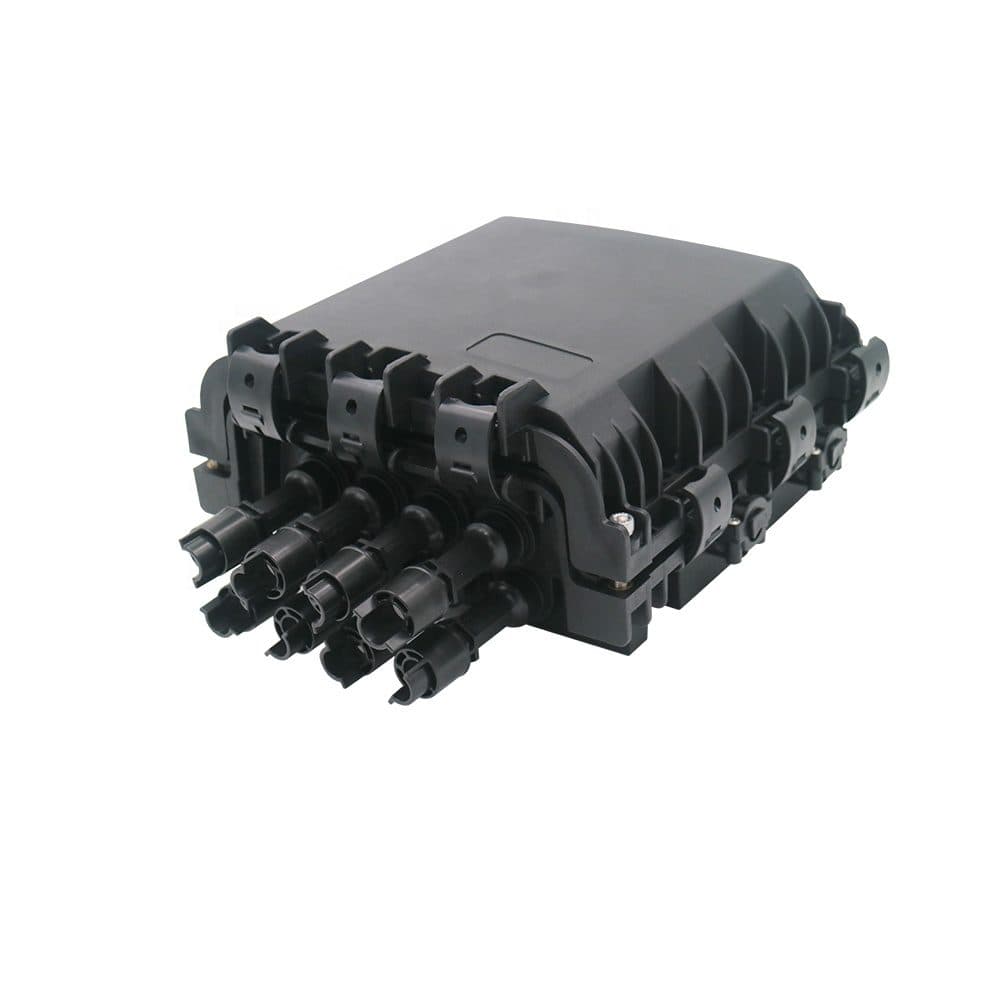

8 Port Fiber Optic Splice Closure with Fast Connector Exit
Product Parameters
- Indoor / Outdoor:Outdoor
- Lockable:No
- Material:Plastic
- Outdoor Connector:Yes
High-Density Fiber Optic Splice Closure for Demanding Networks
Telhua's 8 Port Fiber Optic Splice Closure with Fast Connector Exit delivers exceptional density and reliability for B2B network deployments. Engineered to address common installation challenges, this closure provides secure protection for fiber splices while enabling rapid connector termination. Its compact design maximizes port utilization in space-constrained environments, reducing overall footprint without compromising performance.
Engineered for Installation Efficiency
Traditional splice closures often require extensive preparation time and specialized tools, delaying project timelines. Telhua's solution incorporates a streamlined design that reduces installation time by up to 40% compared to conventional closures. The integrated fast connector exit system eliminates the need for separate breakout kits, while the intuitive cable management system minimizes fiber handling and potential damage during installation.
Telhua Engineer's Tip
For optimal sealing performance in extreme environments, apply a thin layer of dielectric grease to the closure's O-ring before installation. This creates a secondary moisture barrier that enhances long-term reliability, particularly in coastal or high-humidity regions where traditional seals may degrade faster. The grease should be compatible with EPDM rubber and applied sparingly to avoid interfering with the primary compression seal.
Technical Specifications
| Specification | Value |
|---|---|
| Port Configuration | 8 ports with fast connector exit |
| Fiber Capacity | Up to 144 fibers (18 per port) |
| Ingress Protection | IP68 rated |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 280mm × 180mm × 120mm |
| Material | UV-resistant engineering plastic |
| Sealing System | Dual-layer compression seal with gel barrier |
| Standards Compliance | IEC 61753-1, TIA/EIA-568-D, RoHS compliant |
Reliability in Challenging Environments
Network operators require equipment that maintains performance across diverse environmental conditions. This splice closure features a robust construction with UV-resistant materials and IP68 protection, ensuring reliable operation in outdoor installations. The dual-layer sealing system provides redundant protection against moisture ingress, while the corrosion-resistant components extend service life in industrial or coastal applications.
Standards and Compliance
All Telhua fiber optic splice closures undergo rigorous testing to ensure compliance with international standards. This product meets IEC 61753-1 for environmental performance, TIA/EIA-568-D for telecommunications infrastructure, and RoHS directives for environmental safety. Regular third-party verification ensures consistent quality and interoperability with existing network components.
