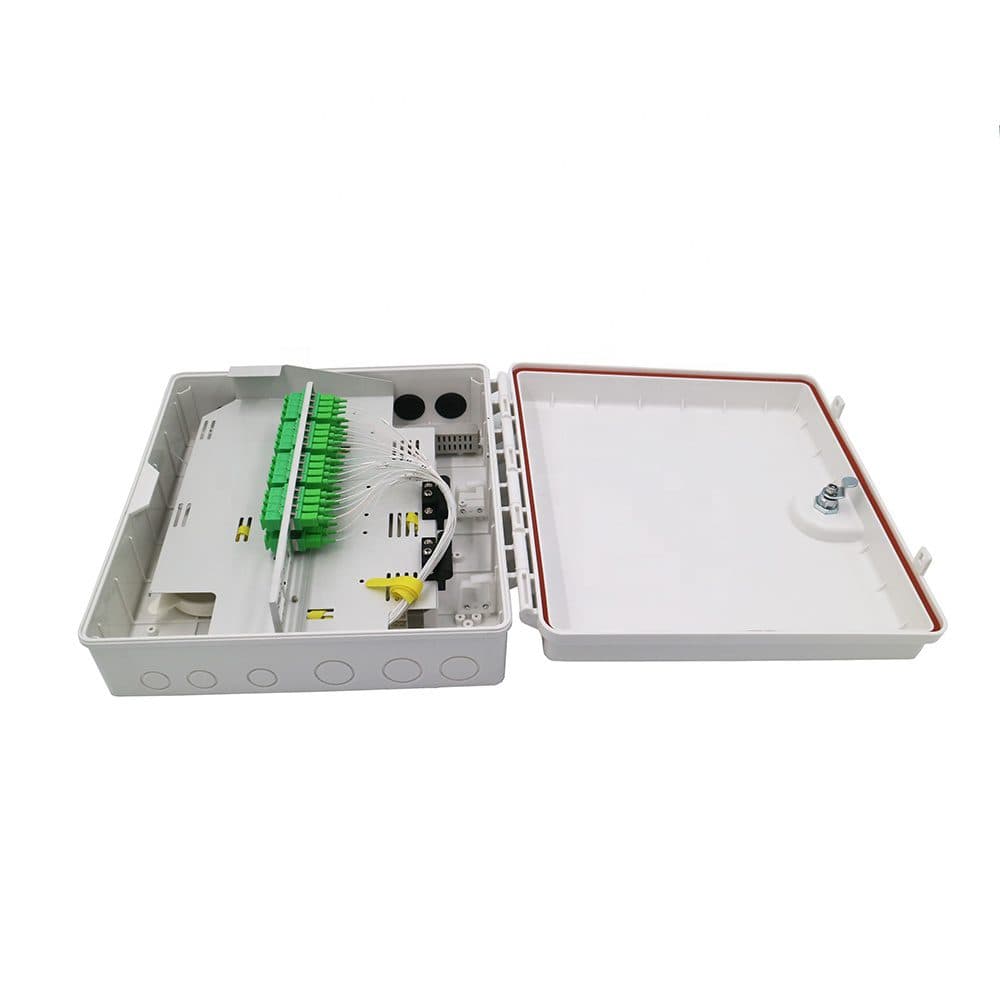

FTTH 48 Core Fiber Access Terminal Box
Product Parameters
- Indoor / Outdoor:Outdoor
- Lockable:Yes
- Material:Plastic
- Outdoor Connector:No
High-Density Fiber Optic Distribution Solution
Telhua's FTTH 48 Core Fiber Access Terminal Box delivers exceptional port density and reliability for demanding fiber-to-the-home deployments. Engineered to streamline network expansion, this distribution box minimizes installation time while maximizing fiber management efficiency.
Addressing Critical B2B Deployment Challenges
Network operators face increasing pressure to deploy high-capacity fiber infrastructure rapidly without compromising reliability. Our terminal box directly addresses these pain points:
- Space Optimization: 48 ports in a compact footprint reduce cabinet space requirements by up to 40% compared to conventional solutions
- Installation Efficiency: Pre-terminated options and intuitive cable routing cut deployment time by approximately 30%
- Network Reliability: Enhanced sealing and strain relief mechanisms ensure consistent performance in diverse environmental conditions
- Future-Proof Design: Modular architecture supports seamless upgrades without service disruption
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Capacity | 48 cores |
| Connector Type | SC/APC, SC/UPC, LC/APC compatible |
| Insertion Loss | ≤0.2 dB |
| Return Loss | ≥55 dB (APC), ≥50 dB (UPC) |
| Operating Temperature | -40°C to +85°C |
| Ingress Protection | IP65 rated |
| Dimensions | 482mm × 280mm × 44mm (19" rack mount) |
| Material | UV-resistant engineering polymer |
| Standards Compliance | IEC 61753-1, TIA/EIA-568-C.3, RoHS compliant |
Telhua Engineer's Tip
For optimal performance in high-density deployments, implement a systematic fiber management approach: Route incoming and outgoing fibers through separate channels within the terminal box to minimize bend radius violations. This technique reduces microbend losses by up to 0.05 dB per connection point and significantly improves long-term reliability. Additionally, maintain a minimum 30mm bend radius for all fibers during installation to preserve optical performance throughout the product lifecycle.
