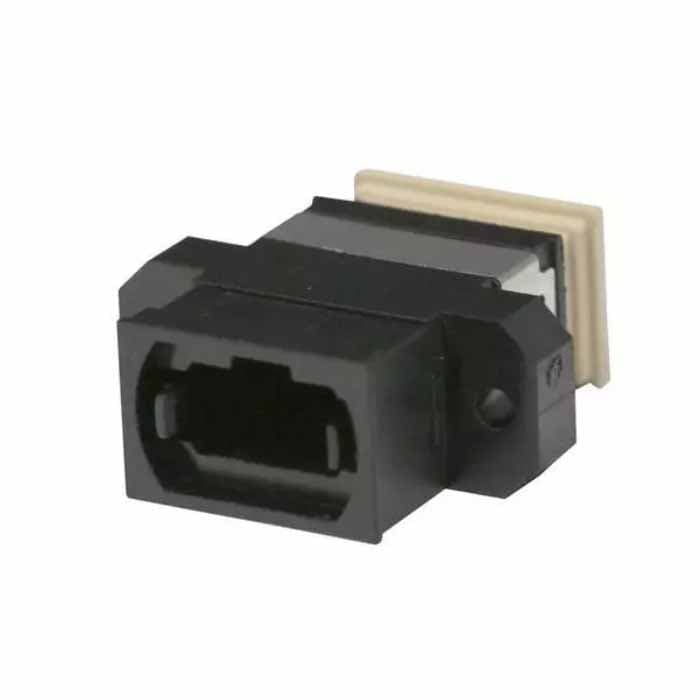

Fiber optic MPO adapter
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
High-Density MPO Fiber Optic Adapter Solutions
Telhua's MPO fiber optic adapter enables seamless, high-density connectivity for data centers and enterprise networks. Engineered for precision alignment and minimal insertion loss, this adapter supports 12-fiber and 24-fiber MPO connectors, ensuring reliable performance in demanding environments. Its robust design addresses common B2B challenges such as space constraints, installation efficiency, and long-term reliability, making it ideal for 40G/100G Ethernet, fiber channel, and other high-speed applications.
Key Features and Benefits
- Enhanced Density: Maximizes rack space with compact, high-port-count designs, reducing physical footprint and infrastructure costs.
- Superior Reliability: Precision-molded components and strict quality control ensure consistent signal integrity and durability, minimizing downtime.
- Rapid Installation: Tool-free or low-tool assembly options accelerate deployment, cutting labor time and operational disruptions.
- Interoperability: Compatible with industry-standard MPO connectors, facilitating easy integration into existing networks.
- Future-Proof Design: Supports emerging technologies like 400G Ethernet, protecting your investment against obsolescence.
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | MPO (Multi-fiber Push-On) |
| Fiber Count | 12 or 24 fibers |
| Insertion Loss | ≤ 0.2 dB typical |
| Return Loss | ≥ 50 dB (PC), ≥ 60 dB (APC) |
| Operating Temperature | -40°C to +85°C |
| Flammability Rating | UL94 V-0 |
| Compliance Standards | IEC 61754-7, TIA/EIA-604-18, RoHS |
Telhua Engineer's Tip
For optimal performance in high-density applications, ensure proper cleaning of MPO connector end-faces before mating. Use a dedicated MPO cleaning tool to remove contaminants, as even microscopic debris can increase insertion loss and cause signal degradation. Regularly inspect adapters for dust accumulation in the guide pin holes, as misalignment from buildup can lead to intermittent connectivity issues. Telhua's adapters feature anti-dust caps for protection during storage and transport.
Applications
This MPO adapter is designed for use in data centers, telecommunications networks, and enterprise cabling systems. It supports backbone and horizontal cabling for high-speed data transmission, including 40G/100G/400G Ethernet, fiber channel, and InfiniBand. Its compliance with IEC and TIA/EIA standards ensures interoperability in multi-vendor environments, while RoHS certification guarantees environmental safety.
