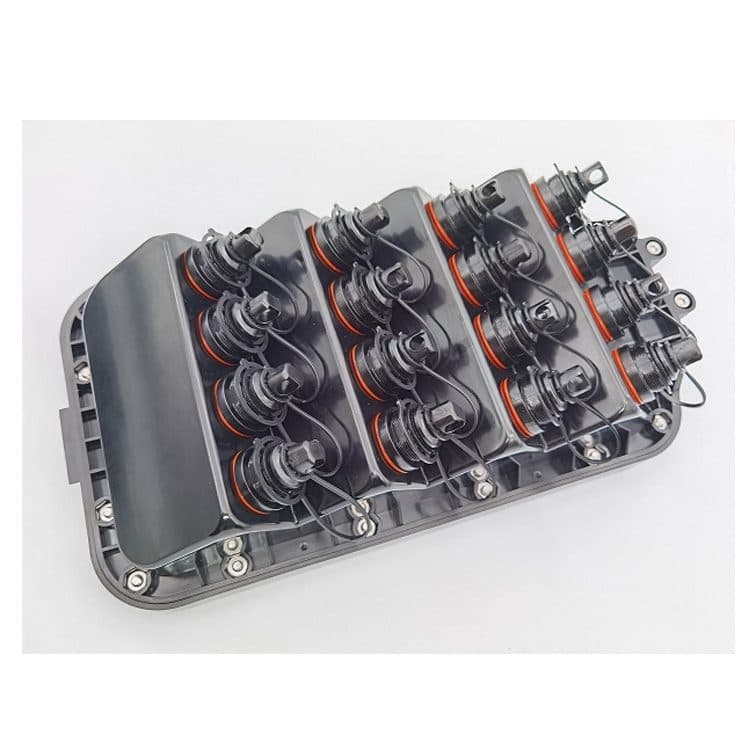

Fiber optic IP67 waterproof optitap box
Product Parameters
- Indoor / Outdoor:Outdoor
- Material:Plastic
- Outdoor Connector:Yes
- Lockable:No
Engineered for Demanding Outdoor Fiber Optic Deployments
Telhua's Fiber Optic IP67 Waterproof Optitap Box delivers robust protection and high-density connectivity for critical B2B network infrastructure. Designed to withstand harsh environmental conditions, this pre-terminated solution eliminates field splicing, accelerating deployment timelines while ensuring consistent optical performance. Our engineering team addresses common industry challenges—including space constraints, moisture ingress, and installation complexity—with a compact, factory-tested enclosure that maintains signal integrity in telecommunications, industrial automation, and smart city applications.
Key Features for Network Reliability
Superior Environmental Protection
With an IP67 ingress protection rating, the enclosure provides complete dust resistance and protection against temporary immersion in water up to 1 meter deep. The corrosion-resistant housing and sealed cable entry points ensure long-term performance in outdoor cabinets, pole mounts, and underground vaults.
High-Density Fiber Management
Optimize rack space with a design that supports up to 24 LC/APC or SC/APC connections in a compact footprint. The internal splice tray and slack storage system organize fibers efficiently, reducing bend radius violations and simplifying maintenance access.
Rapid Deployment Capability
Pre-terminated pigtails and factory-polished connectors eliminate on-site splicing, cutting installation time by up to 70% compared to field assembly. The tool-less access design allows technicians to complete connections without specialized equipment, minimizing deployment errors.
Telhua Engineer's Tip
For optimal performance in temperature-fluctuating environments, apply a thin layer of dielectric grease to the O-ring seals during installation. This prevents seal hardening in cold climates and maintains compression integrity during thermal cycling, extending the IP67 rating's effectiveness beyond standard industry lifespan expectations.
Technical Specifications
| Specification | Value |
|---|---|
| Ingress Protection | IP67 (IEC 60529) |
| Operating Temperature | -40°C to +85°C |
| Fiber Capacity | Up to 24 fibers |
| Connector Types | LC/APC, SC/APC (factory terminated) |
| Insertion Loss | ≤0.3 dB (TIA/EIA-568-C.3 compliant) |
| Return Loss | ≥55 dB (APC connectors) |
| Dimensions | 280 x 220 x 100 mm |
| Material | UV-resistant PC/ABS composite |
| Compliance | RoHS, IEC 61753-1, TIA/EIA-568 |
Industry Applications
- Telecommunications: FTTx distribution points, last-mile connectivity nodes
- Industrial Networks: Factory automation backbone connections, PLC system interlinks
- Smart Infrastructure: Traffic management systems, security camera networks, utility monitoring
- Data Centers: External cable plant terminations, campus network interconnections
