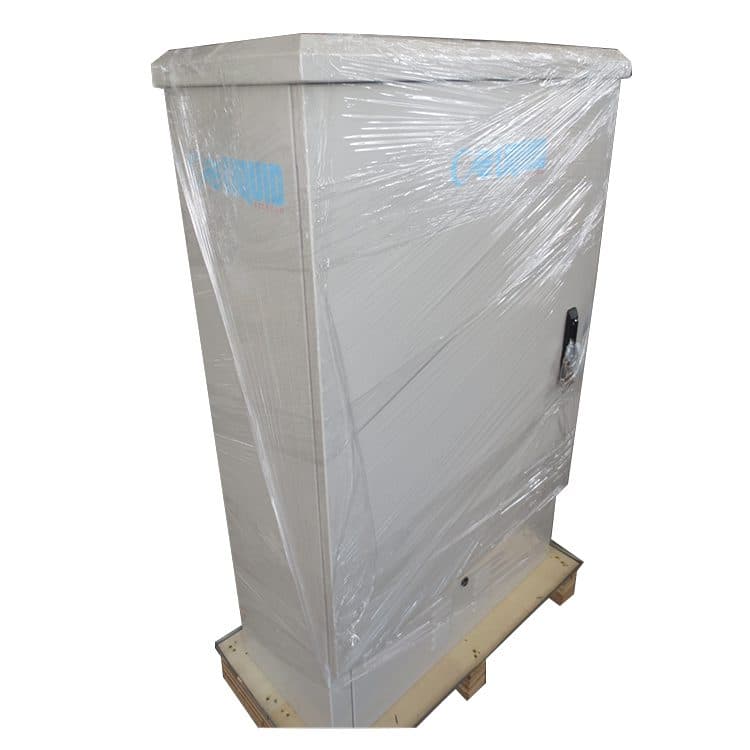

FDH OD 288 FIBER DISTRIBUTION HUB
Key Features
- High-quality materials and construction
- Industry standard compliance
- Rigorous quality testing
High-Density Fiber Distribution Hub for Demanding Networks
Telhua's FDH OD 288 Fiber Distribution Hub represents the pinnacle of fiber optic distribution technology, engineered to address the critical challenges faced by network operators in high-density environments. This robust distribution box provides exceptional port density while maintaining uncompromising reliability and installation efficiency.
Engineered for B2B Network Challenges
Network operators consistently face three primary challenges in fiber distribution: maximizing port density within limited space, ensuring long-term reliability in diverse environmental conditions, and reducing installation time to minimize operational disruption. The FDH OD 288 addresses these pain points through intelligent design and premium materials.
Key Performance Advantages
- Superior Density: Accommodates up to 288 fibers in a compact footprint, optimizing rack space utilization
- Enhanced Reliability: Industrial-grade construction with superior cable management prevents signal degradation
- Rapid Deployment: Tool-less access and intuitive organization reduce installation time by up to 40%
- Future-Proof Design: Modular architecture supports easy upgrades and capacity expansion
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Fiber Capacity | 288 fibers |
| Dimensions (H×W×D) | 4U, 482.6×482.6×200 mm |
| Operating Temperature | -40°C to +75°C |
| Relative Humidity | 5% to 95% non-condensing |
| Ingress Protection | IP65 rated |
| Connector Types Supported | LC, SC, FC, ST |
| Cable Entry Ports | 12×φ20 mm, 4×φ40 mm |
| Bend Radius Protection | ≥30 mm maintained radius |
| Material Construction | SPCC cold-rolled steel with powder coating |
Telhua Engineer's Tip: Optimizing Fiber Bend Management
For maximum signal integrity in high-density configurations, implement a systematic fiber routing approach. Begin with the longest fibers at the rear of the hub, routing them along the outer channels, while shorter fibers occupy inner channels. This creates natural bend radius protection and prevents micro-bending losses that can accumulate to 0.5 dB/km in improperly managed installations. Our integrated radius limiters are precisely calibrated to maintain the IEC 60793-1-47 specified minimum bend radius, but proper routing sequence is equally critical for optimal performance.
Compliance and Quality Assurance
The FDH OD 288 is manufactured in compliance with international standards including IEC 61753 for optical fiber passive components, TIA/EIA-568 for telecommunications infrastructure, and RoHS Directive 2011/65/EU for environmental safety. Each unit undergoes rigorous testing for insertion loss, return loss, and mechanical durability before shipment.
